Warm, Aesthetic Rooms

BASO's lighting system and Armstrong® Woodworks® ceilings are the perfect combination for creating aesthetic and warm wood ceiling layouts. PANO comes in three different widths so you can select the size that best fits your stylish wood ceilings. Woodworks® Ceilings with PANO create a pleasant atmosphere and add a unique warmth to your space.

Additionally, the wooden framing provides both sound-reduction and insulation for cool and warm climates. Harmonize your rooms by hiding away minor ceiling imperfections or wiring for a cleaner presentation. Armstrong® WoodWorks® combined with the PANO linear light fixtures make installation easy.

Ceiling Types

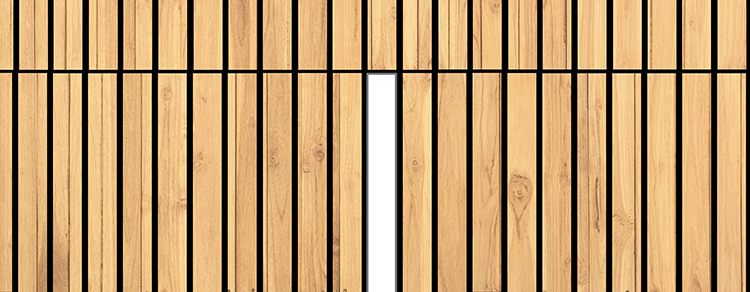

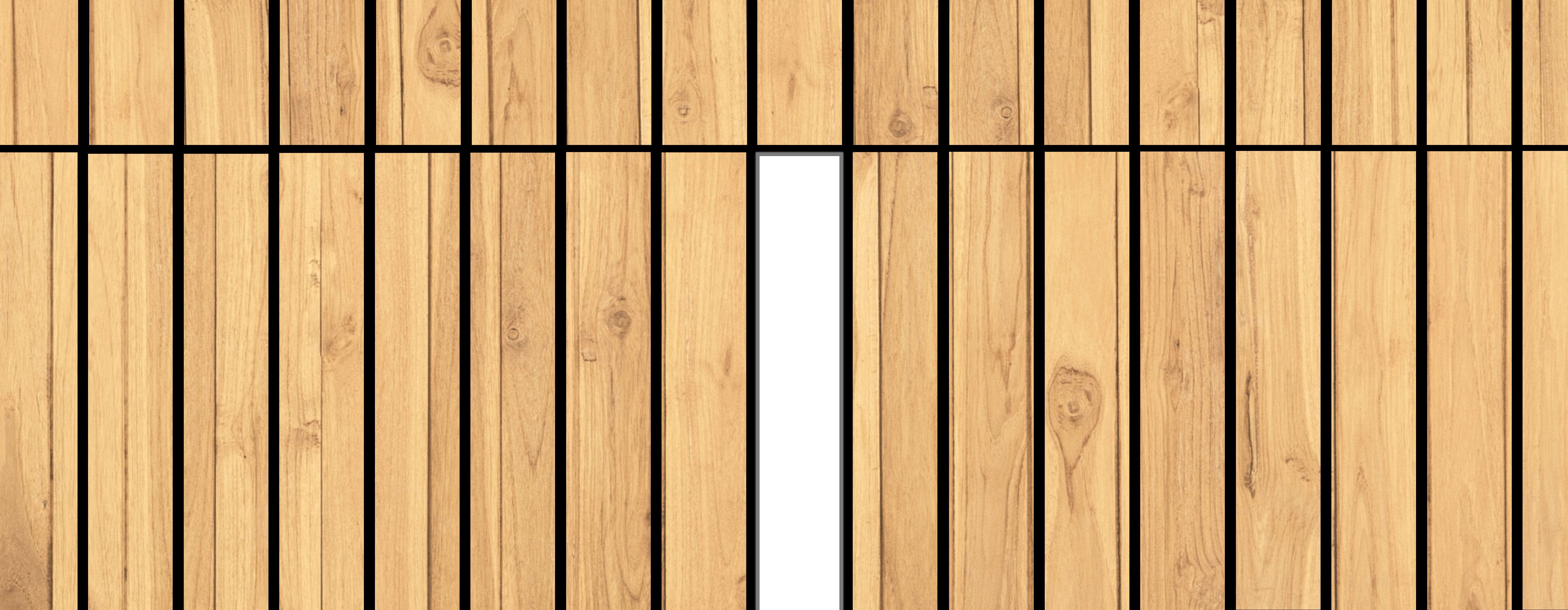

PANO comes in three sizes and can fit multiple wood ceiling finishes from grille and solid wood to linear and veneered panels. Integrate PANO into your next building project to add a natural touch to an interior.

Light-ceiling integration.

PANO comes in three different widths so you can select the size that best fits your needs. Each PANO matches the Woodworks® panels perfectly and can be operated with either an integrated or remote driver option.

Explore all of PANO's option and
specifications below.

Pano 2 Grille Classic
Cut sheet Configurator Instructions IES files REVIT files

Pano 2 Grille Classic

Pano 3.25 Grille Classic
Cut sheet Configurator Instructions IES files REVIT files

Pano 3.25 Grille Classic

Pano 5.25 Grille Classic
Cut sheet Configurator Instructions IES files REVIT files

Pano 5.25 Grille Classic

Pano 3.25 Grille Forte
Cut sheet Configurator Instructions IES files REVIT files

Pano 3.25 Grille Forte

Pano 5.25 Grille Forte
Cut sheet Configurator Instructions IES files REVIT files

Pano 5.25 Grille Forte

Pano 3.25 Linear Panels
Cut sheet Configurator Instructions IES files REVIT files

Pano 3.25 Linear Panels

Pano 5.25 Linear Panels
Cut sheet Configurator Instructions IES files REVIT files

Pano 5.25 Linear Panels

Pano 3.25 Veneered Panels
Cut sheet Configurator Instructions IES files REVIT files

Pano 3.25 Veneered Panels

Pano 5.25 Veneered Panels
Cut sheet Configurator Instructions IES files REVIT files

Pano 5.25 Veneered Panels

Pano 2 Tegular 9
Cut sheet Configurator Instructions IES files REVIT files

Pano 2 Tegular 9

Pano 3.25 Tegular 9
Cut sheet Configurator Instructions IES files REVIT files

Pano 3.25 Tegular 9

Pano 5.25 Tegular 9
Cut sheet Configurator Instructions IES files REVIT files

Pano 5.25 Tegular 9

Pano 2 Tegular 15
Cut sheet Configurator Instructions IES files REVIT files

Pano 2 Tegular 15

Pano 3.25 Tegular 15
Cut sheet Configurator Instructions IES files REVIT files

Pano 3.25 Tegular 15

Pano 5.25 Tegular 15
Cut sheet Configurator Instructions IES files REVIT files

Pano 5.25 Tegular 15

PANO Options

PANO comes in three sizes and a range of wood finishes.
All PANO finishes are also compatible with Armstrong® installation tools.

PANO 2"

2” wide, low profile fixture. Approved for installation in Armstrong®

WoodWorks® Grille Tegular 9/16

WoodWorks® Grille Tegular 15/16

WoodWorks® Grille Classic

WoodWorks® Grille Forte

Woodworks® Linear Solid Wood Panels

PANO 3.25"

3.25” wide, low profile fixture. Approved for installation in Armstrong®

Woodworks® Grille Tegular 9/16”

Woodworks® Grille Tegular

Woodworks® Grille

WoodWorks® Grille Forte

Woodworks® Linear Veneered Panels,

Woodworks® Linear Solid Wood Panels.

PANO 5.25"

5.25” wide, low profile fixture. Approved for installation in Armstrong®

Woodworks® Grille Tegular 9/16”

Woodworks® Grille Tegular 15/16”

Woodworks® Grille Classic

Woodworks® Grille Forte

Woodworks® Linear Veneered Panels

Woodworks® Linear Solid Wood Panels

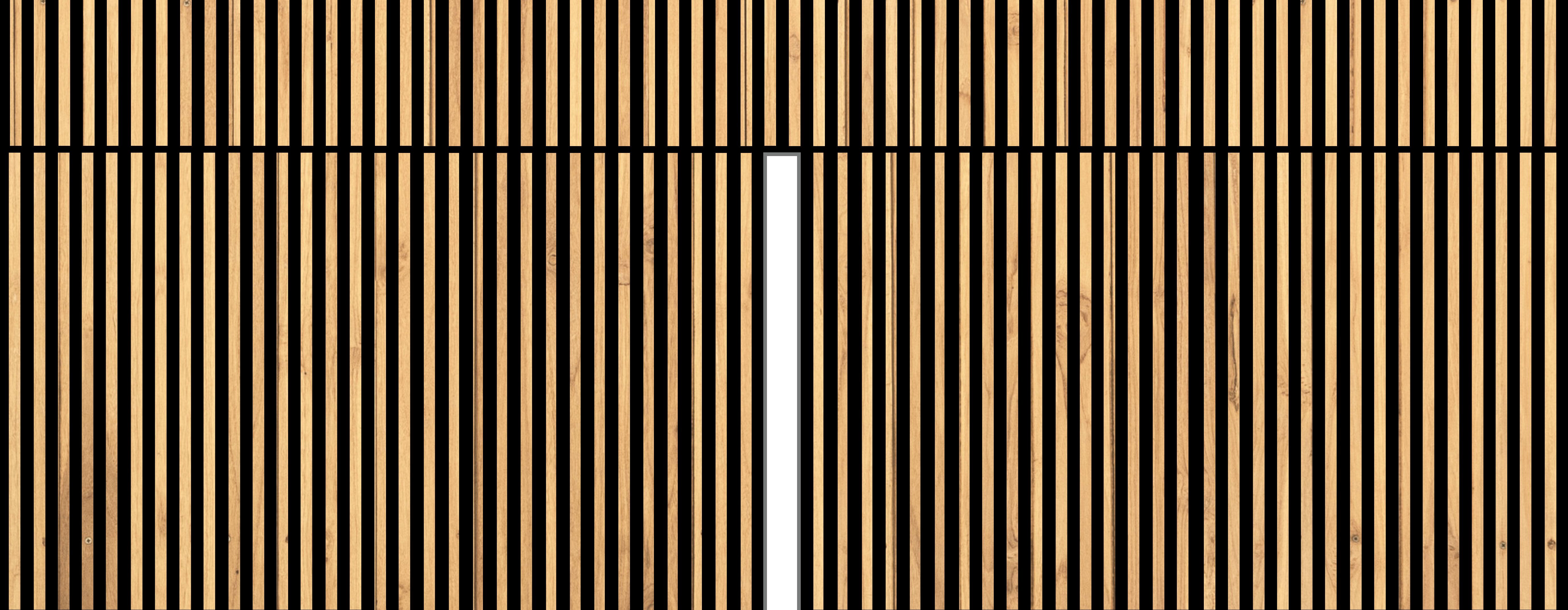

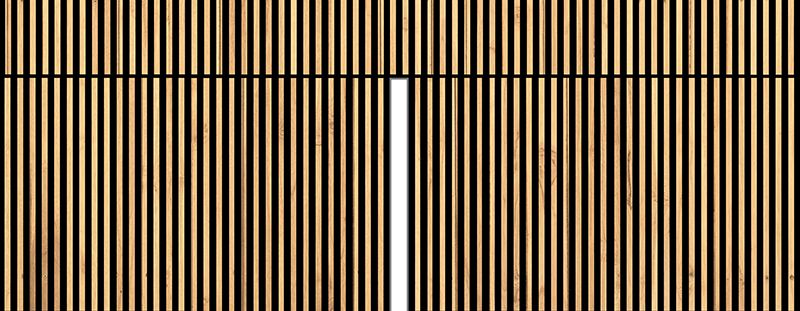

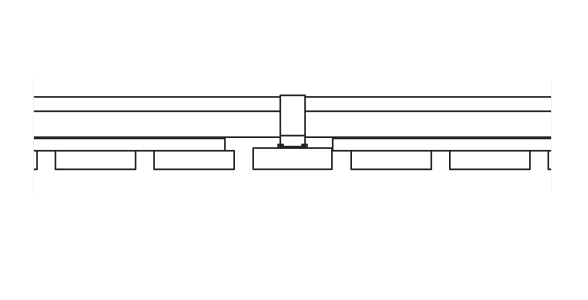

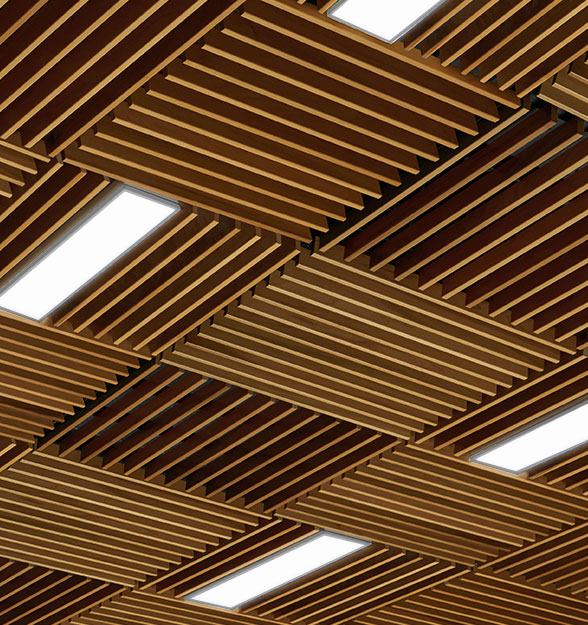

PANO Grille Forte and Grille Classic

PANO Grille Classic and Forte integrate with all three sizes of PANO and are effortlessly compatible with Armstrong Ceiling Solutions. PANO's linear design runs parallel with wood ceiling for a discreet, yet durable design.

Direct Light

The flush-mounted high-performance opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion.

The integrated direct lighting offers a glow that distributes evenly through the room around the fixture.

Our LED systems and Armstrong® ceilings are the perfect combination for creating aesthetic and warm wood ceiling layouts. The edge illuminated light guiding prism, combined with our opal cover allows brilliant peak values of
up to 128 lm/W.

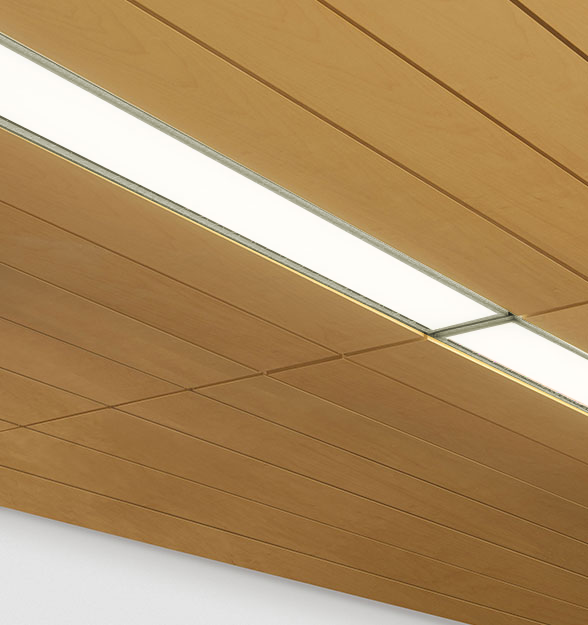

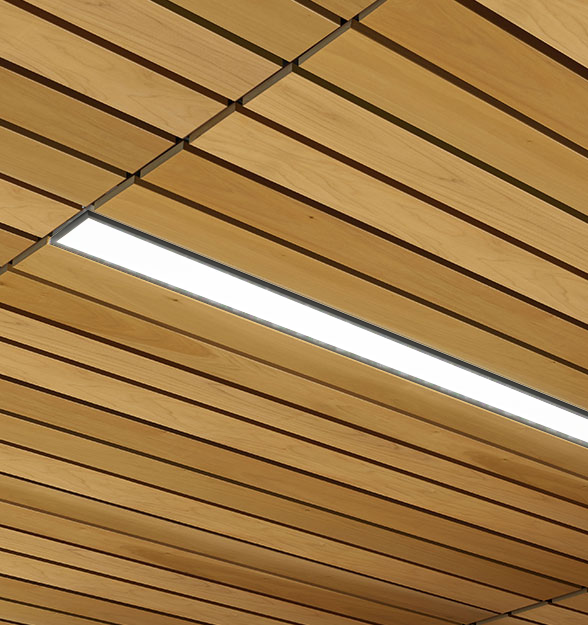

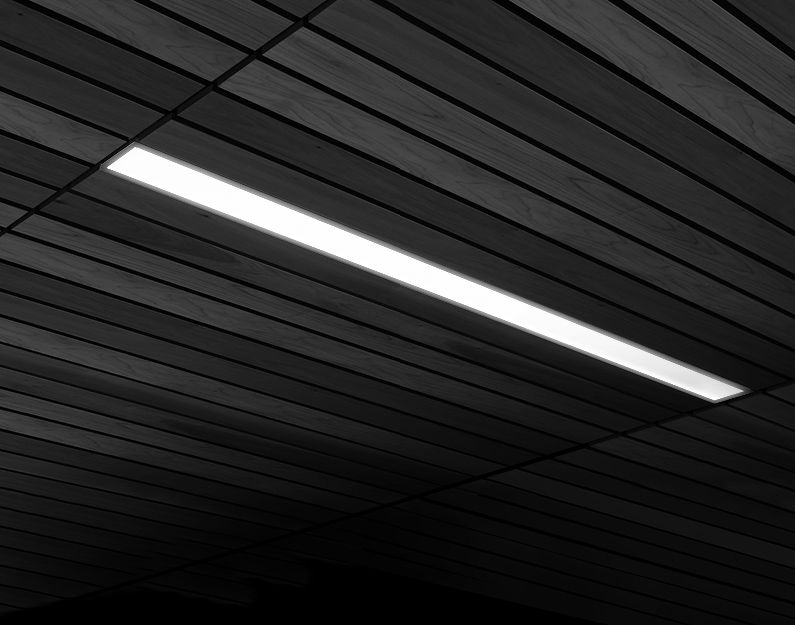

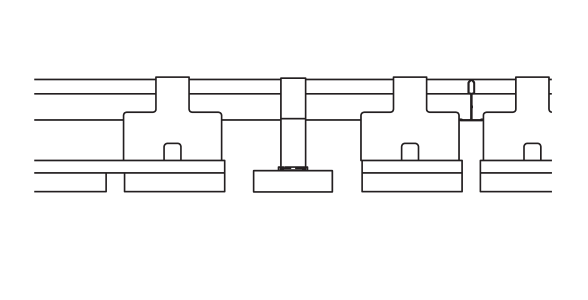

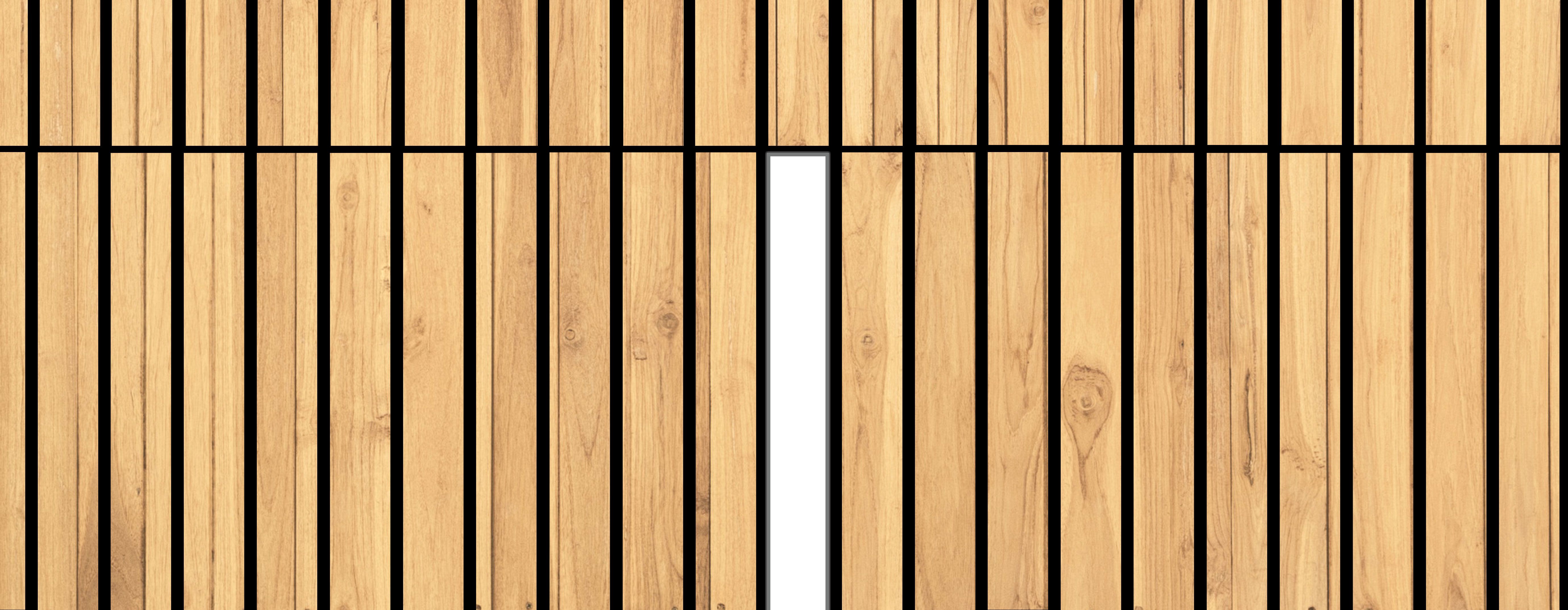

Linear Solid Wood Panels

A smooth wood panel solution that integrates with PANO 3.25 and 5.25.
This version creates a sleek wooden finish where PANO aligns flush with the wood ceiling seamlessly.

Opal lens

The flush-mounted high-performance opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion.

Direct light

The integrated direct lighting offers a direct glow that distributes evenly through the room around the fixture.

PANO 2"

2” wide, low profile fixture. Approved for installation in Armstrong®

WoodWorks® Grille Tegular 9/16,

WoodWorks® Grille Tegular 15/16,

WoodWorks® Grille

PANO 3.25"

3.25” wide, low profile fixture. Approved for installation in Armstrong®

Woodworks® Grille Tegular 9/16”,

Woodworks® Grille Tegular 15/16”,

Woodworks® Grille,

Woodworks® Linear Solid Wood and Linear Veneered Panels.

PANO 5.25"

5.25” wide, low profile fixture. Approved for installation in Armstrong®

Woodworks® Grille Tegular 9/16”,

Woodworks® Grille Tegular 15/16”,

Woodworks® Grille,

Woodworks® Linear Solid Wood and Linear Veneered Panels.

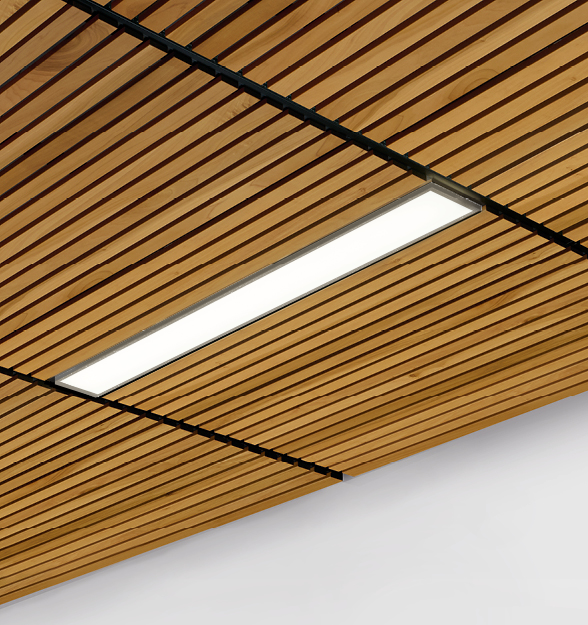

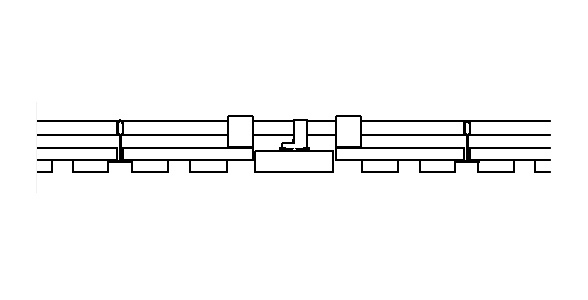

PANO Veneered Panels

PANO Veneered Panels provide the a veneered wood finish to your next building project. This option matches the specifications of the Linear Solid Wood Panel design, being avilable in two widths: PANO 3.25 and 5.25.

Refined technology

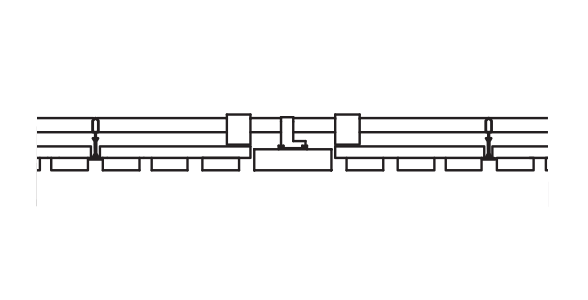

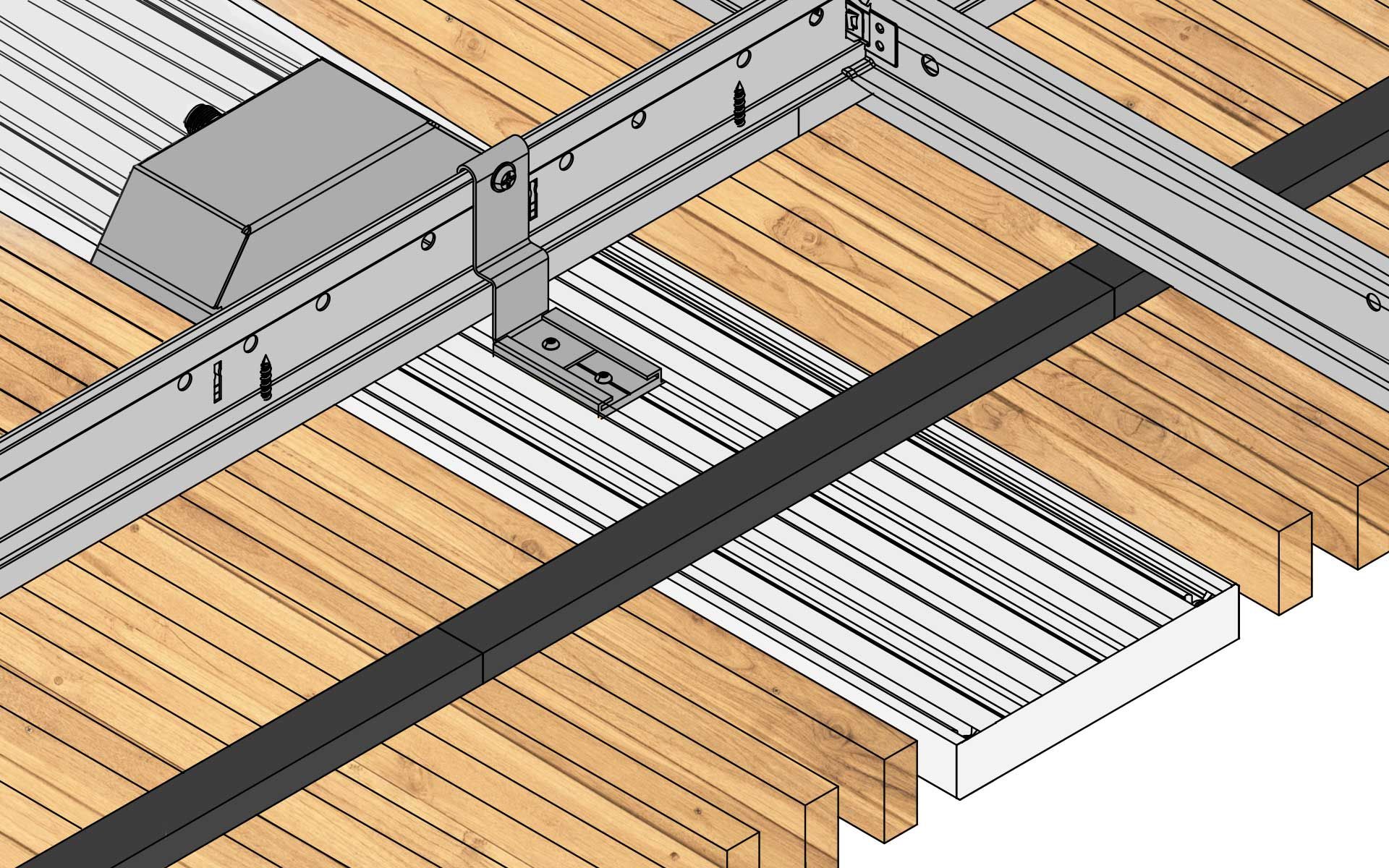

PANO works in tandem with Armstrong® Woodworks® products along with the impressive quality of BASO's LED technology to create seamless interiors. The diagram below explores the unique characteristics of PANO and
the Armstrong® Integrated Clip:

WOODWORKS® Grille

Designed exclusively in collaboration with Armstrong® to install easily in and match the panels of standard length

Armstrong® Woodworks® Grille,

Armstrong® Woodworks® Grille Tegular 9/16”,

Armstrong® Woodworks® Grille Tegular 15/16”,

Armstrong® Woodworks® Linear Veneered Panels,

 Armstrong® Woodworks® Linear Solid Wood Panels.

PANO

PANO integrated light available in 2", 3.25", and 5.25". PANO is designed to replace a full length of Woodworks ceiling panel. High Performance Opal flush mounted cover for uniform illumination and a total optical system efficiency of η = 80%.

PANO Integration Bracket

The PANO integration bracket is provided by us. It easily secures the Armstrong® Ceilings integrated lighting connection clip for quick and efficient mounting.

Prelude XL HD Main BEAM

The prelude grid is provided by Armstrong®.

Armstrong® Ceilings Integrated Light Connection Clip

The Integrated Light Connection Clip was designed by Armstrong® Ceilings to perfectly integrate the PANO lighting fixture into the specified ceiling types. Please contact your Armstrong® sales representative to purchase the Integrated Lighting Connection Clip for the specified ceiling.

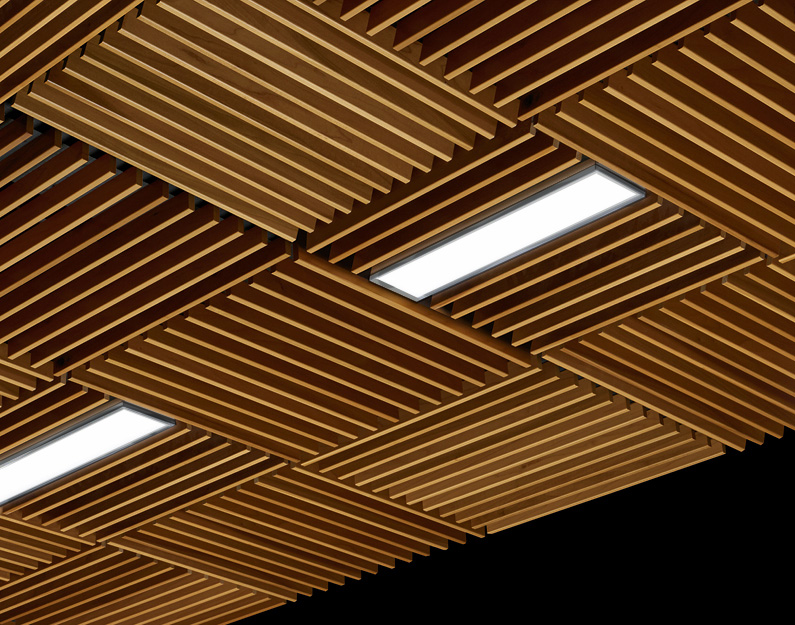

PANO Grille Tegular Panels

Tegular ceiling solutions can provide a significant amount of creativity and boldness to a ceiling solution and PANO Grille can provide that with the Tegular Panel option. It installs like PANO Grille and is available in all three widths.

Quick and easy electrical connection

integrated driver / remote mounting

Our integrated driver system gives you flexibility when needed. The driver housing can slide up or down the back side of the PANO to the perfect position. Alternatively, you can remove the driver housing entirely and mount it to a remote spot of your choice.

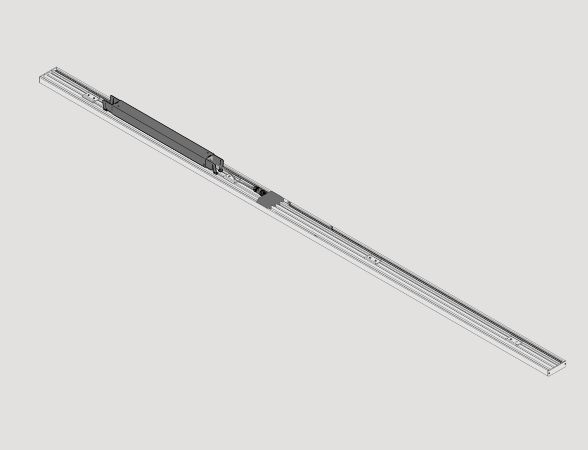

integrated driver

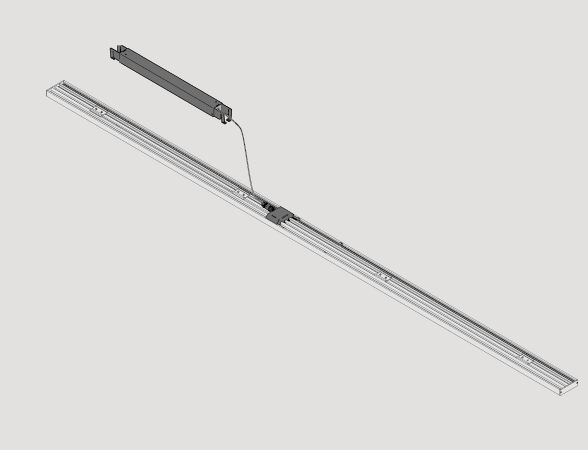

remote driver
