High performance, squared away

DOT-SQ is a compact lighting fixture that provides an elegant, seamless solution for rooms of any size and shape.

Small Light
Huge Statement

DOT-SQ is an elevated downlight that mixes performance and simplicity. It has an impressive output and multiple beam angles with a light that fits in your hand and can be
installed from below the ceiling.

Use DOT-SQ to create a seamless aesthetic that reflect modern architectural interiors.

Angles and Rotation

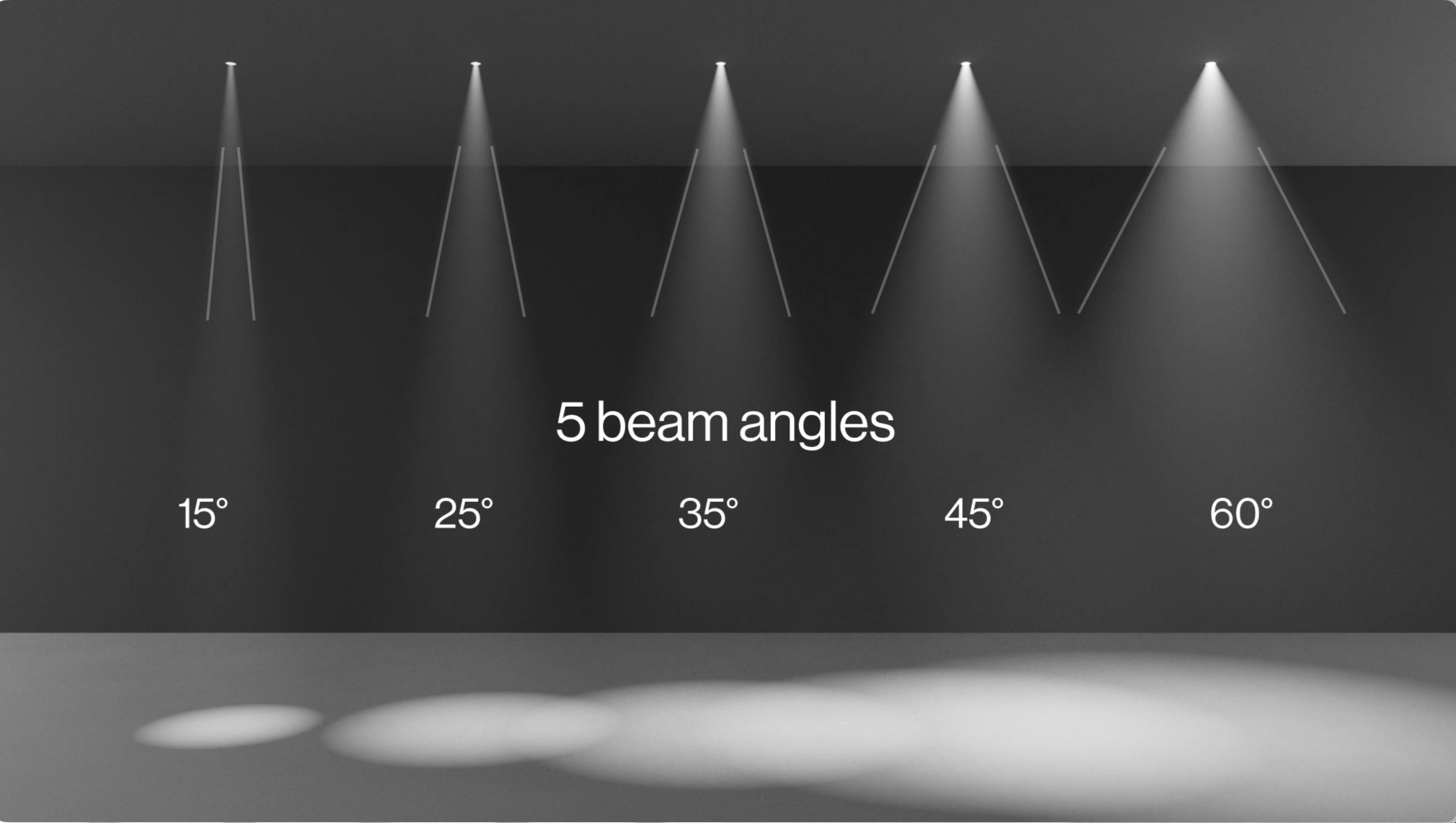

DOT has four beam angles to choose from with each aperture from a spot to a wide flood light, five in total across all three sizes. Along with the beam angles, DOT can be adjusted directly.

The downlight has a tiltable range of 30 degrees and can be rotated 360 degrees for customized interior lighting and accents.

Easy Assembly

DOT-SQ has 3-4 parts when disassembled making it easy to troubleshoot and even easier to build.

Low Ceiling Profile

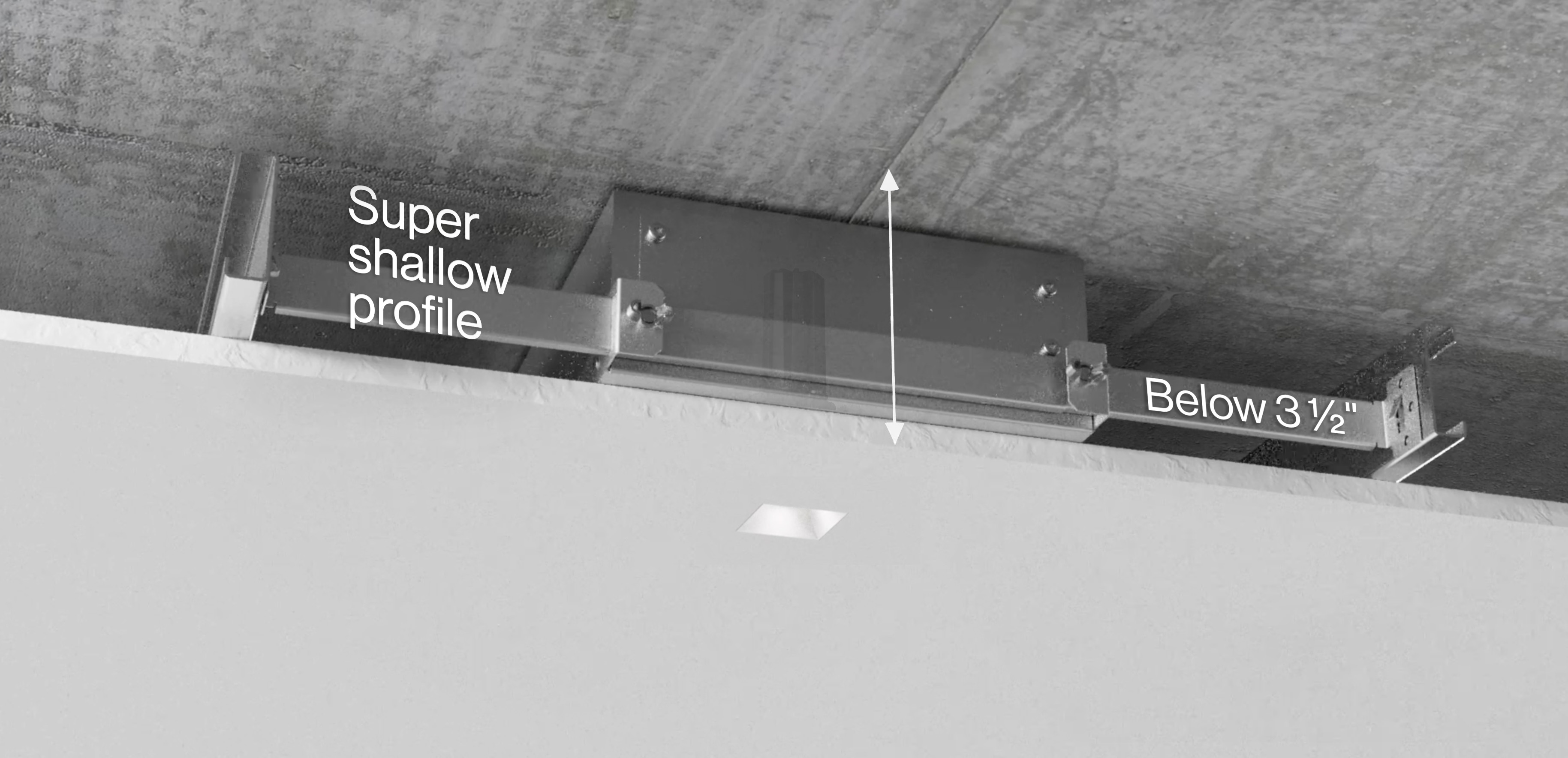

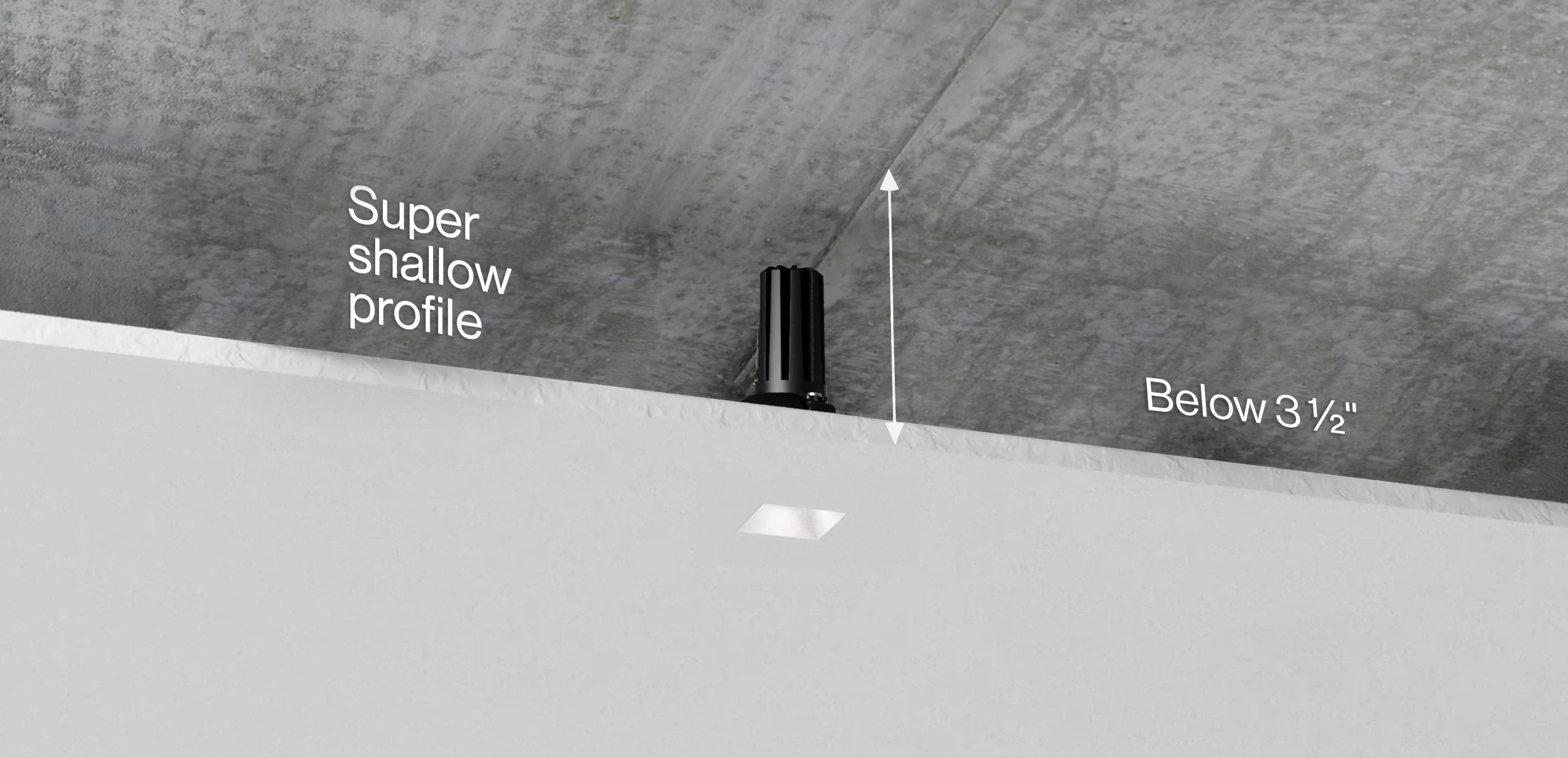

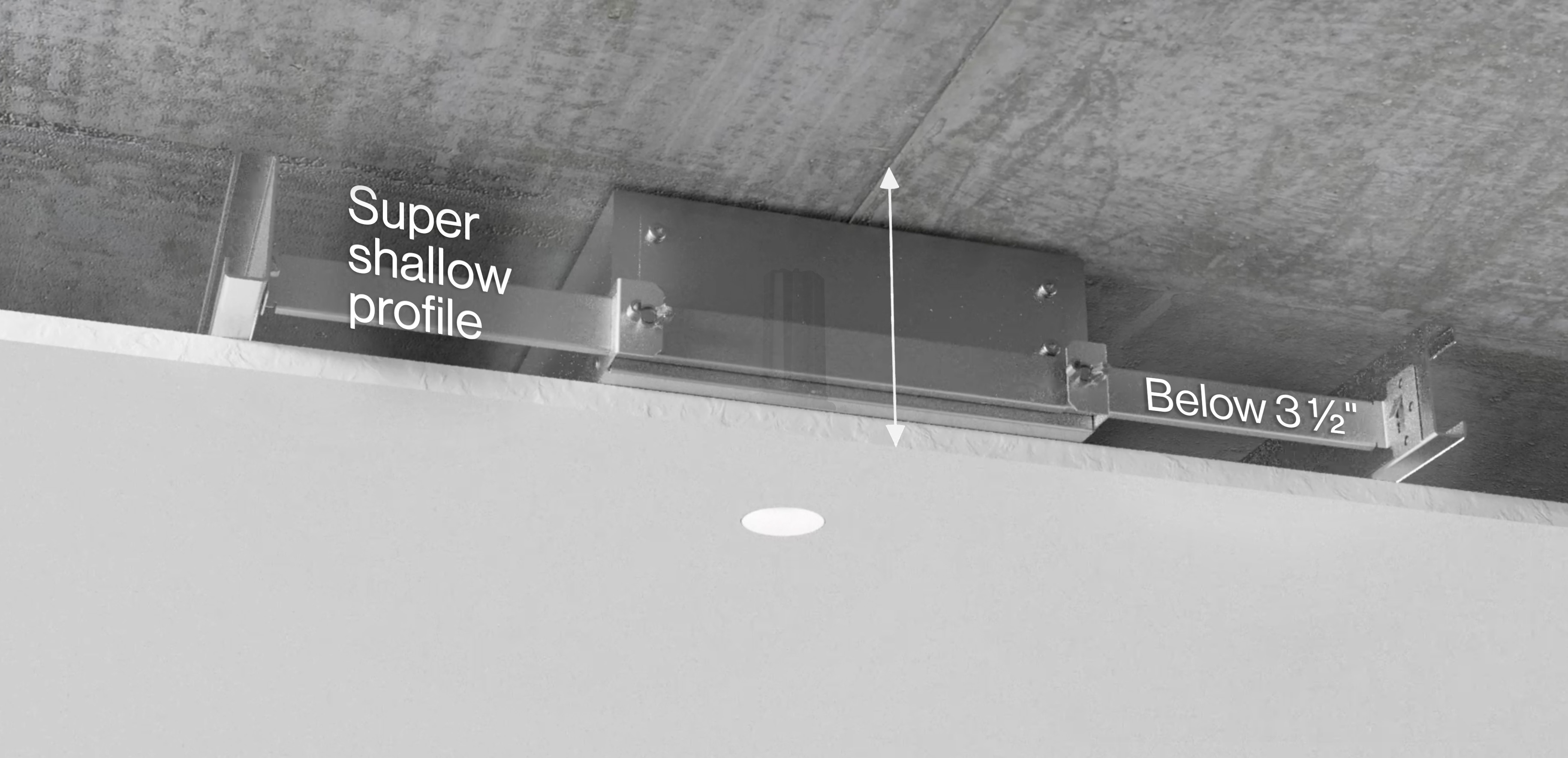

DOT’s low height clears a ceiling below 3 ½” even with IC housing. DOT can clear sprinkler systems, piping and subfloor drywall easily.

After wiring the downlight, insert it straight into the ceiling and spackle and paint for the finish.

Direct Light

The integrated direct lighting offers a direct glow that distributes evenly through the room around the fixture.

Configurations of DOT

DOT has over 20 configurations that range from 1.5 to 4.0 with trim and trimless options.

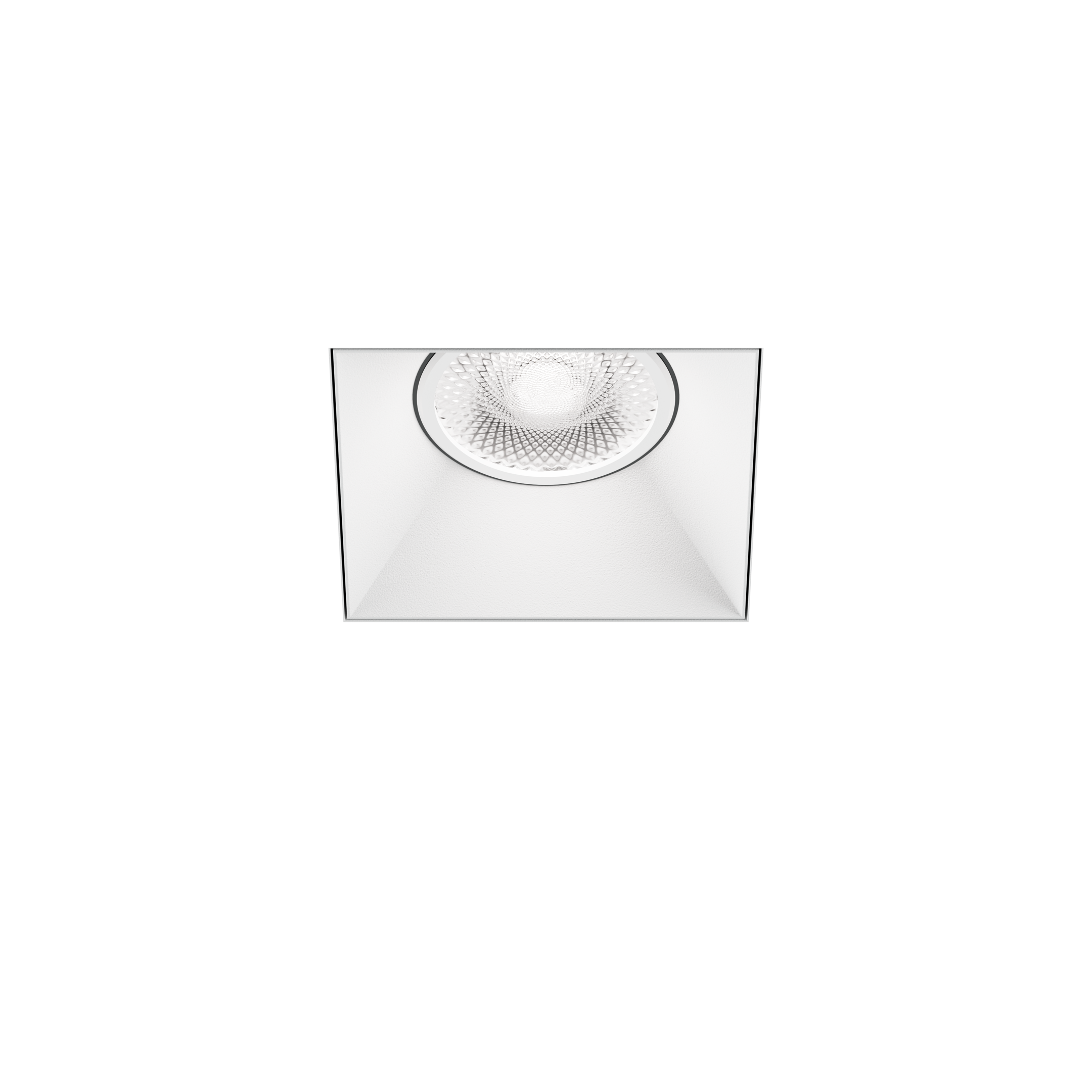

DOT-SQ 1.5 Trimless (Adjustable)
Cut sheet Configurator Instructions IES files

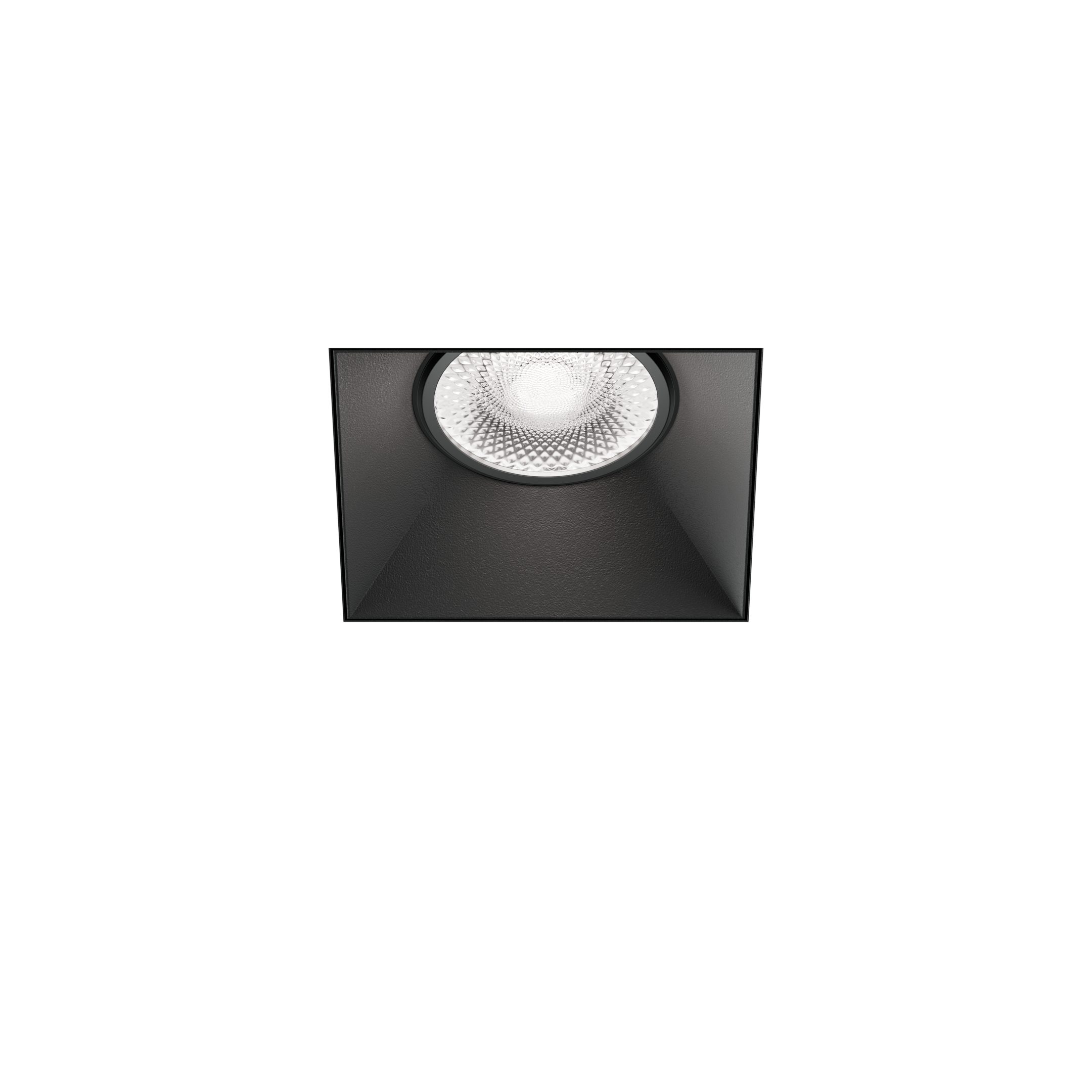

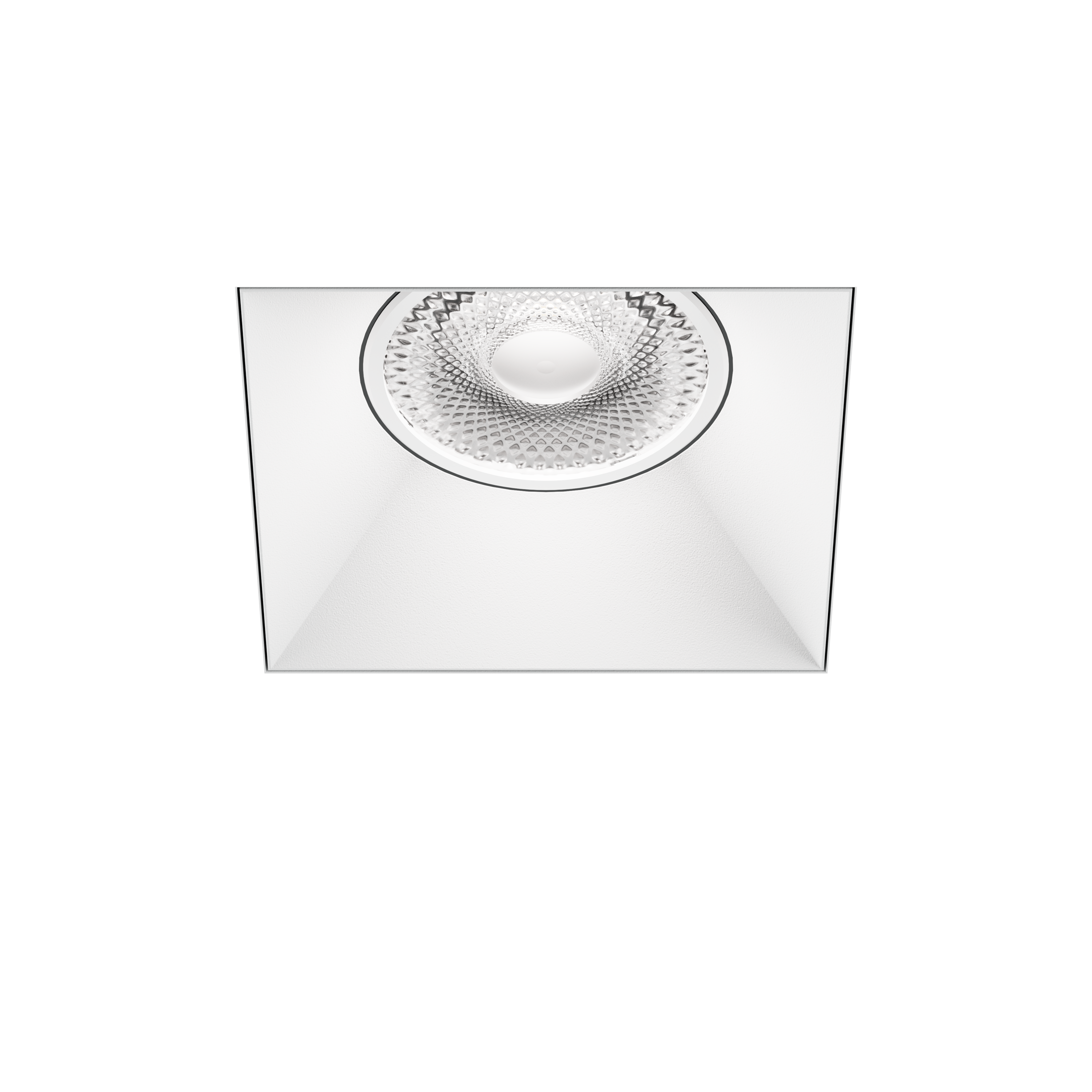

DOT-SQ 1.5 Trimless

DOT-SQ 1.5 Trimless (Fixed)
Cut sheet Configurator Instructions IES files

DOT-SQ 1.5 Trimless

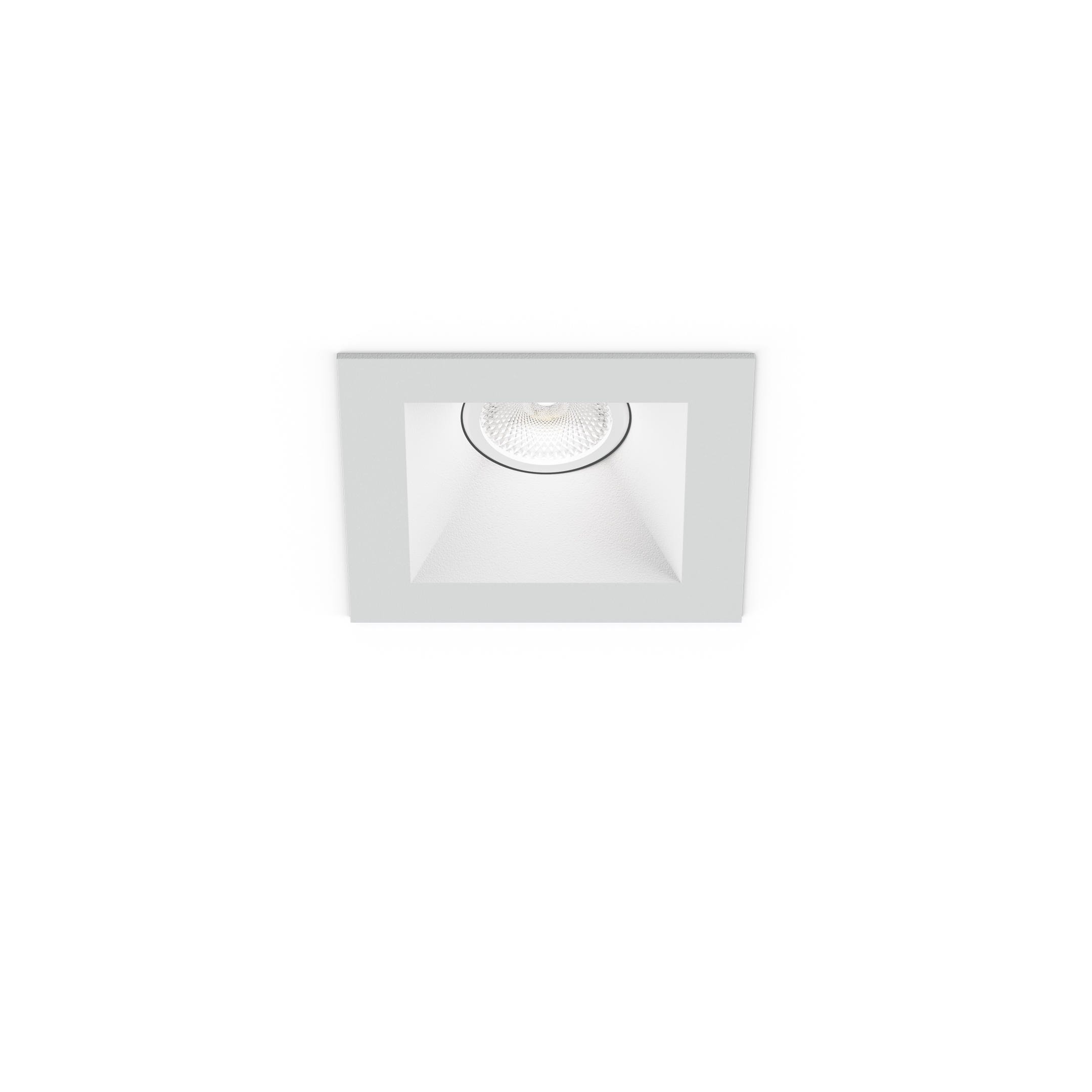

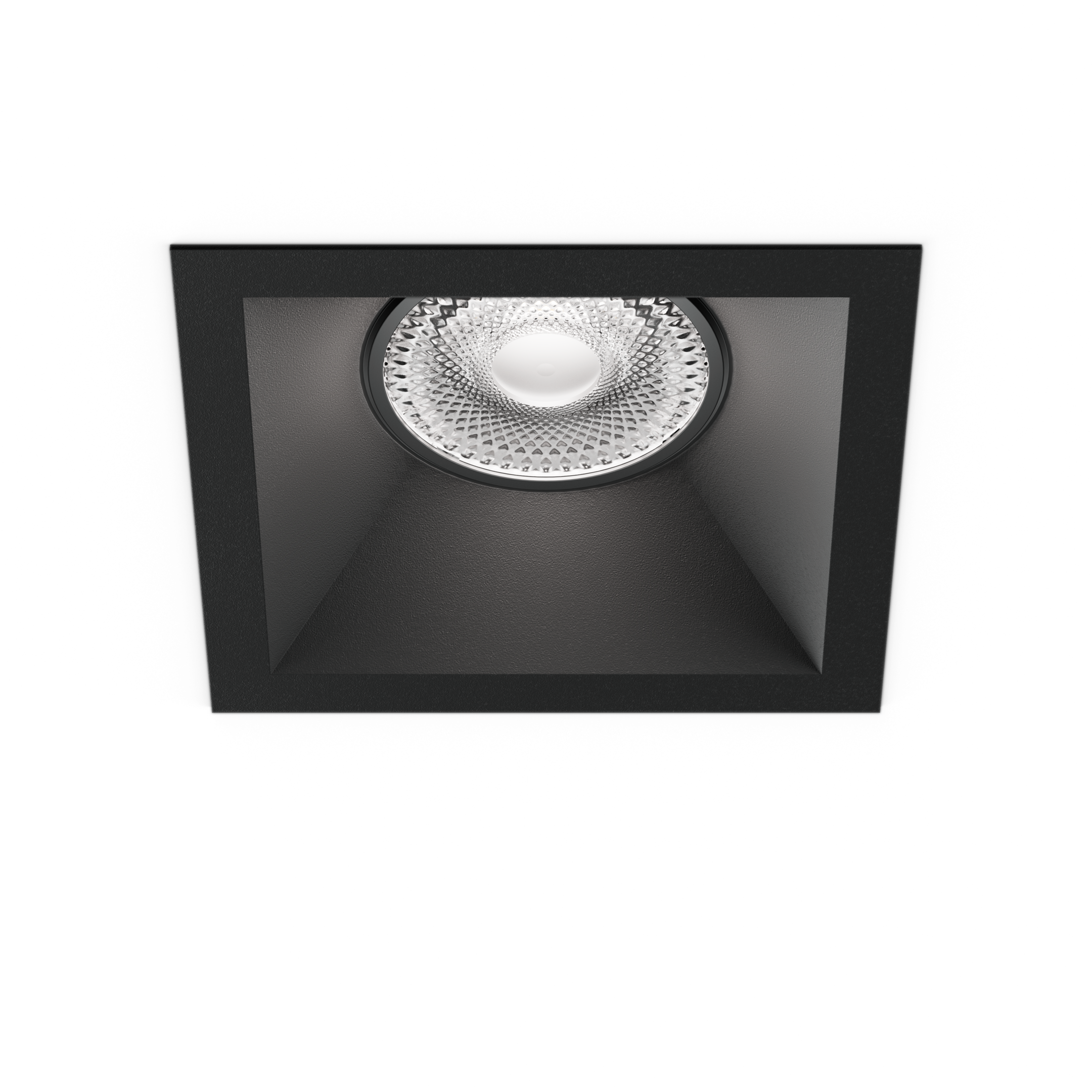

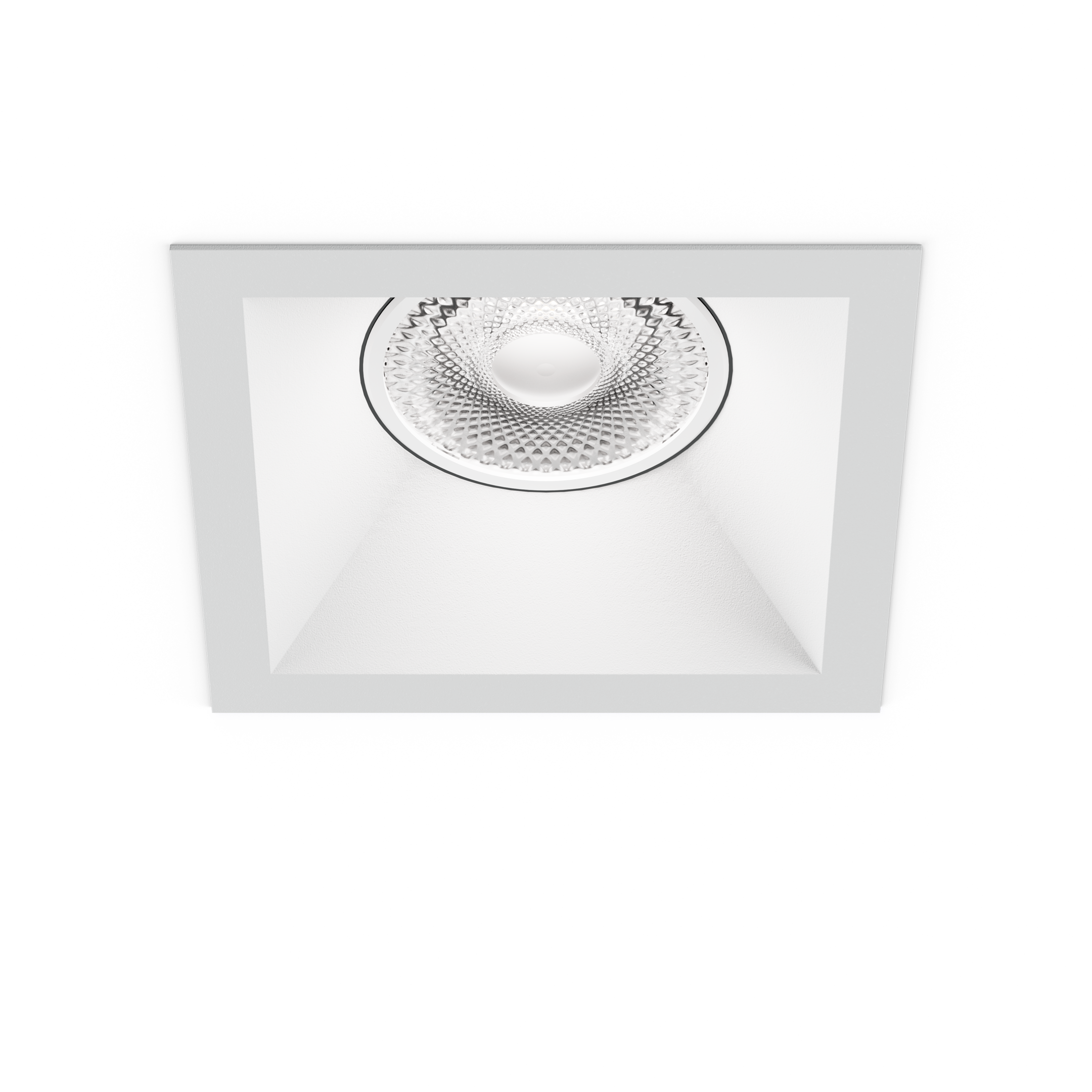

DOT-SQ 1.5 Trim (Adjustable)
Cut sheet Configurator Instructions IES files

DOT-SQ 1.5 Trim

DOT-SQ 1.5 Trim (Fixed)
Cut sheet Configurator Instructions IES files

DOT-SQ 1.5 Trim

DOT-SQ 2.5 Trimless (Adjustable)
Cut sheet Configurator Instructions IES files

DOT-SQ 2.5 Trimless

DOT-SQ 2.5 Trimless (Fixed)
Cut sheet Configurator Instructions IES files

DOT-SQ 2.5 Trimless

DOT-SQ 2.5 Trim (Adjustable)
Cut sheet Configurator Instructions IES files

DOT-SQ 2.5 Trim (Adjustable)

DOT-SQ 2.5 Trim (Fixed)
Cut sheet Configurator Instructions IES files

DOT-SQ 2.5 Trim (Fixed)

DOT-SQ 4.0 Trimless (Adjustable)
Cut sheet Configurator Instructions IES files

DOT-SQ 4.0 Trimless (Adjustable)

DOT-SQ 4.0 Trimless (Fixed)
Cut sheet Configurator Instructions IES files

DOT-SQ 4.0 Trimless (Fixed)

DOT-SQ 4.0 Trim (Adjustable)
Cut sheet Configurator Instructions IES files

DOT-SQ 4.0 Trim (Adjustable)

DOT-SQ 4.0 Trim (Fixed)
Cut sheet Configurator Instructions IES files

DOT-SQ 4.0 Trim (Fixed)

Total Design Alignment

Matching the dimensions of downlights to linear luminaires is easier than ever. DOT-SQ comes in three apertures and aligns perfectly with the widths of BASO and CURVE.

Use DOT like punctuation and a period at the end of a linear or curve fixture, continue between two fixtures like a comma, or end an installation boldly with an exclamation mark.
