Bright and edgy

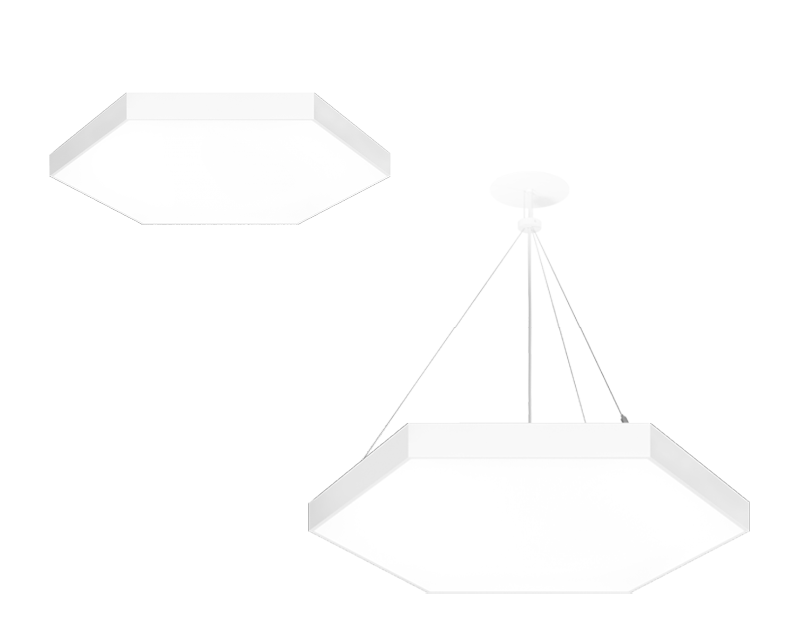

The HEX series is available either as a surface mounted version or as a suspended luminaire. The low height of the hexagonal luminaire body, made of seamlessly welded aluminum, stands out for its innovative technology. The backing plate with its highly reflective surface allows brilliant peak values of up to 128 lm/W. HEX is available with an opal cover for uniform, even lighting.

Modern lighting design

HEX has five key design tenets that keep it a cut above similar competitors on the market. HEX is assembled with aluminum for a lightweight composition in three sizes. With an engaging geometric design, options for grouped and customized layouts and acoustic finishes, HEX delivers new lighting solutions with easy installations.

Refined technology

HEX has a mix of simple mounting for surface lights, powerful LEDs and safety mechanisms that make it safe and reliable yet decorative and bold.
BASO's attention to detail can be seen in how we trim the circuit board to match the shape of the ROUND fixture.

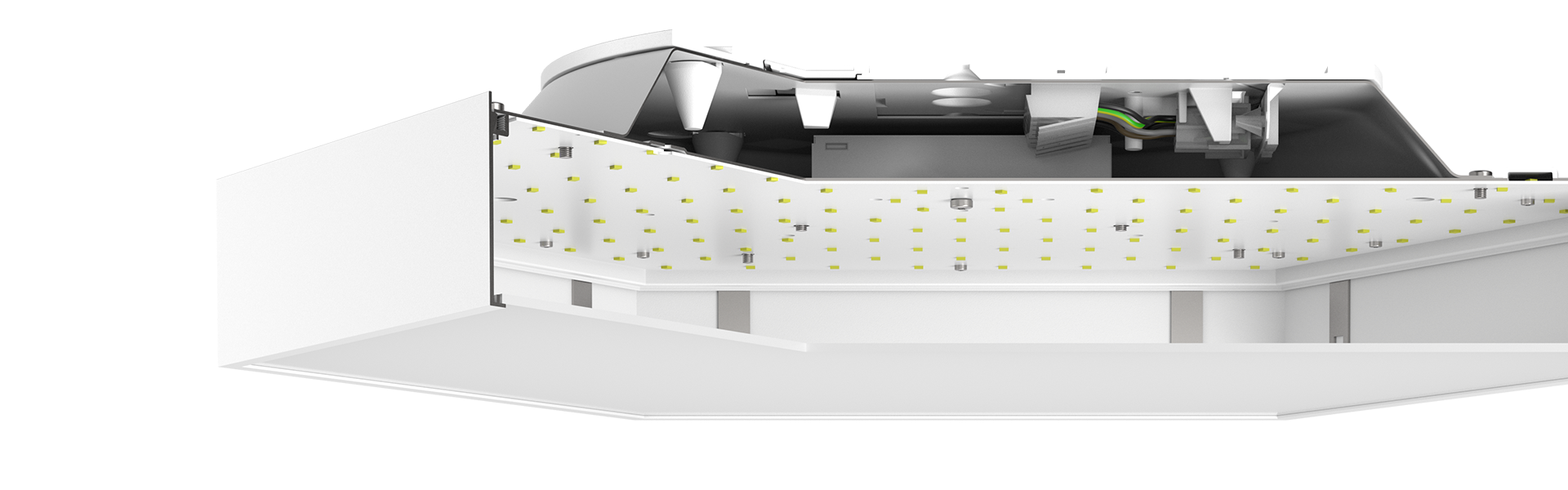

Let's cut away a fixture to explore what makes HEX products unique in the diagram below.

Light Body

The lightweight deep-drawn housing makes installation less of an effort.

LED Driver

The LED is centrally integrated into the structure on top of the luminaire.

Release Tab

The locking keyhole mechanism is simply released by pressing the release tab, facilitating easy disassembly.

Opal Cover

HEX is available with a translucent opal lay-in cover for uniform illumination.

Mounting Plate

The surface mounting plate has an integrated electrical connection and attaches to the ceiling. A patented smart keyhole mechanism makes mounting, locking and connecting the light body a matter of just one click.

Profile Frame

The frame of the HEX is made of a high-quality powdercoated aluminum profile welded in-house. Available in three different colors.

Circuit Board

With our HEX circuit board youll find a hexigonal shaped, highly reflective, circuit board that fills the housing end to end for perfect, consistent illumination with no dark spots.

LEDs

Our standard light sources are high efficiency LEDs with a color rendering index of CRI ≥ 80 and color temperatures of 3000K 3500K and 4000K. They give the HEX a luminous efficacy of up to 128 lm/W.

Indirect Light

The indirect light component for illuminating the ceiling consists of a circular arrangement of LEDs with a protruding opal cover.

Configurations of HEX

HEX is available in two mounting options with a range of finishes, such as direct-indirect, surface and acoustic. Additionally, the HEX pendant can be mounted onto an M-LINE or R-LINE track as a specialized inset.

Explore each of these solutions and specifications below.
R-LINE Hex
Cut sheet Configurator Instructions IES files REVIT files

Hex

M-LINE Hex
Cut sheet Configurator Instructions IES files REVIT files

Hex

HEX Surface
Cut sheet Configurator Instructions IES files REVIT files

HEX Surface

HEX Surface Direct-Indirect
Cut sheet Configurator Instructions IES files REVIT files

HEX Surface Direct-Indirect

HEX Acoustic Surface
Cut sheet Configurator Instructions REVIT files

HEX Acoustic Surface

HEX Acoustic Surface Indirect
Cut sheet Configurator Instructions IES files REVIT files

HEX Acoustic Surface Indirect

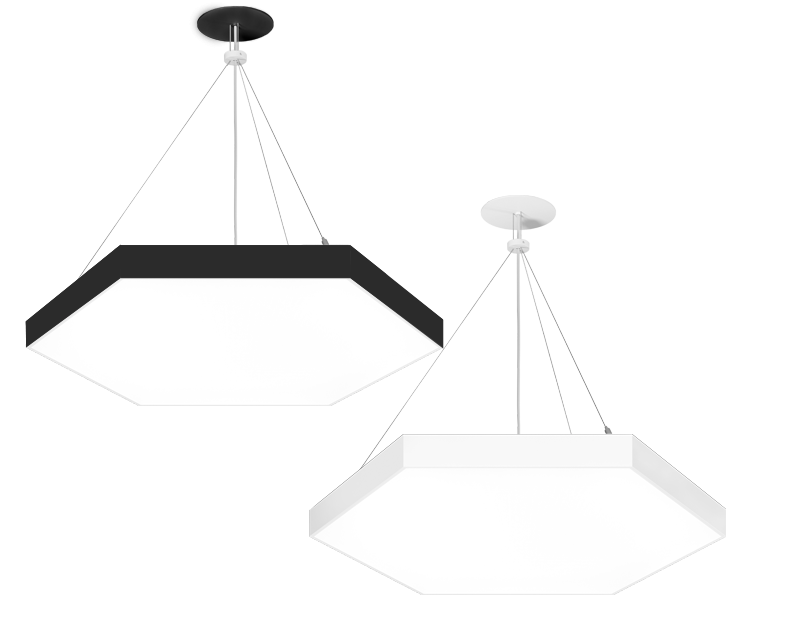

HEX Pendant
Cut sheet Configurator Instructions IES files REVIT files

HEX Pendant

HEX Pendant Direct-Indirect
Cut sheet Configurator Instructions IES files REVIT files

HEX Pendant Direct-Indirect

HEX Acoustic Pendant
Cut sheet Configurator Instructions REVIT files

HEX Acoustic Pendant

HEX Acoustic Pendant Indirect
Cut sheet Configurator Instructions IES files REVIT files

HEX Acoustic Pendant Indirect

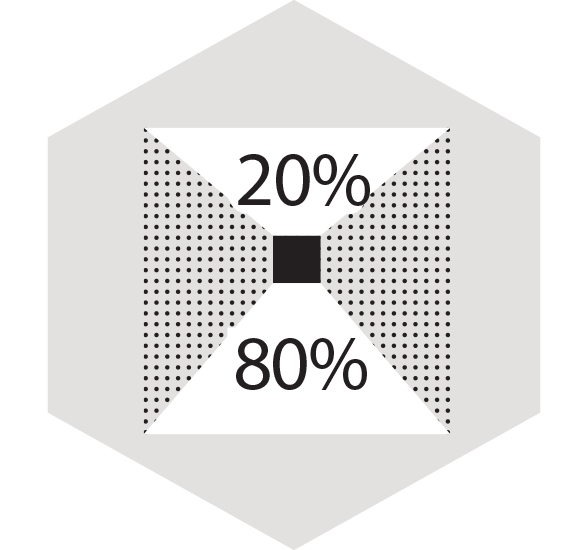

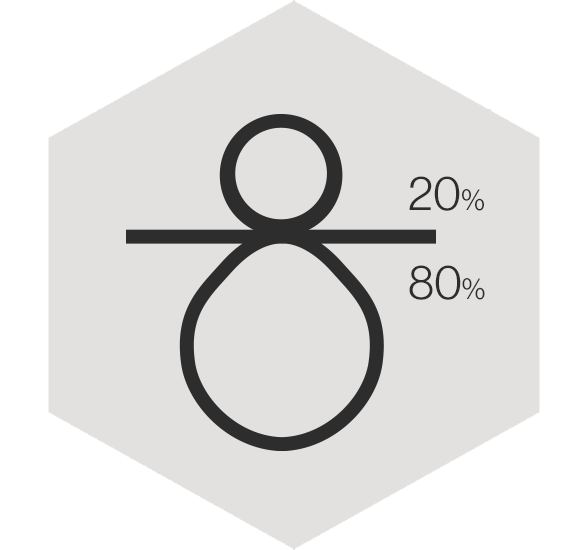

Direct and Indirect Apertures

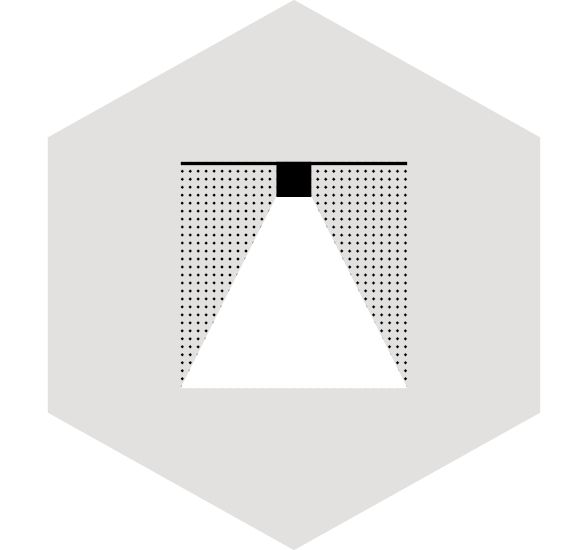

Direct Light

The integrated batwing uplight offers a widespread indirect glow that distributes evenly across the ceiling around the fixture. Use the batwing uplight to disperse more light across the space.

Indirect Light

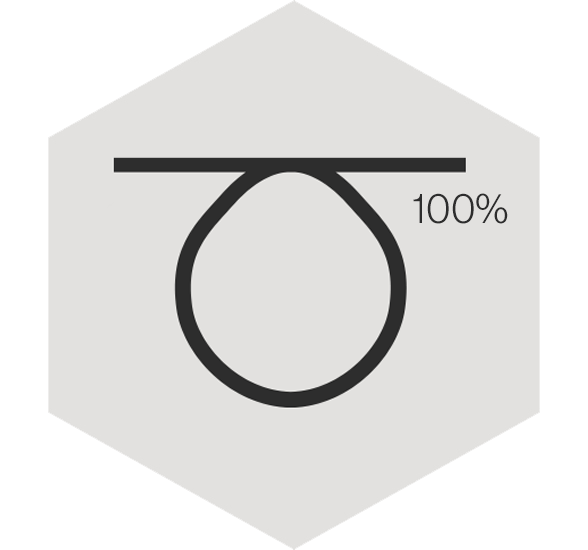

The flush-mounted high-performance opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion.

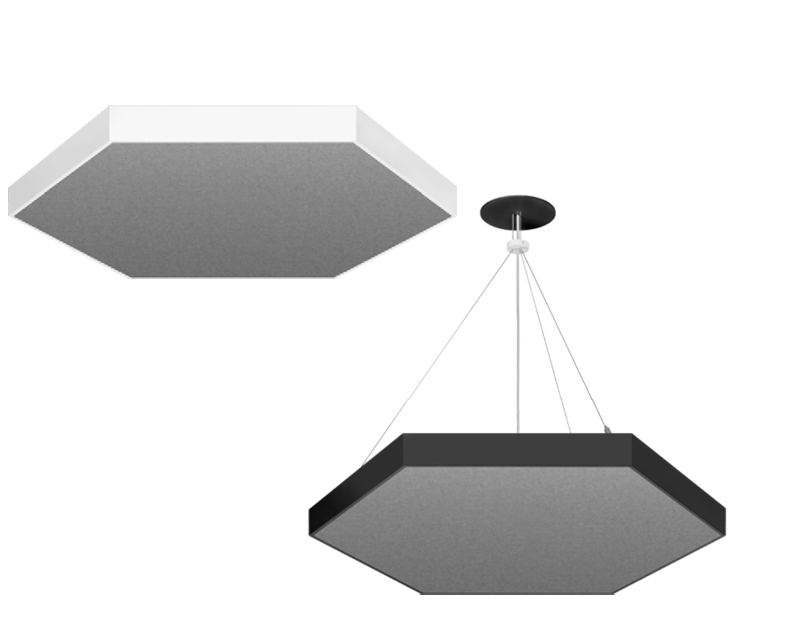

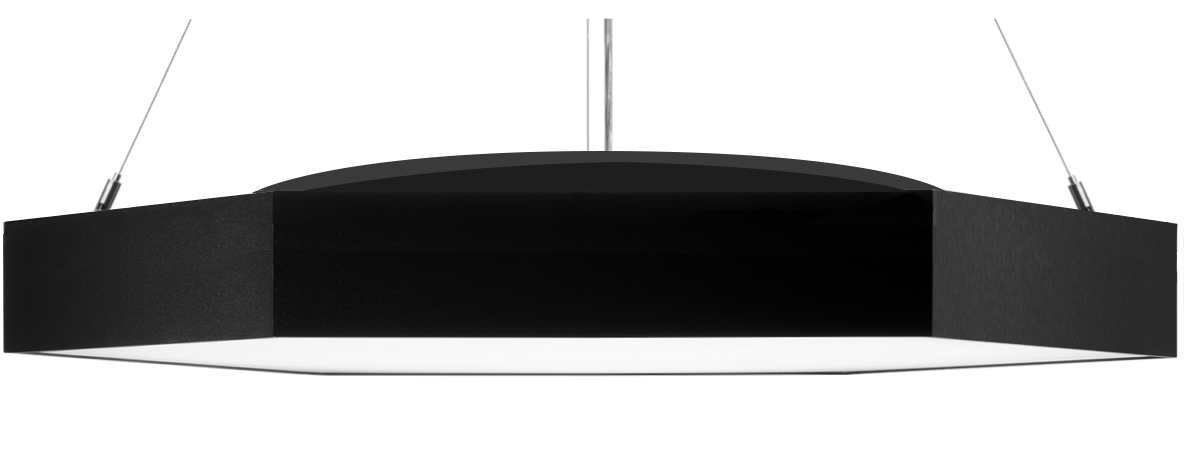

HEX Acoustic

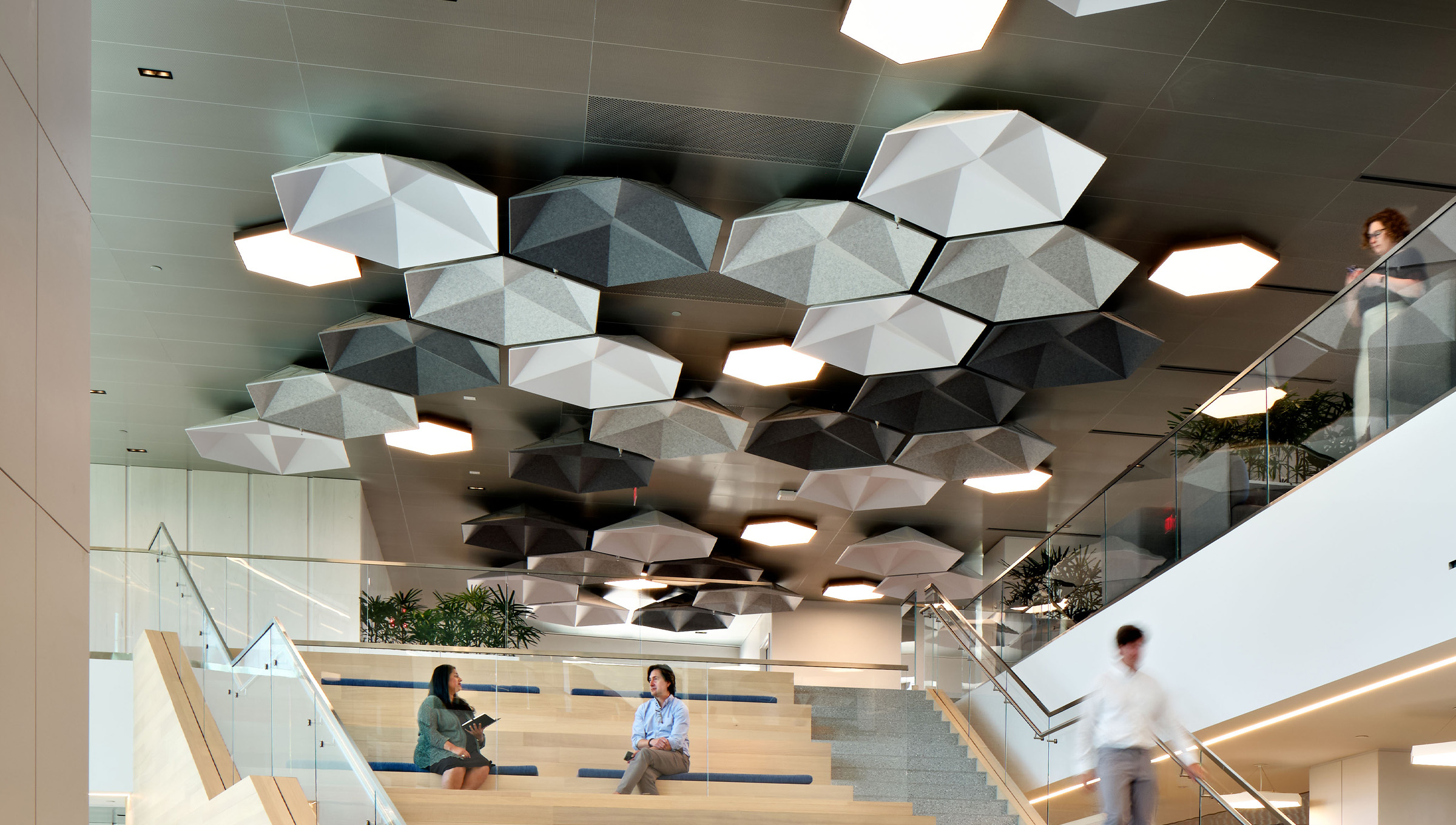

HEX Acoustic offers Surface, Suspended, and Direct and Indirect options. Seamlessly welded fixture housing, with powder-coated finish in white, black, or grey. Acoustic lay-in covers to absorb sounds.

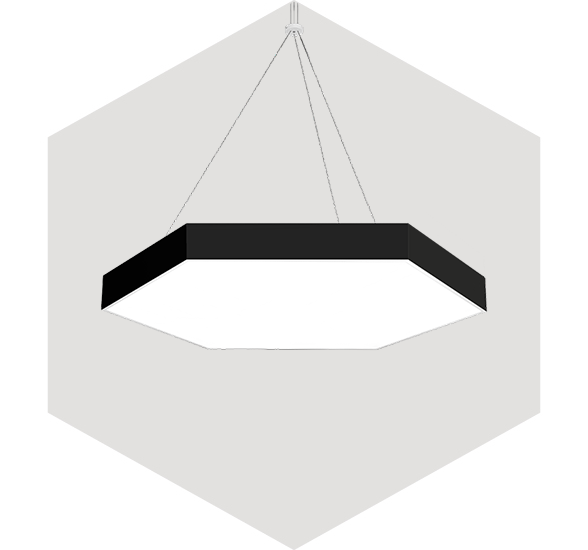

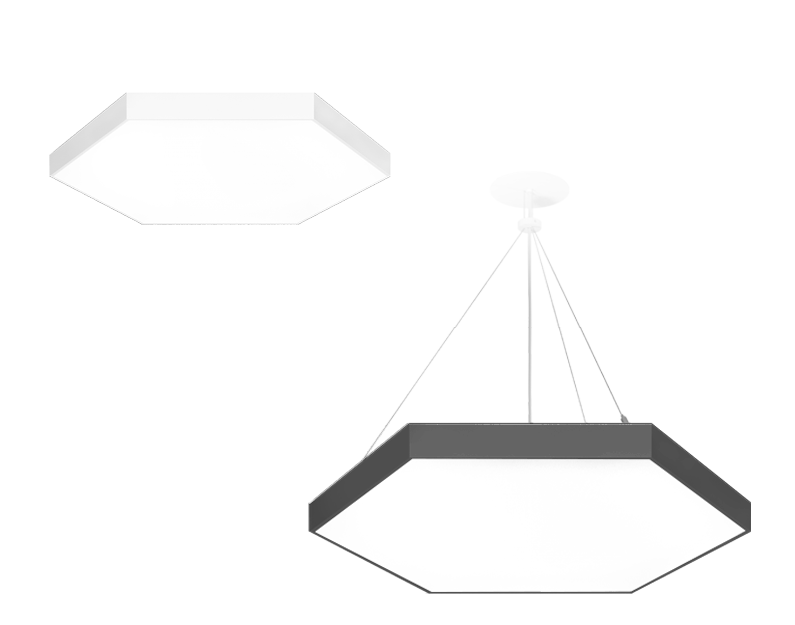

HEX Suspended

HEX suspended offers direct and indirect lighting solutions in 1', 2', and 3'. Hexagon design with opal cover. Available in three colors with a powdered coated finish.

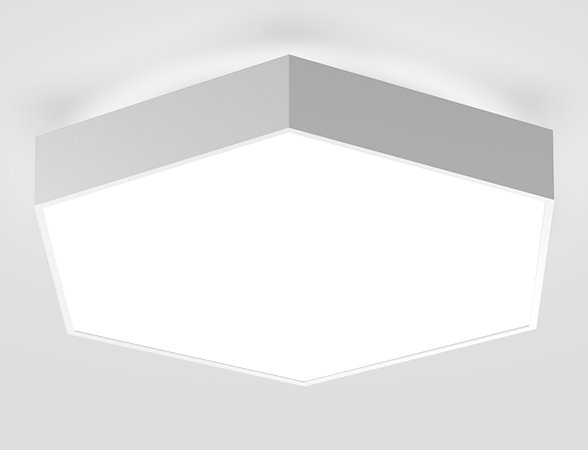

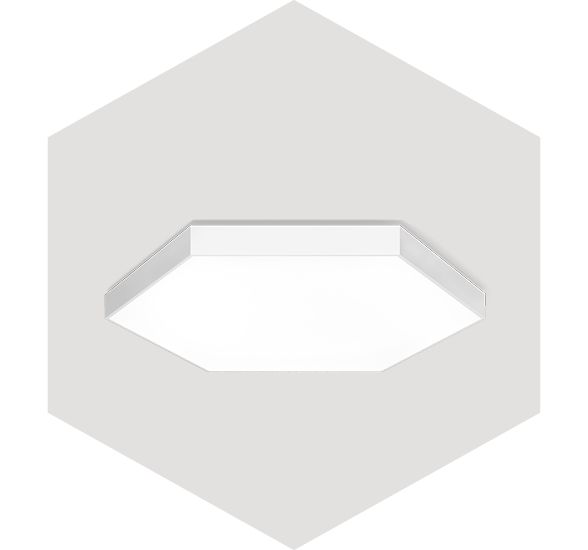

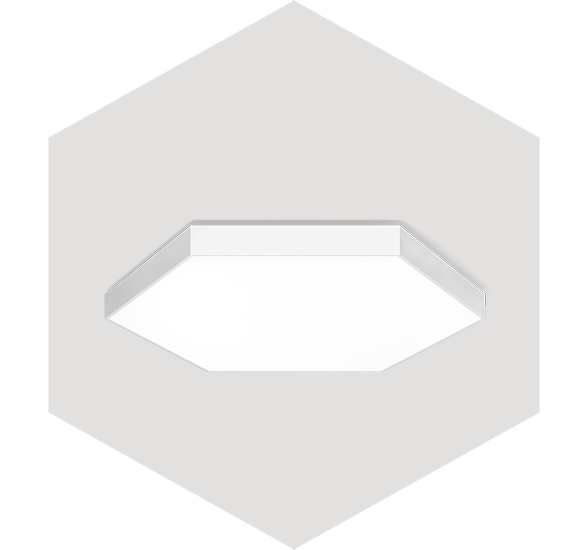

HEX Surface

HEX surface offers direct lighting for HEX 1', 2', and 3'. Unique hexagon design with opal cover. Available in three different colors with a powdered coated finish.

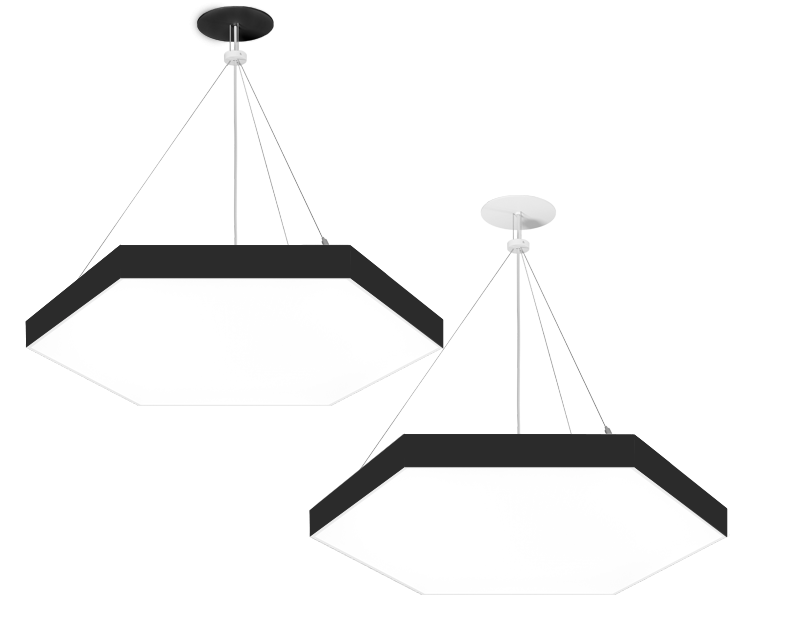

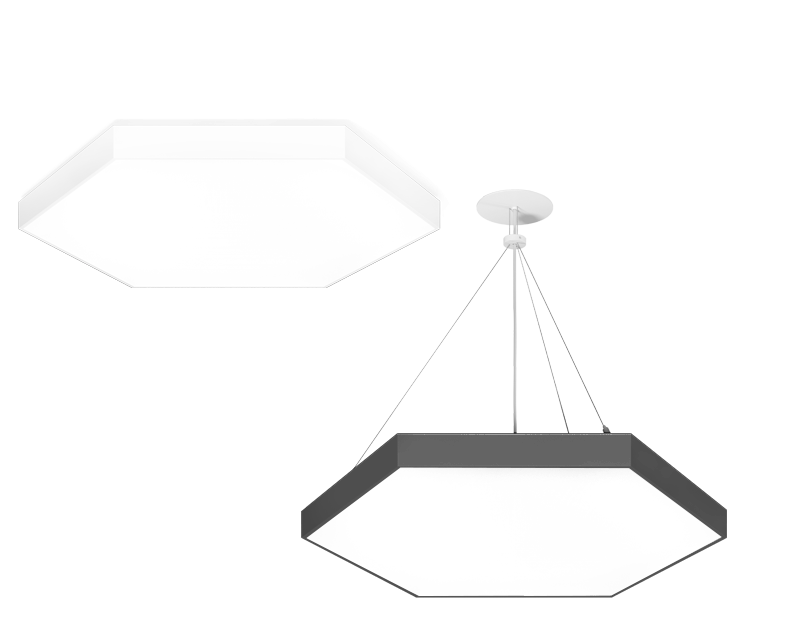

HEX Direct/Indirect

With our pendant option, direct and indirect lighting is offered. Seamlessly welded fixture housing with up to 125 lm/W outputs. Powdered coated finish in three colors, black, grey, or white.

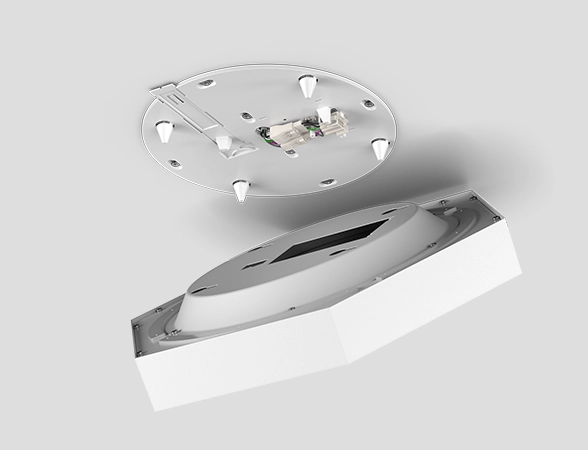

One simple click

Mounting and electrical connection with one click

For surface mounting, use the powered mounting plate that screws into the ceiling
and turns on easily. On the plate is a mounting bracket that attaches with a simple click.

This patented mechanism provides power to the luminaire instantly and does not require opening the luminaire at all, exposing the LEDs to ESD shock, dirt or damage.

Minimize installation, maintenance and manage the scale of larger projects with
HEX's versatile simplicity.

Explore our mounting
solutions

HEX is available in three mounting options. It can be mounted on the wall or ceiling for a surface lighting solution, or it can be hung from the ceiling using
a pendant lighting design.

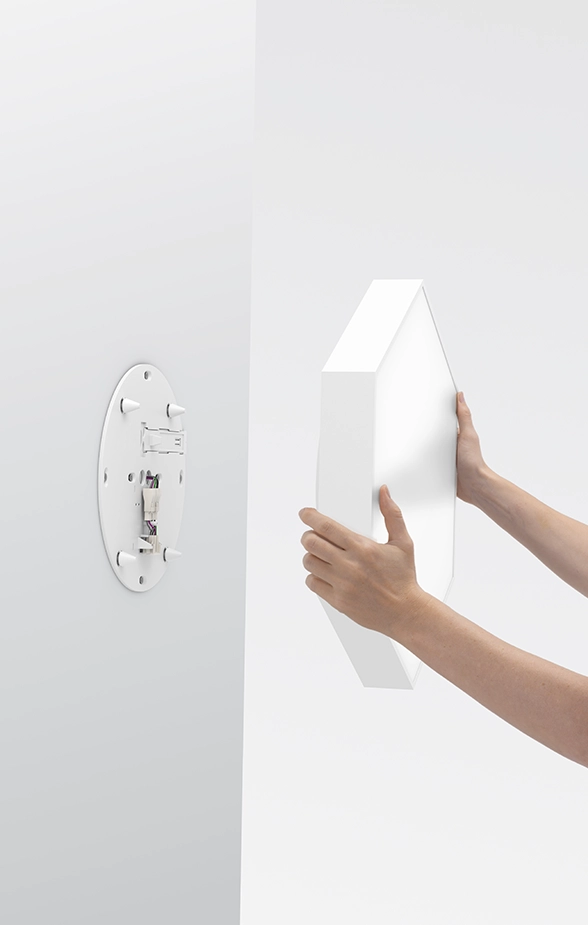

WALL MOUNT

SURFACE MOUNT

PENDANT MOUNT

Dimensions and Lumen output

Making your room stand out

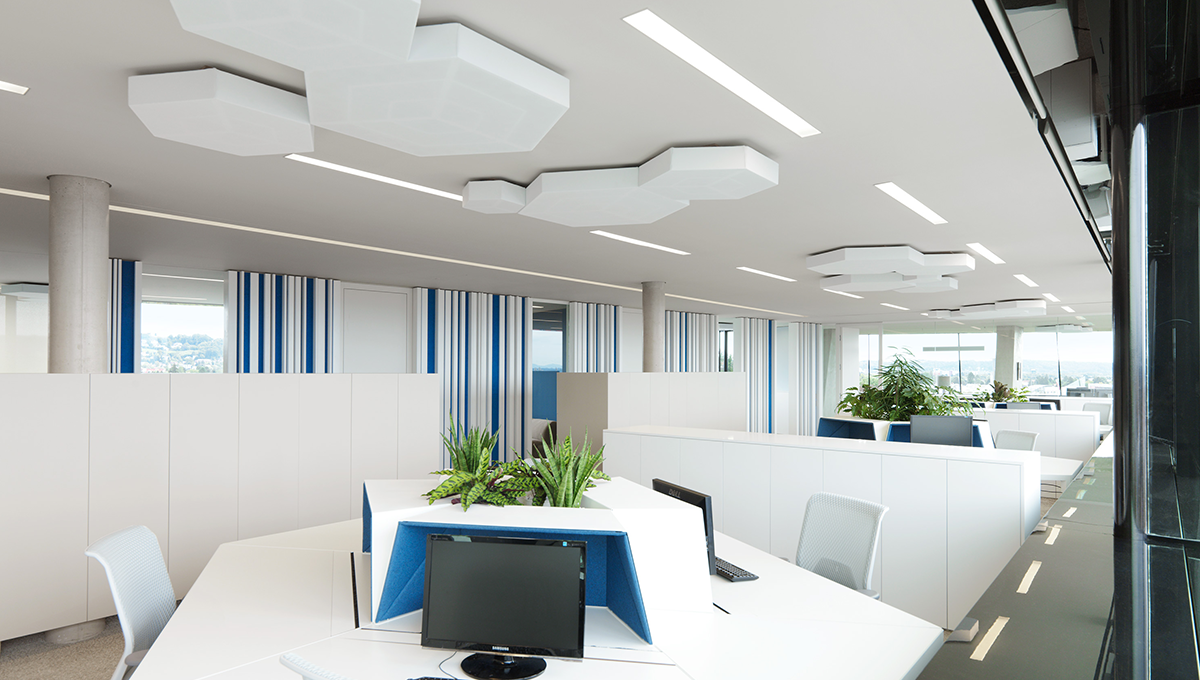

Project inspiration

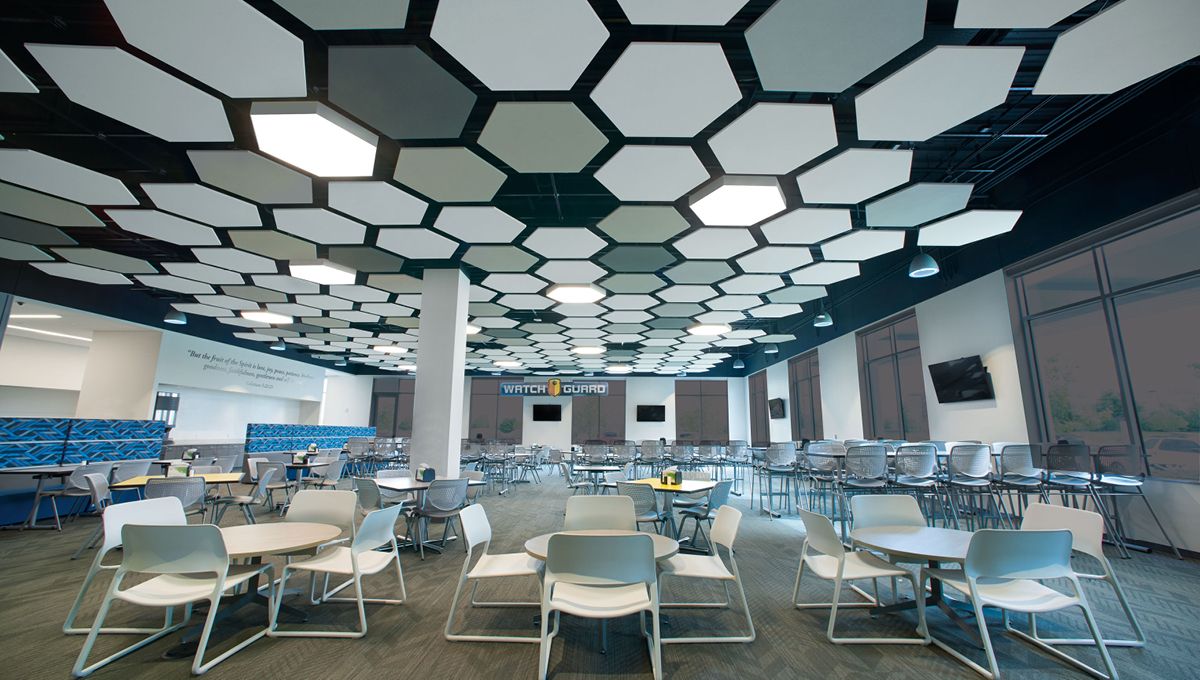

WatchGuard Corporate
