Modern Lighting Integration.

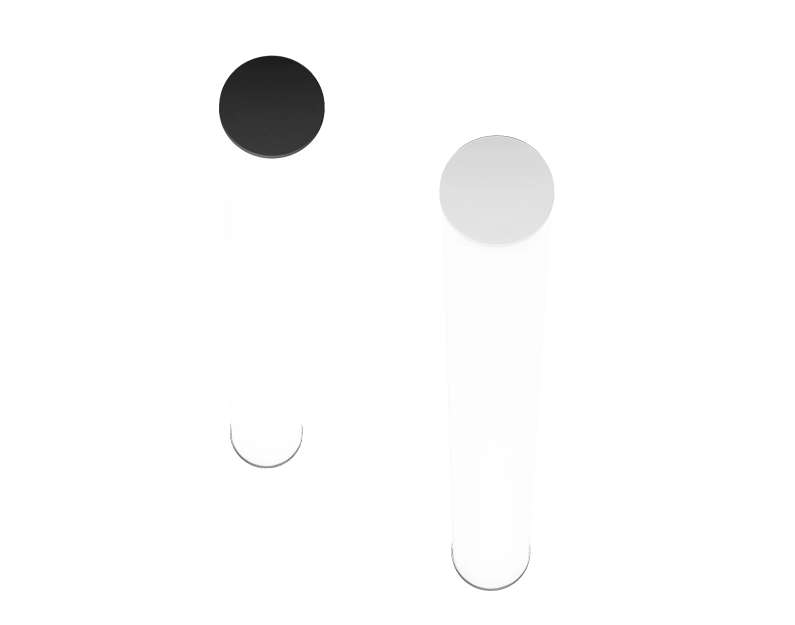

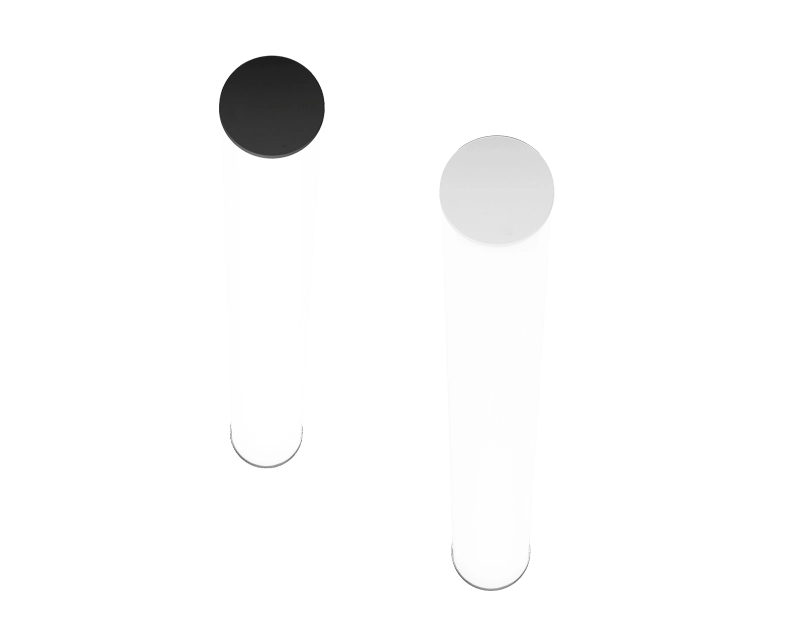

Three color endcaps
Uniform lumination
mounting advantages
design freedom

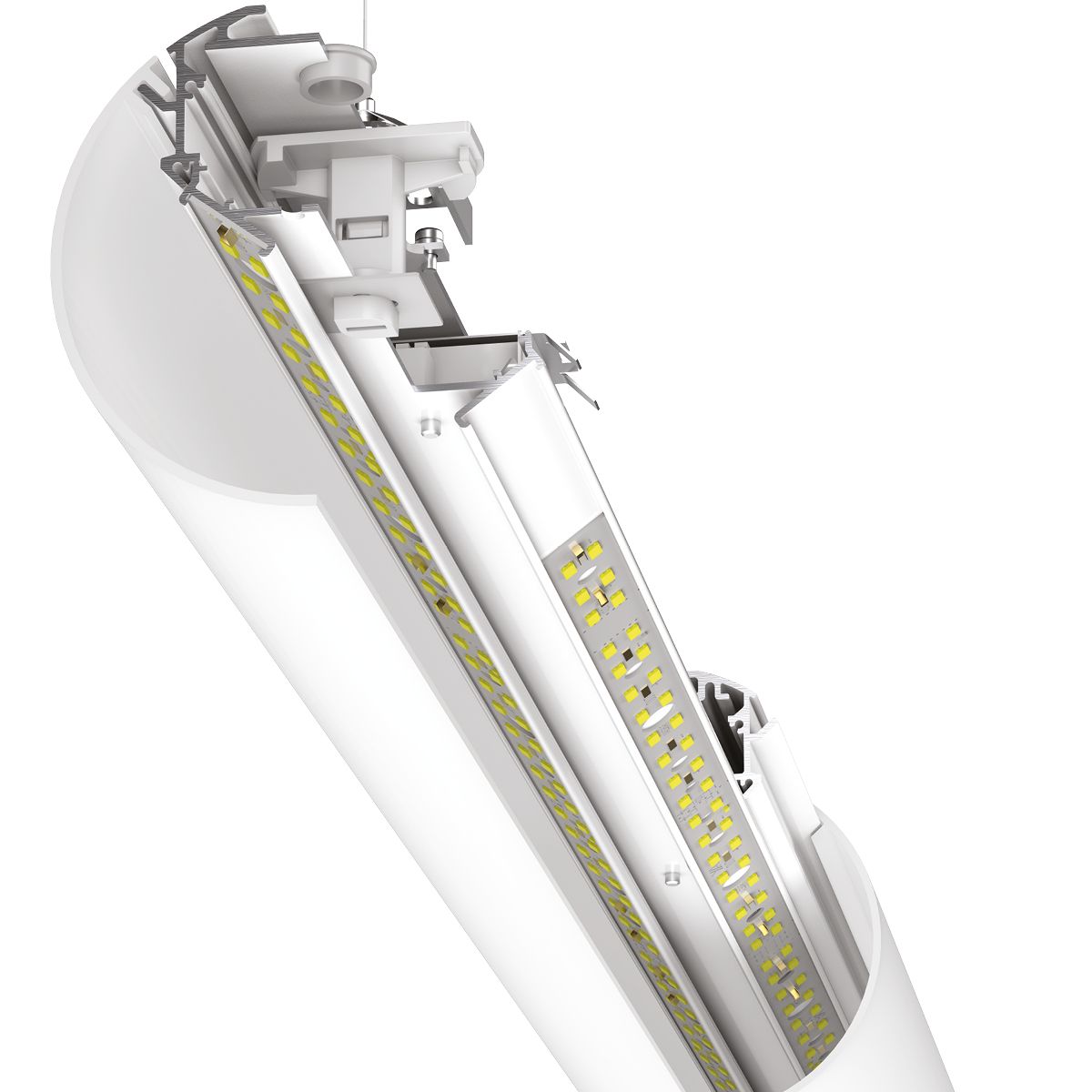

Refined technology

Channel

Profile housing with 4" diameter, made of extruded aluminum, powder-coated white. Solid aluminum endcaps, available in powder-coated gray, white or black. Endcaps lock internally for vertical mounting.

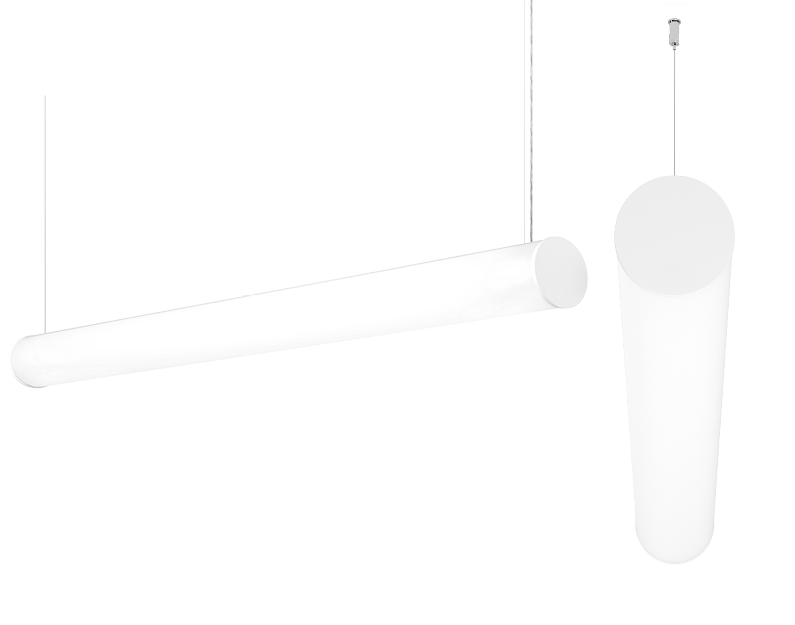

Cable Suspension

Flexible aircraft cable suspension, 48" or 78" long. Luminaire height can be adjusted without tools. The suspension cables attach to the luminaire via spring clips and can be positioned freely.

Locking Mechanism

A simple, tool-free fastening mechanism makes mounting the LED insets after the aluminum frame has been installed, easy.

LED

XAL only uses the latest generation, high-efficiency LEDs with color reproductive values of CRI > 80 in color temperatures 3000 K, 3500 K or 4000 K. LEDs easily last up to 80,000 hours at 80 % lumen maintenance (L 80) and achieve an excellent luminous efficacy of up to 142 lm/W.

Flex Insets

Insets consist of highly reflective, coated aluminum profile and can be individually shortened on-site and adjusted. Flexible insets can be cut in 3" increments, with a minimum length of 24".

Driver

The driver is attached directly to the LED inset, with optional DALI dimming capability. The integrated driver is hidden and does not take away from the luminaire's sleek appearance.

PCB Board

Aluminum-based PCB boards are fully integrated and reduce the thermal resistance between LED and the aluminum body. They in turn lengthen the lifespan of the LEDs and enhance the performance of the system as a whole.

HP Opal COVER

The flush-mounted HPO-High Performance Opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion. Also available as microprismatic PMMA cover for enhanced glare control.

Optics with outstanding performance of up to 142 lm/W.

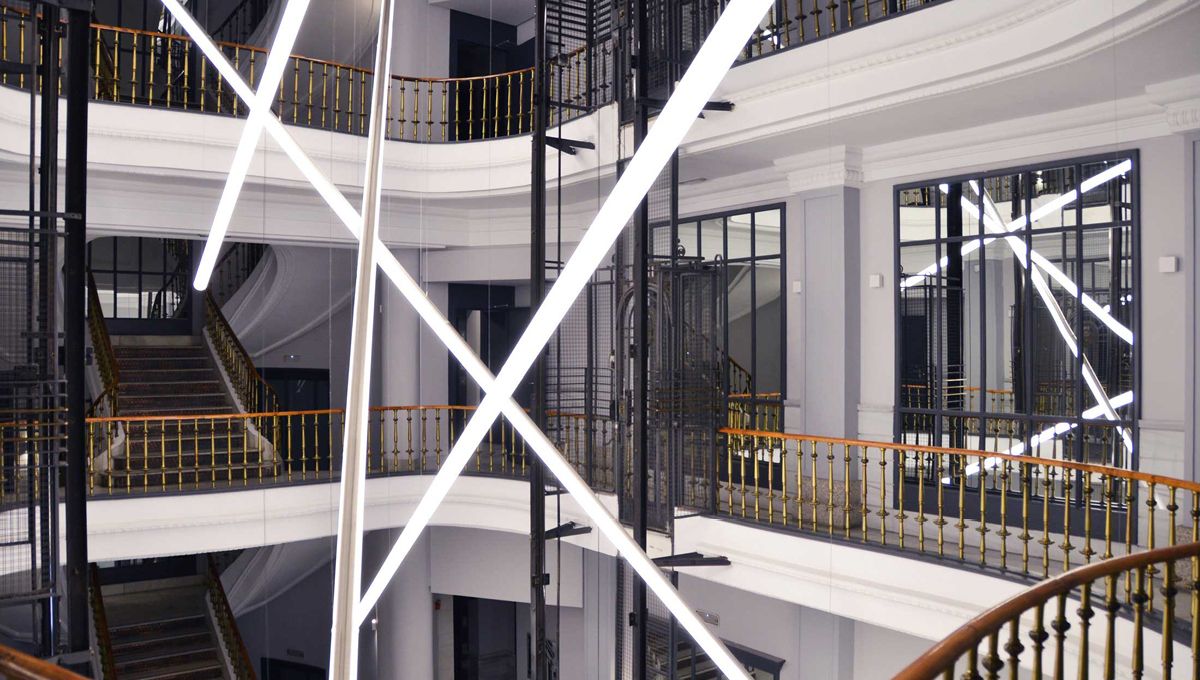

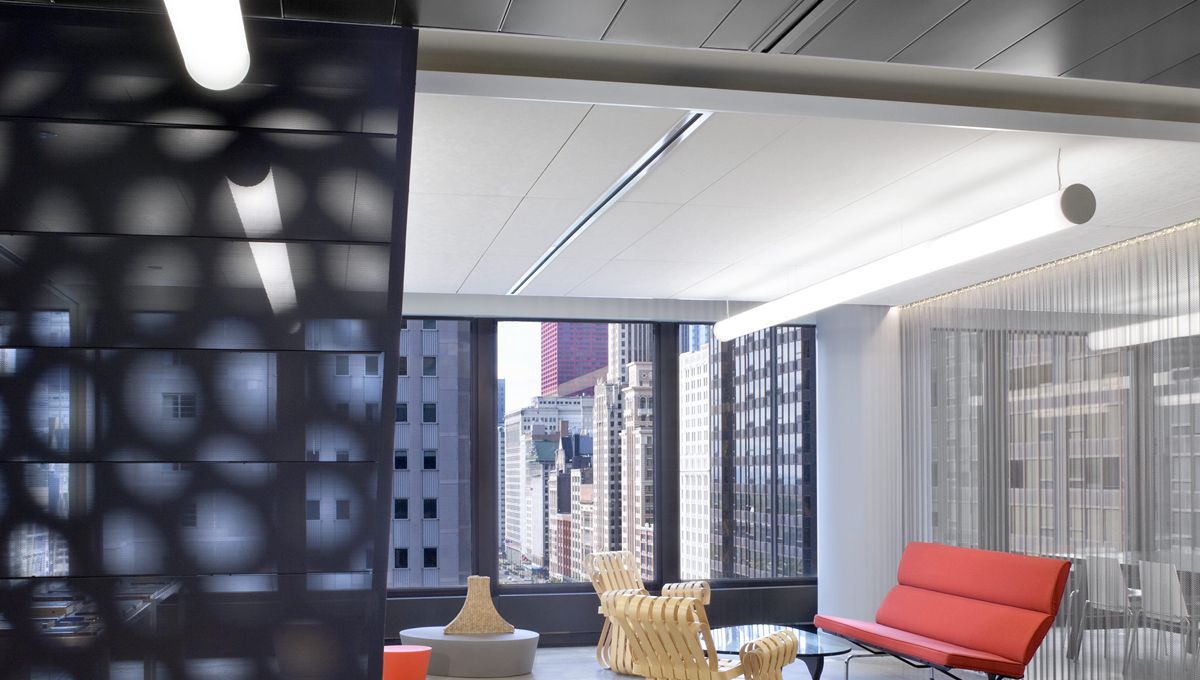

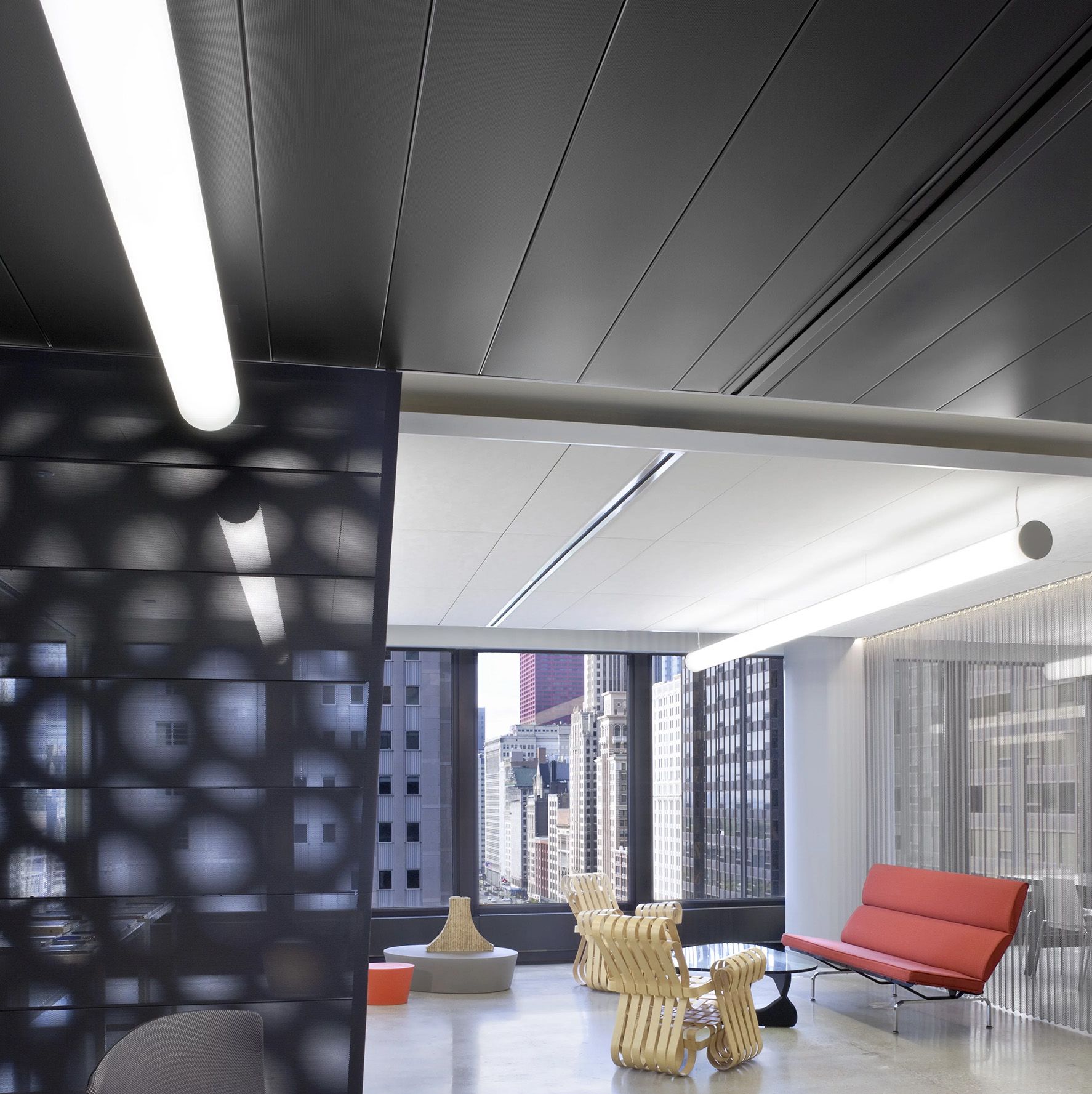

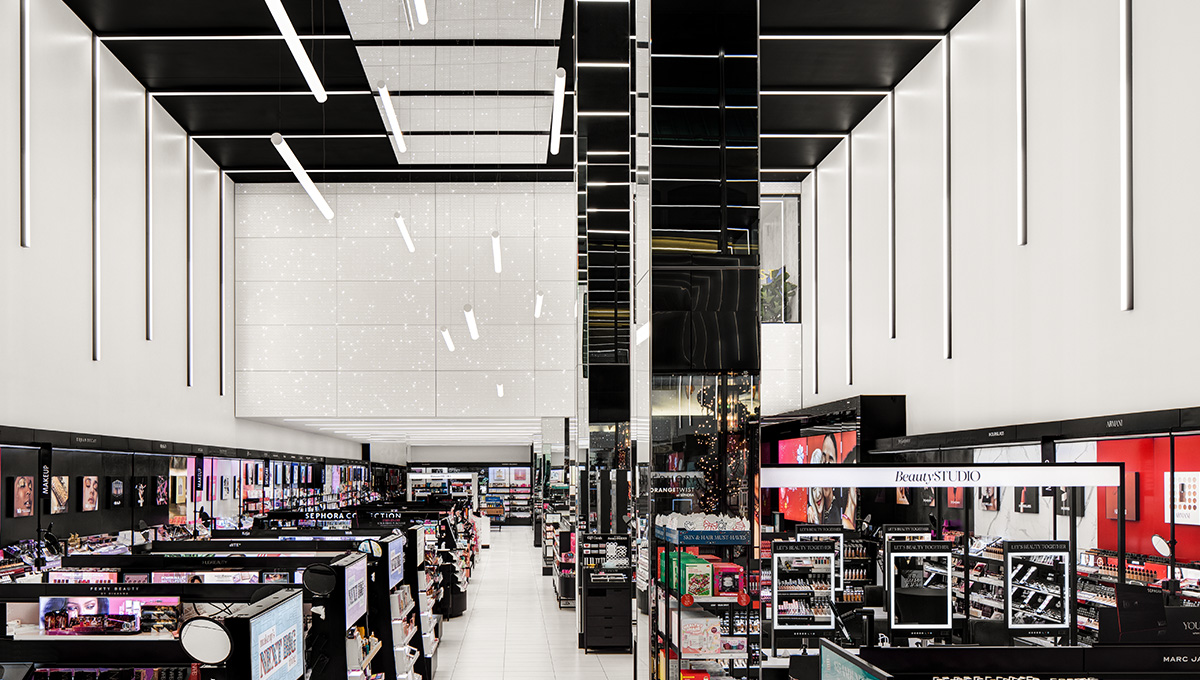

The multifaceted TUBE fixture fits well into many environments. It can be used to enhance dining rooms, libraries, offices, foyers, schools or retail stores with a unique, modern look. Thanks to its tubular shape, light is emitted evenly in a 340 degree radius with gentle ceiling illumination.

Opal lens

The flush-mounted high-performance opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion.

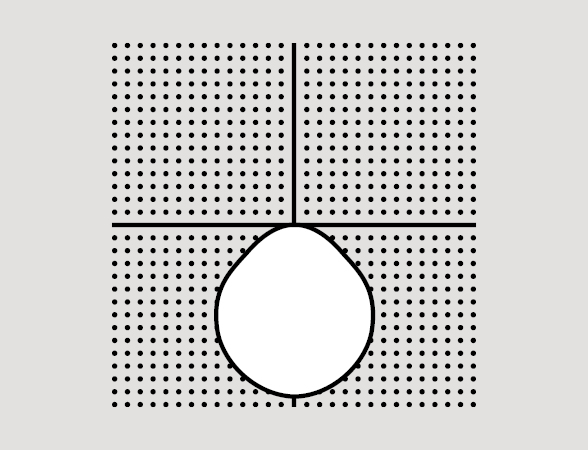

Direct light

The integrated direct lighting offers a direct glow that distributes evenly through the room around the fixture.

Opal lens

The flush-mounted high-performance opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion.

Direct light

The integrated direct lighting offers a direct glow that distributes evenly through the room around the fixture.

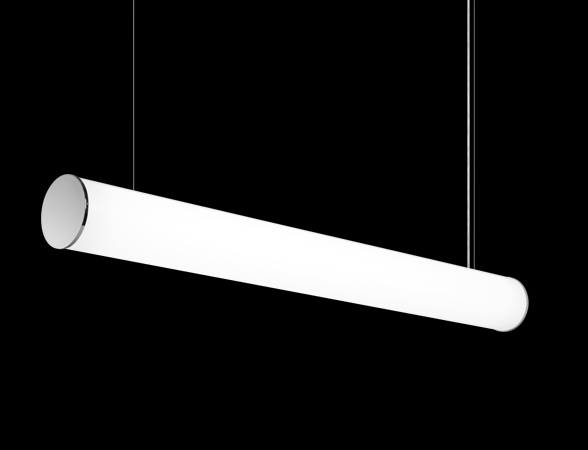

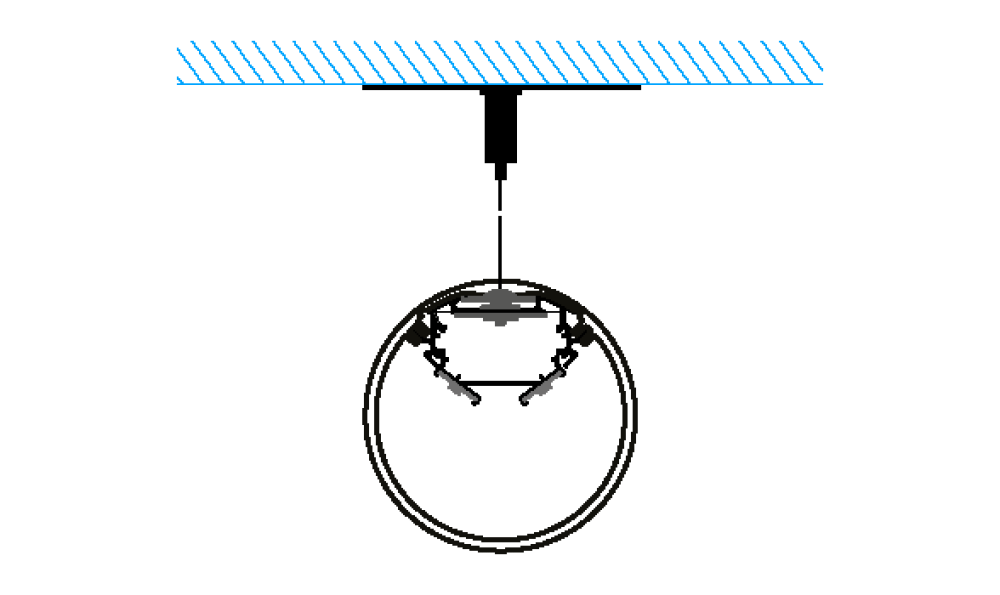

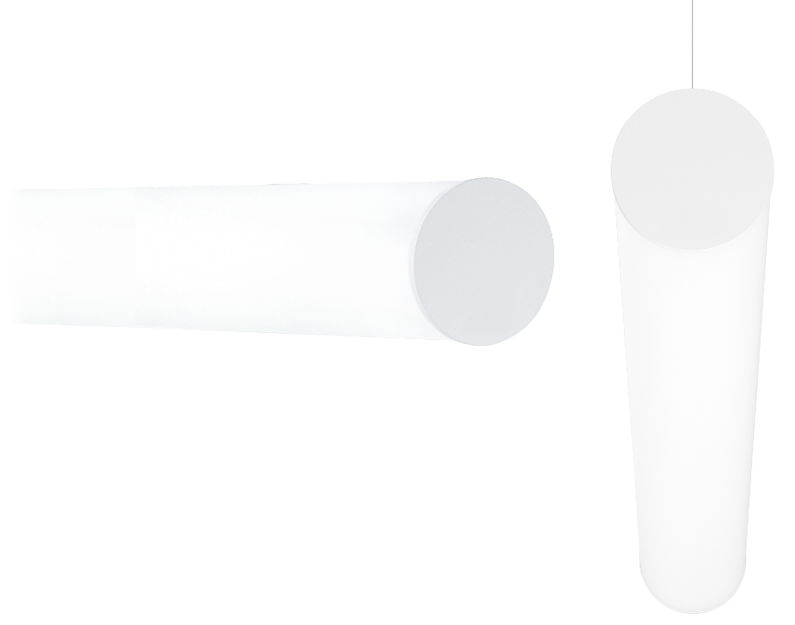

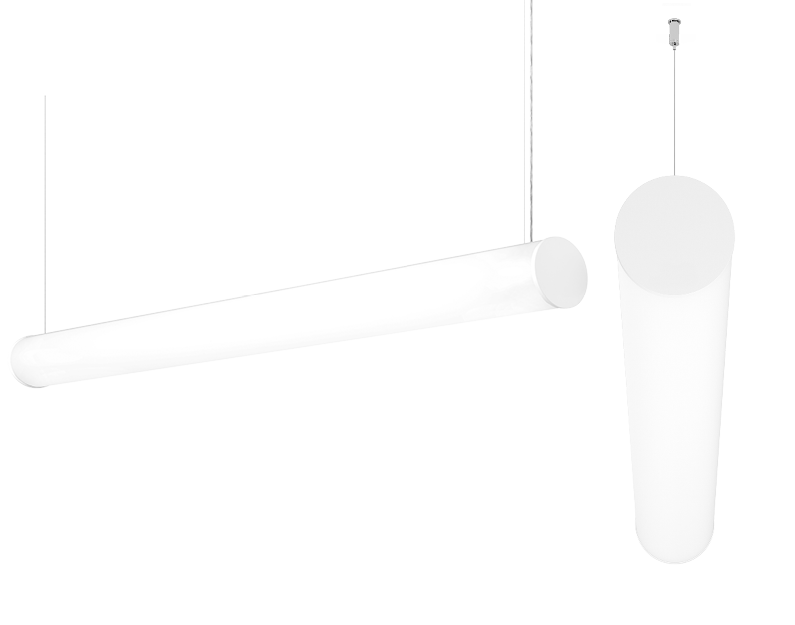

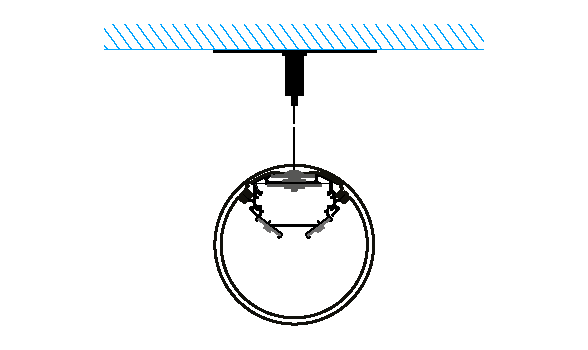

  • TUBE Suspended

    TUBE suspended offers direct and indirect lighting. Three different color endcaps available. Includes cable suspension and one white power feeder with a white junction box cover.

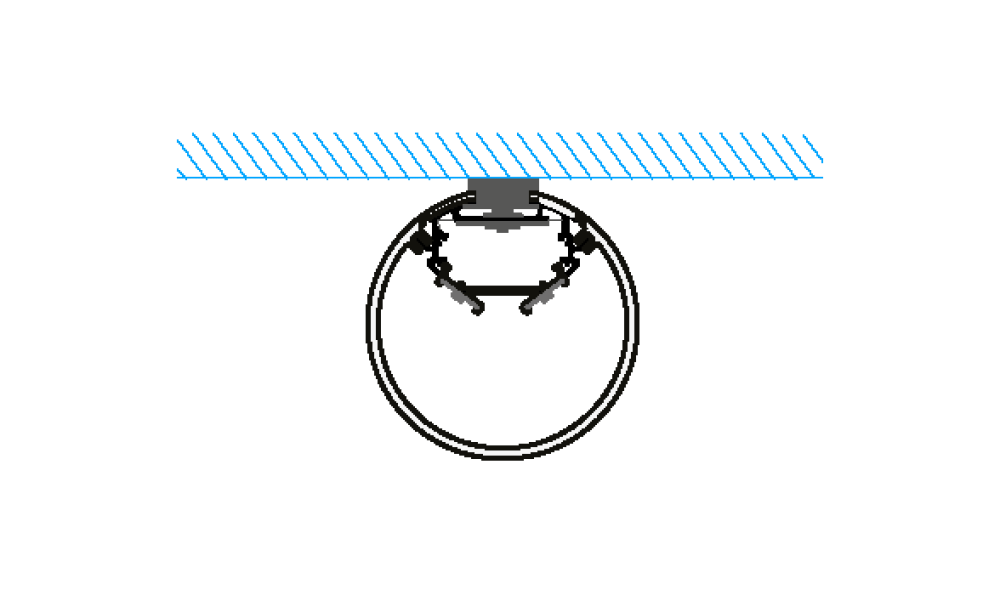

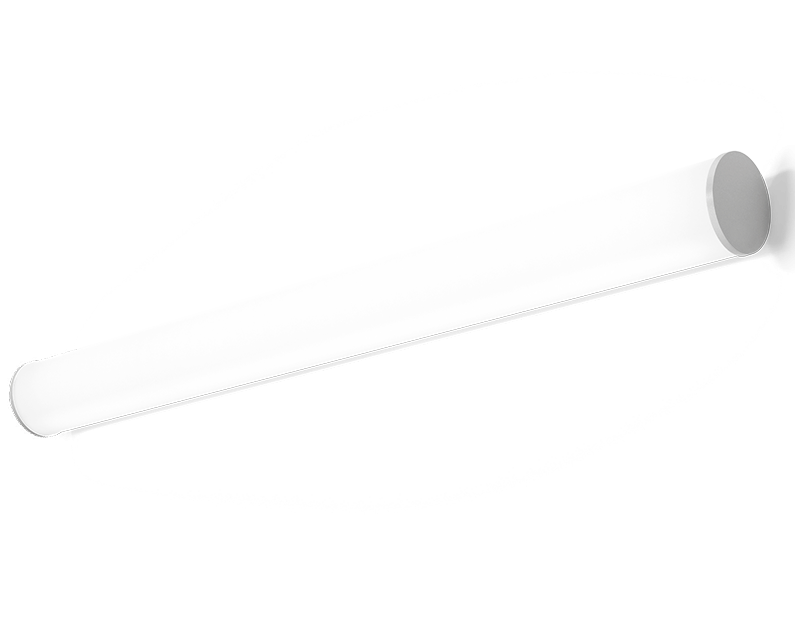

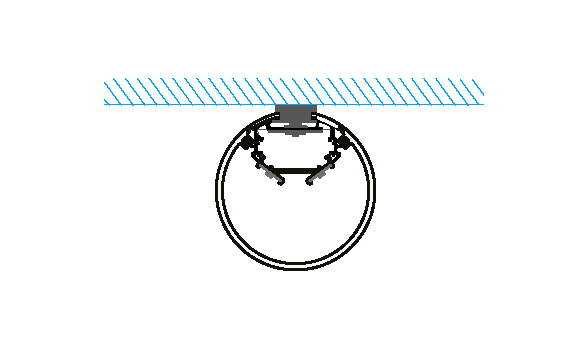

  • TUBE Surface

    TUBE surface offers direct lighting and three different color endcaps. Passive cooling with opal cover.

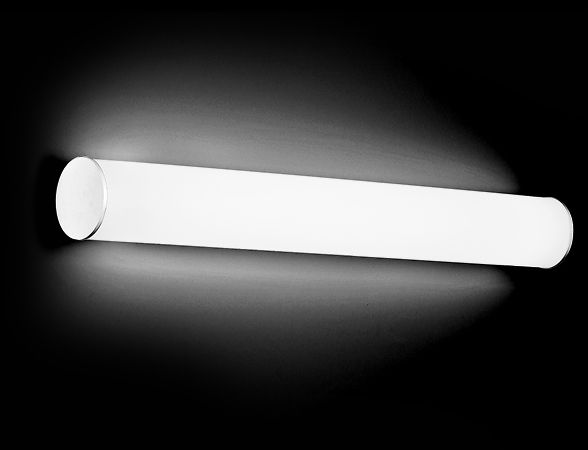

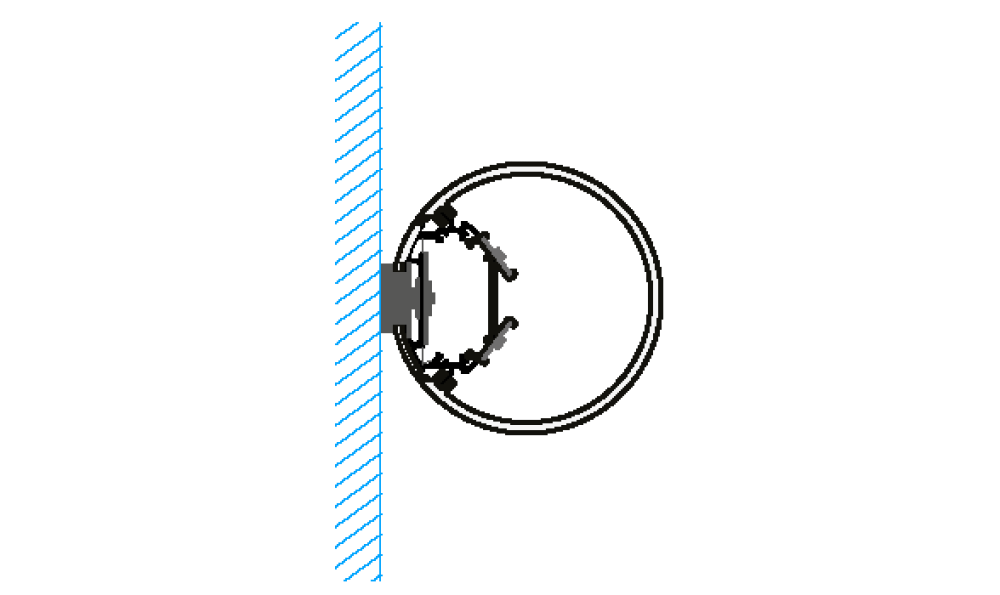

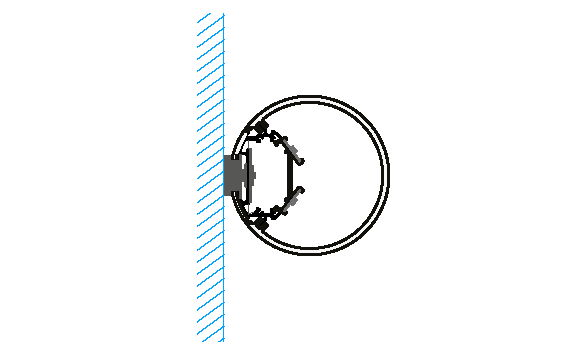

  • TUBE Wall

    TUBE wall offers direct lighting. Three different color endcaps available. Powdered coated white finish with passive cooling and opal cover.

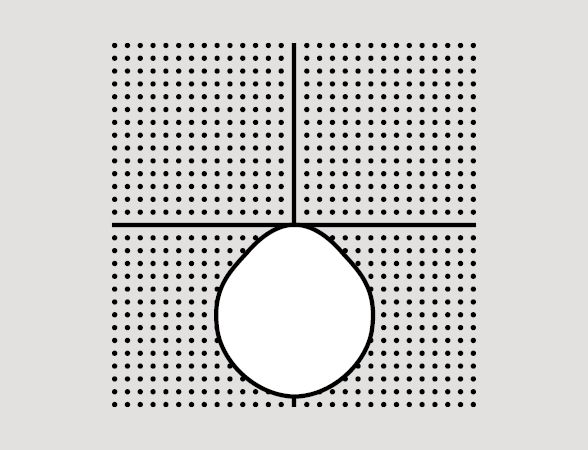

Mounting types

Available Apertures

TUBE 4.0

  • surface

  • wall

  • suspended

    Making your room stand out
