Everything is on track

M-LINE

The magnetic track

In 2017, BASO revolutionized channel lighting systems with magnetic track lighting: M-LINE.

An innovative product at the time, M-LINE has proven to be an advancement in
performance and production.

Installation and flexibility is as easy snapping in a magnet, no tools required. Move and adjust insets across the track easily with the palm of your hand. BASO's state-of-the-art, UL-certified high capacity driver, insets are powered as soon as they click into the track with centralized controls.

M-LINE combines affordable lighting solutions with customization, making it ideal for powerful and engaging lighting on a streamlined budget.

Adaptability meets Elegance

M-LINE is outfitted with high-quality track lighting safeties such as the magnetic track itself and catch grooves on both the track and insets that prevent the insets from falling out once they are employed.

The grooves fit smoothly into the system so that insets can easily be moved, rotated and tilted for customizing installations.

M-LINE Channels

The M-LINE track comes in two sizes and three mounting options.

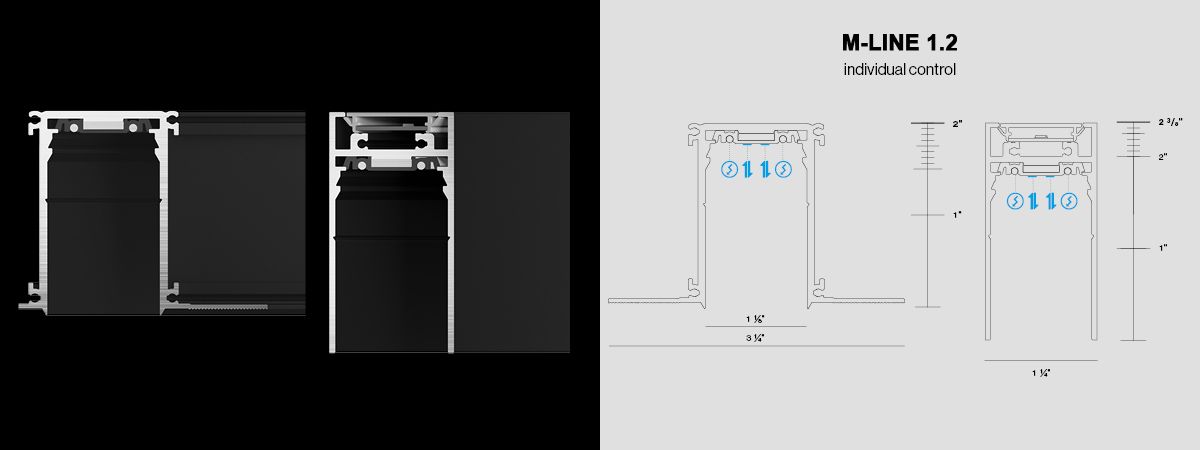

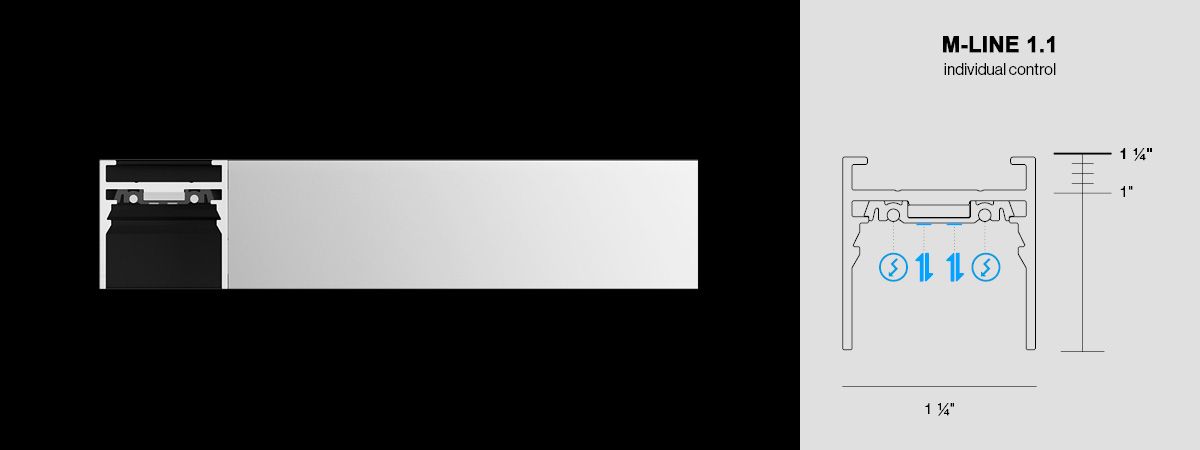

The 1.1 channel keeps the magnetic insets flush with
the track while the 1.2 cahnnel sets them inside the channel for a subtle finish.

Explore our channels

M-LINE 1.1 and 1.2 both have surface and pendant mounting solutions while the recessed finish is only available for M-LINE 1.2.

Trace around the room with the pendant and surface channels to integrate them in your interior design or use the recessed track for a subdued
and flush appearance.

M-LINE 1.1

M-LINE 1.2

Configurations

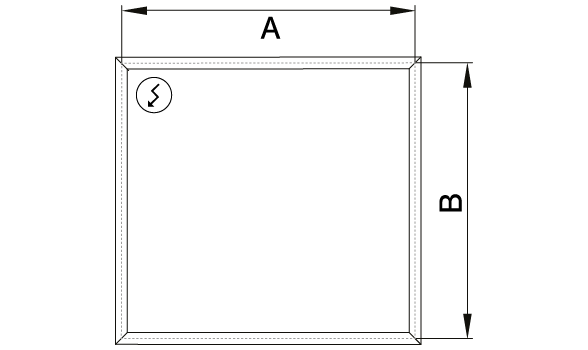

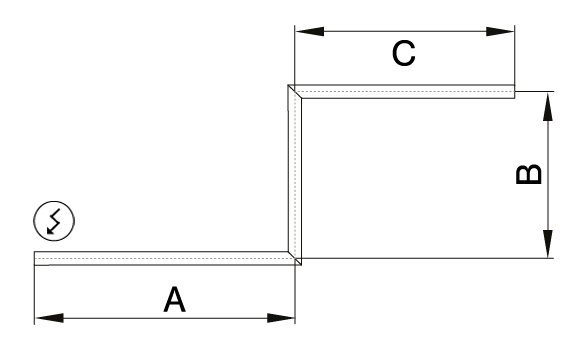

Along with custom cuts with BASO products, the options for creativity expand with CURVE configurations.

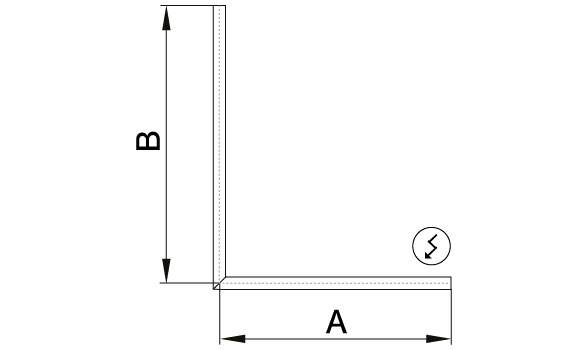

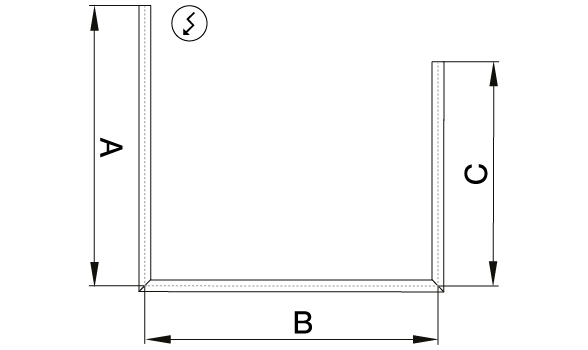

Create a soft bend around a corner with 45 degree turns in a C-FORM or sharp right angles with a J-FORM installation.
All powered on a linear luminaire.

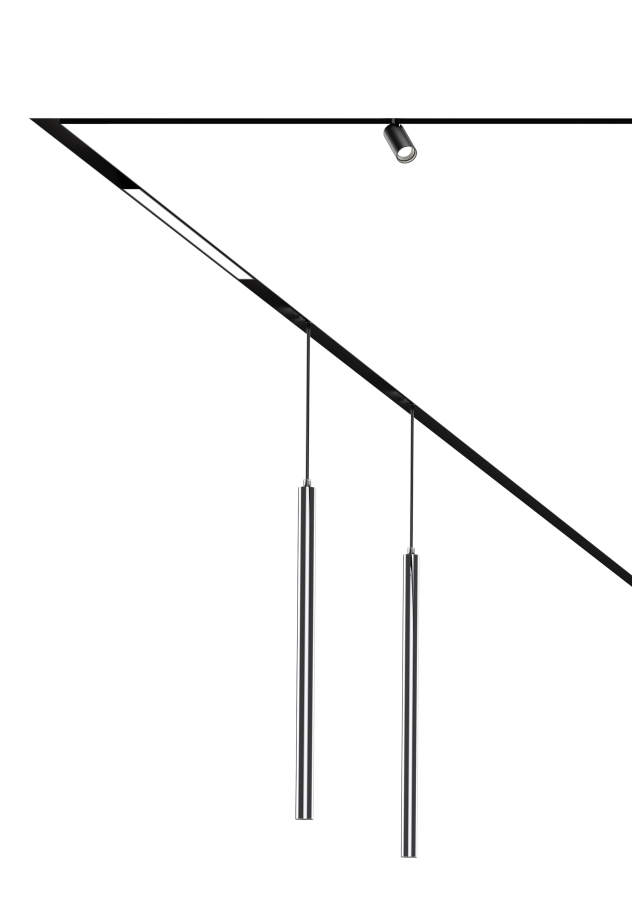

M-LINE Insets

Every inset for every situation. OPAL has impactful base lighting and a streamlined design for even light distribution that can be built off of with more adventurous products like TUBE and TULIP or draw the eye to a key design element using SPOT.

Construct brillant interiors, engaging museum installations and captivating retail spaces with our extensive library of insets.

Available Insets

Each M-LINE inset has a unique and specialized function. From the precision of SPOT, the linear finishes of OPAL and MULTISPOT, the two-axis sliding feature of TUBE, to the decorative applications of the pendant insets, M-LINE's family of magnetic insets can elevate any lighting environment.

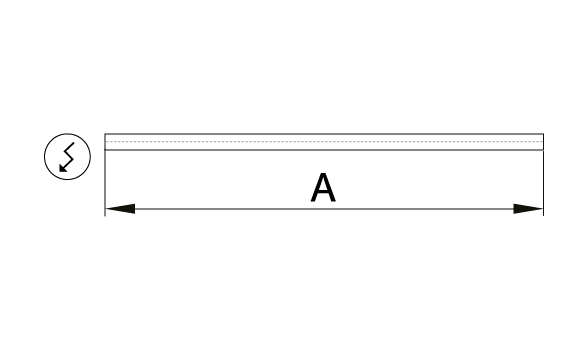

M-LINE 1.1 Linear

Cut sheet Configurator Instructions IES files REVIT files

1.1 Linear

M-LINE 1.2 Linear

Cut sheet Configurator Instructions IES files REVIT files

1.2 Linear

M-LINE 1.2 Linear Jut Out

Cut sheet Configurator Instructions IES files REVIT files

1.2 Linear Jut Out

M-LINE Linear Multispot

Cut sheet Configurator Instructions IES files REVIT files

1.1 Multispot

M-LINE Tube

Cut sheet Configurator Instructions IES files REVIT files

Tube

M-LINE Spot 32

Cut sheet Configurator Instructions IES files REVIT files

Spot 32

M-LINE Spot 55

Cut sheet Configurator Instructions IES files REVIT files

Spot 55

M-LINE Tulip

Cut sheet Configurator Instructions IES files REVIT files

Tulip

M-LINE Round

Cut sheet Configurator Instructions IES files REVIT files

Round

M-LINE Hex

Cut sheet Configurator Instructions IES files REVIT files

Hex

M-LINE Tulip

M-LINE TULIP is a decorative inset that is idea for a charming interior, like a restaurant or a gallery. The long barrel focuses the light with elegance and precision.

Line up multiple TULIP insets or mix and match with SPOT and LINEAR easily using the magnetic track for a creative lighting solution.

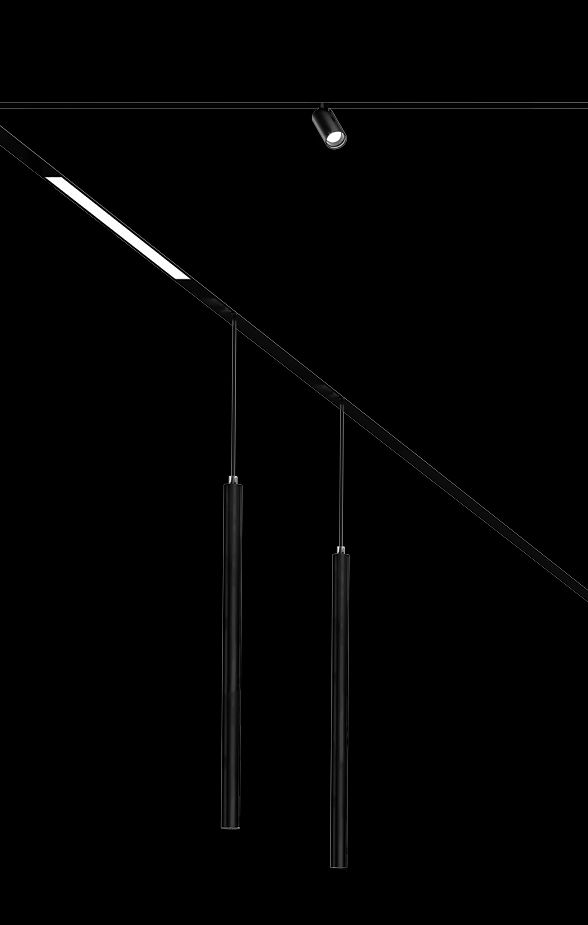

M-LINE Tube

Made for enjoying light

The M-LINE TUBE inset allows light to become a design element when employed between two M-LINE tracks. TUBE can rotate on one axis or be moved between two tracks. Do more than light the room, design the room.

Design coming full circle

TUBE insets attach to the light rails inside the profile magnetically without any tools. You can rotate them 360° and move them freely on one end. Use the dual-axes track to angular lighting design.

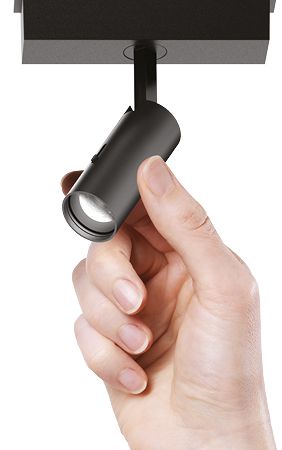

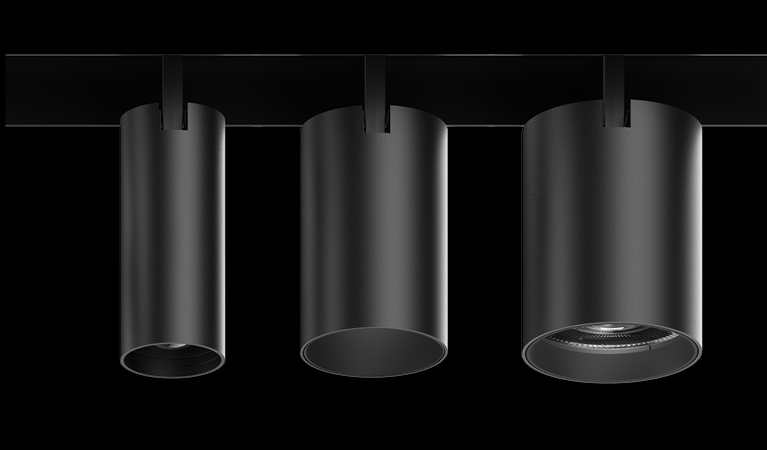

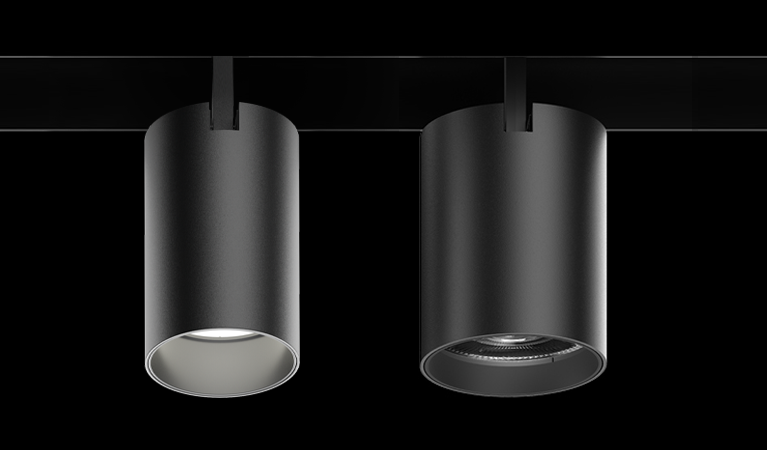

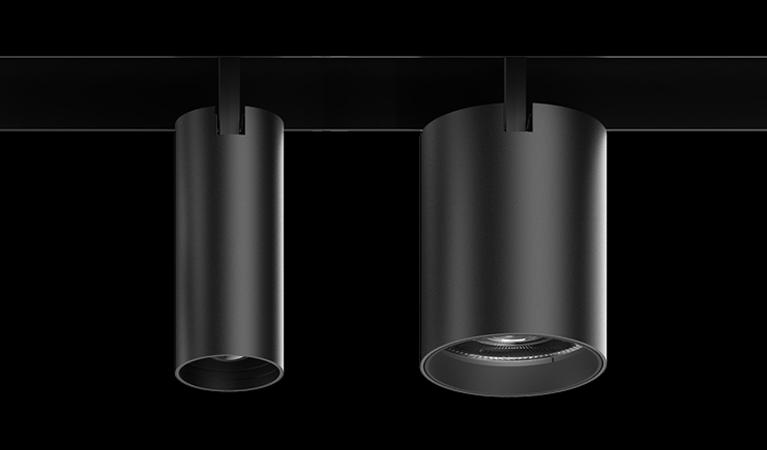

M-LINE Spot

Small size, high output

We integrate high-end technology into even the smallest spots. The beam angle of our
SPOT 32 and 55 can be tilted up to 180 degrees and rotatable by 360 degrees, which gives you the flexibility to react to changing lighting requirements.

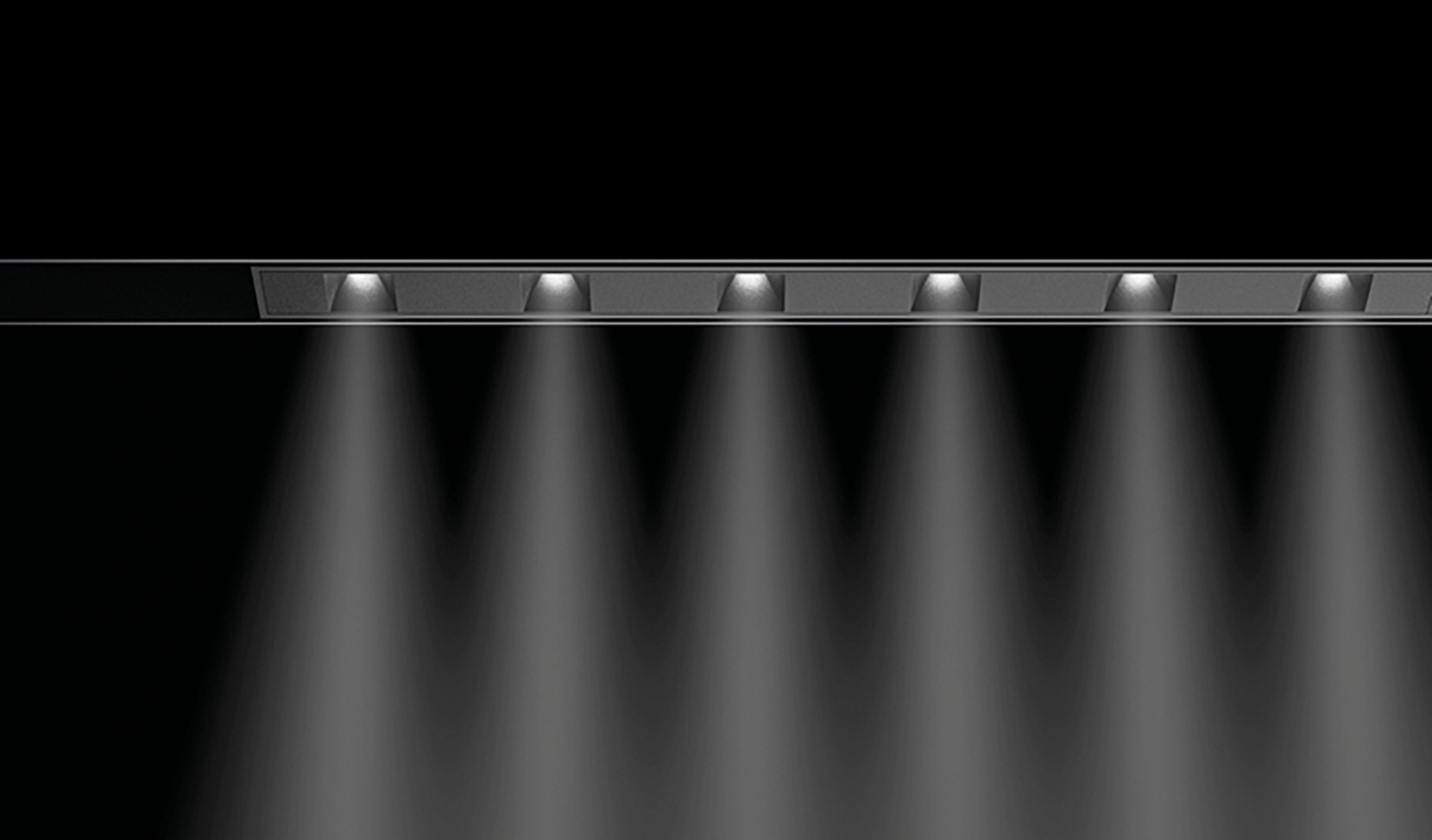

M-LINE Multispot

MULTISPOT insets feature a reduced design vocabulary. LEDs retreat into the background, lending ceilings a perfectly subdued look.
The output effectively highlights displayed objects in various settings.

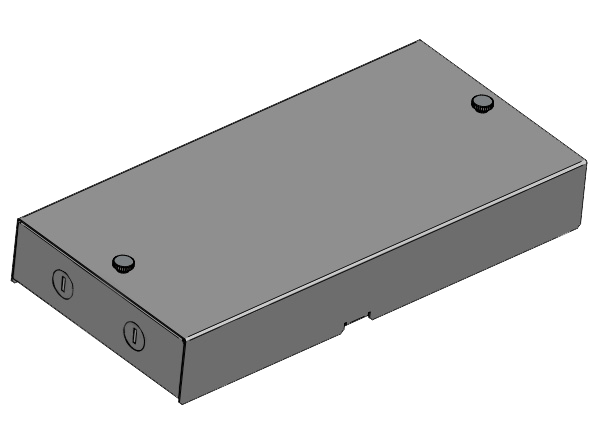

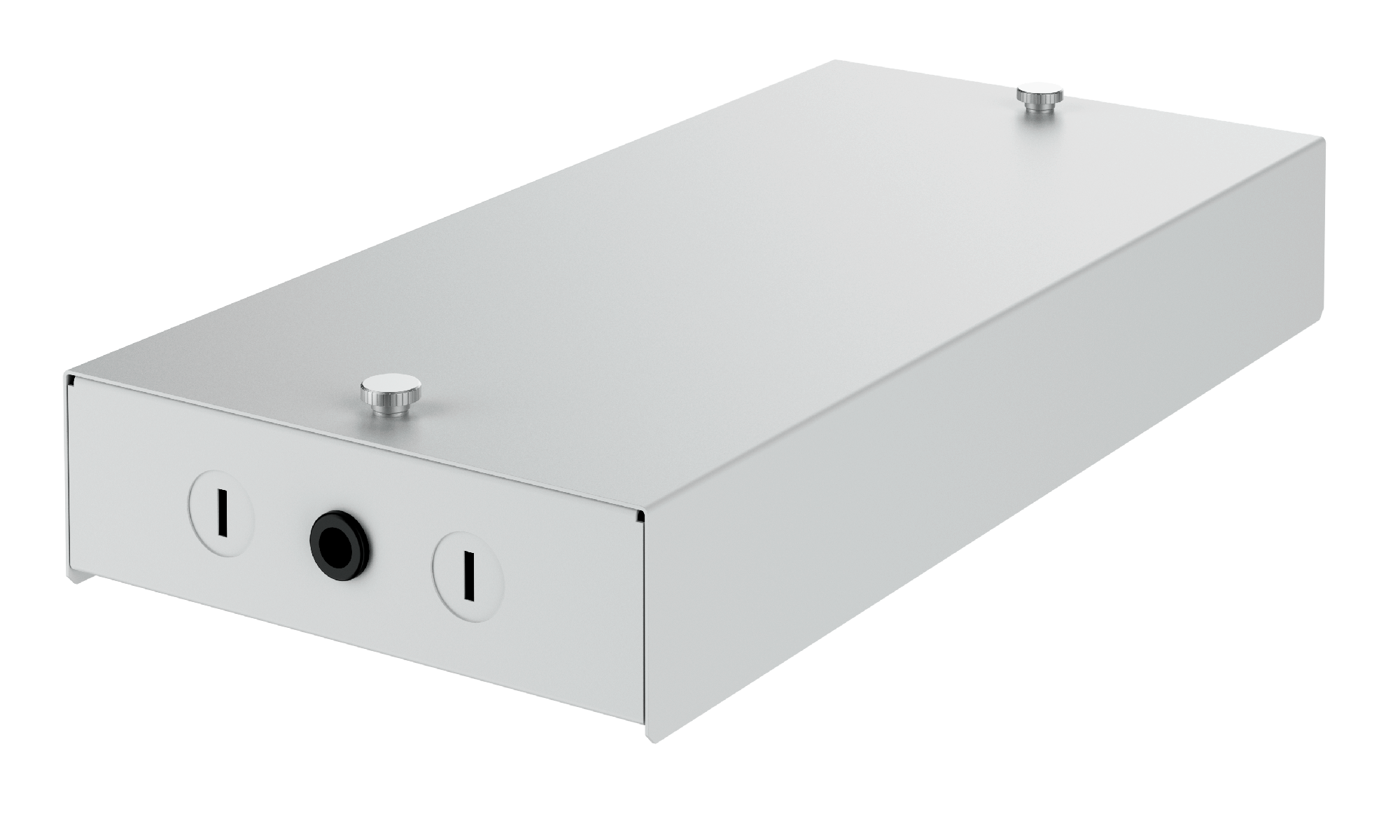

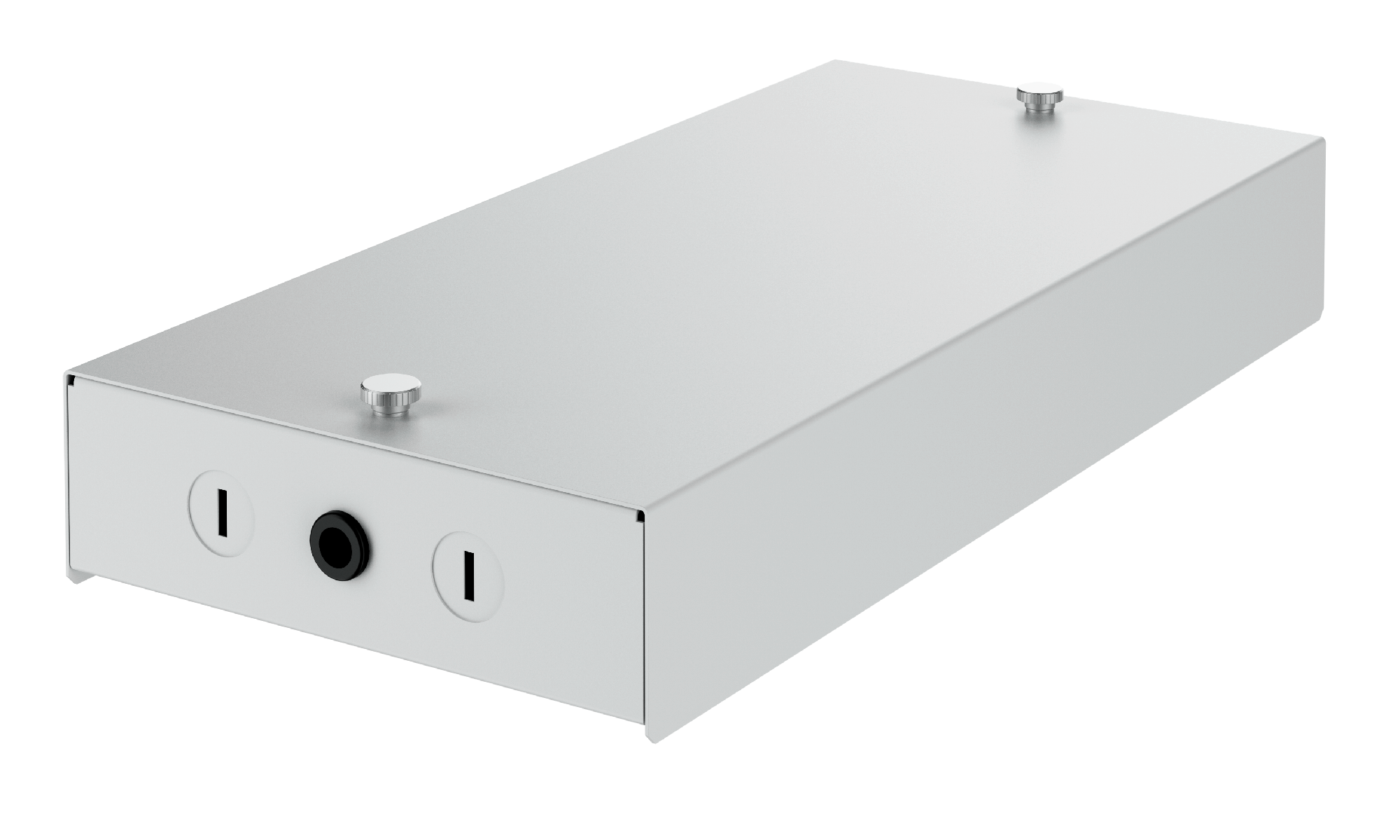

The M-Line Power Supply

The M-LINE power supply provides magnetic track with the voltage to apply the insets directly to turn them on. It also has a 260W driver capacity and the highest performance in the industry.

This high capacity makes installation cost-effective; reduce labor costs with one power supply instead of the three usually needed for a similar magnetic track.

Track control is easy to adjust as well. The power supply is installed remotely and uses either a single or dual track control. The channel can be changed by simply rotating the inset 180 degrees.

Dimming Control

The dimmer switch for line control is provided by other manufacturers.
As a result, M-LINE integrates easily with switches, allowing for customized dimming options on up to two M-LINE channels.

Making your room stand out

Project inspiration

iManage Lounge

NYU Bobst Library

ON Running - Portland

Tiptree inc.

Alcove - Hudson Commons

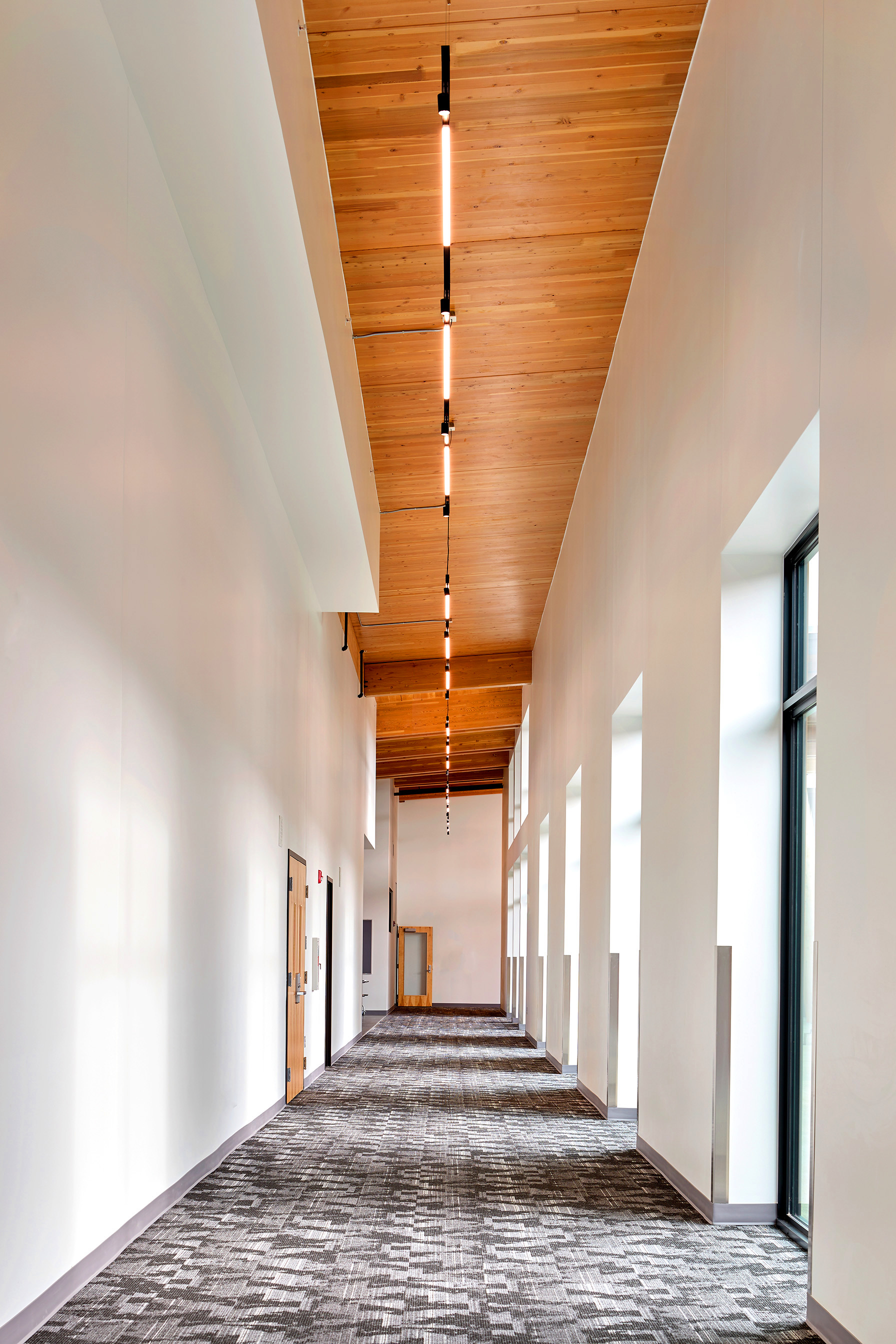

Quileute Tribal School
