Fluid Lighting Design

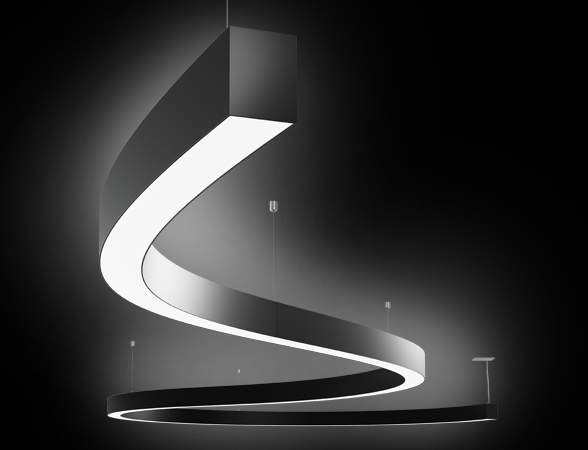

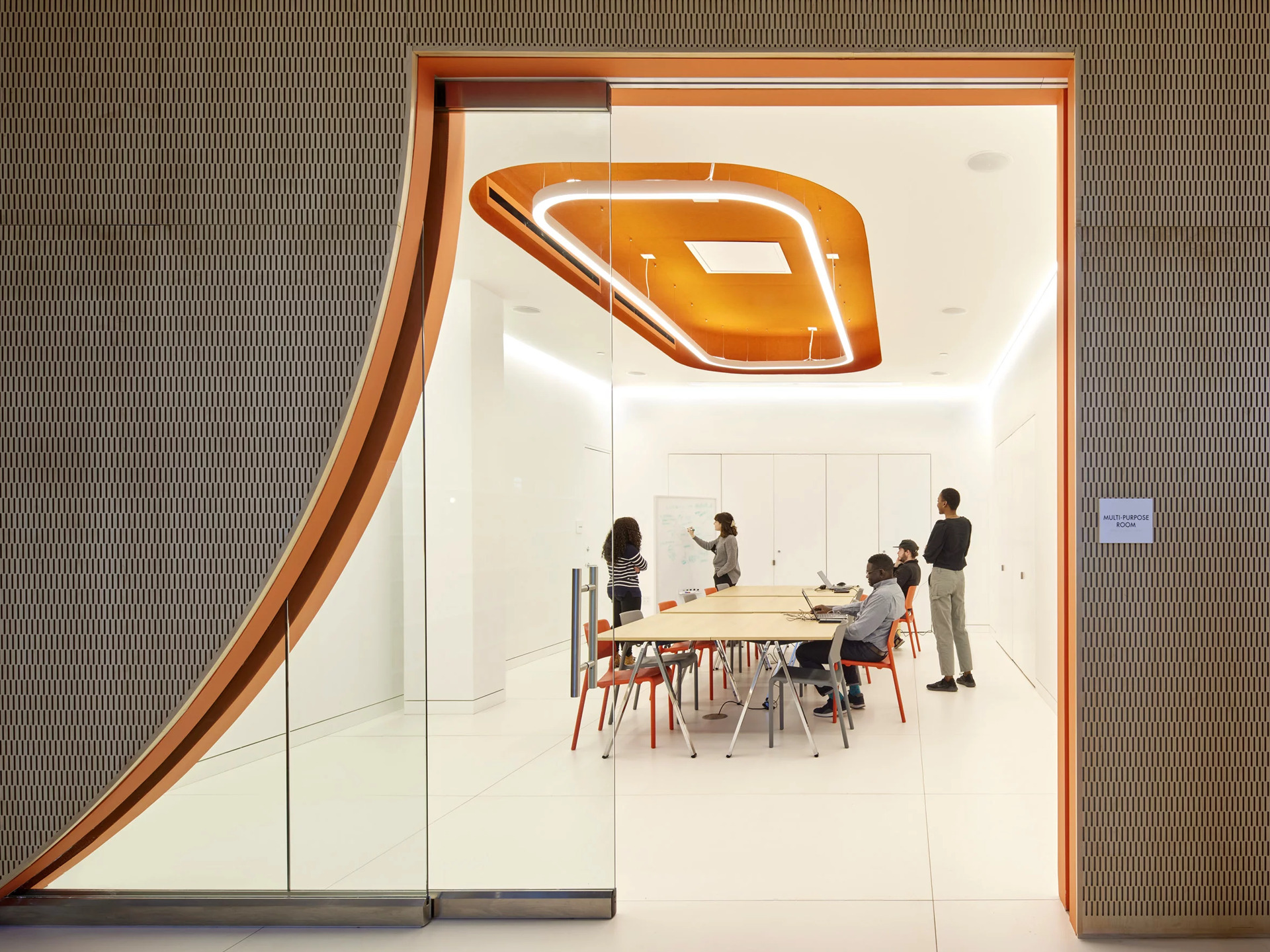

CURVE can be installed with a custom radii as a standalone product or to contour a room. Combine it with BASO with ease.
CURVE has over 25 standard form and configurations for installation.
Mixing technical design with options to create and improvise leads to a product with limitless solutions.

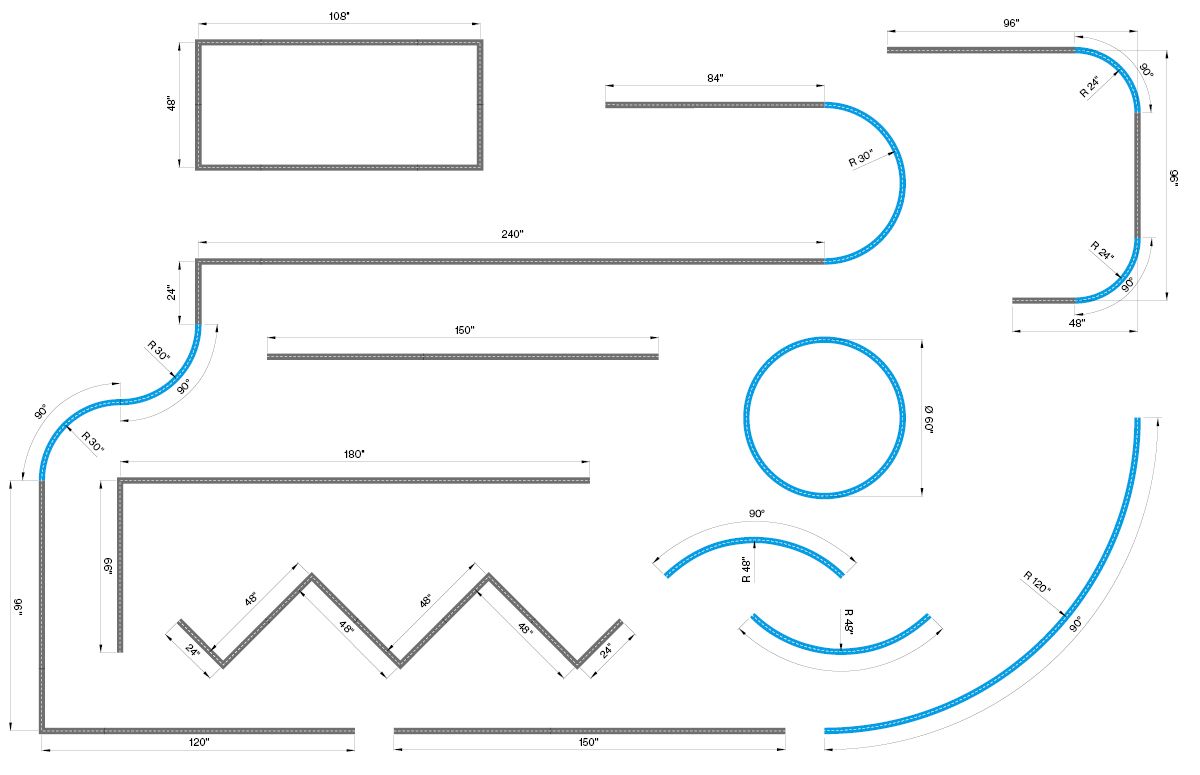

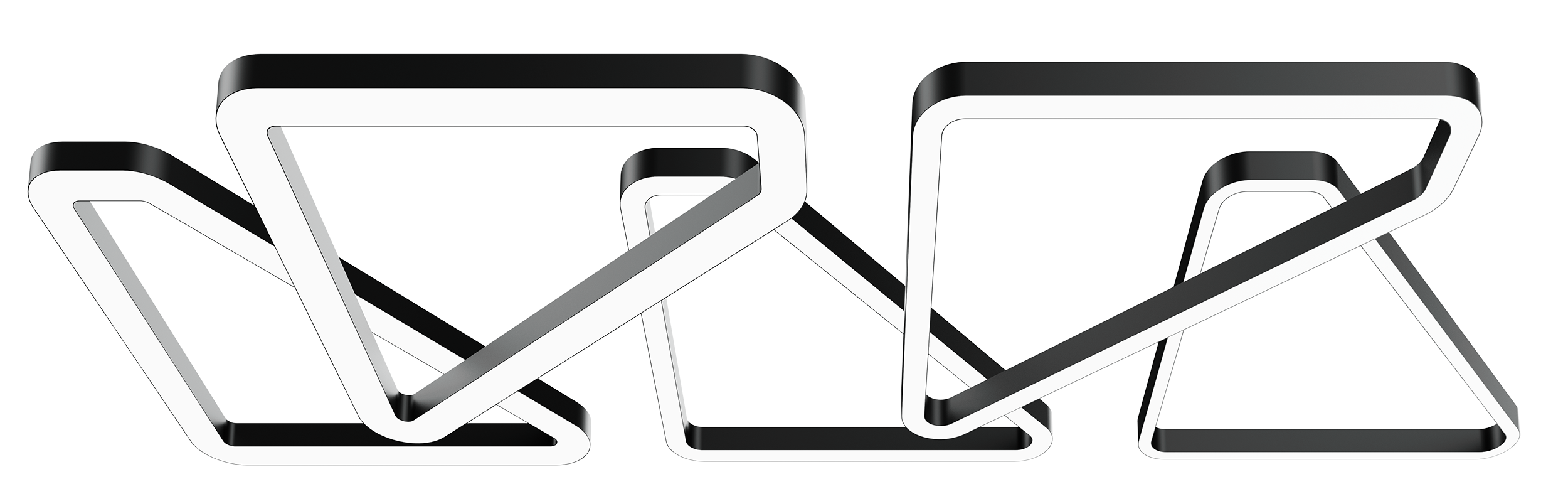

Configurations
Along with custom cuts with BASO products, the options for creativity expand with CURVE configurations.

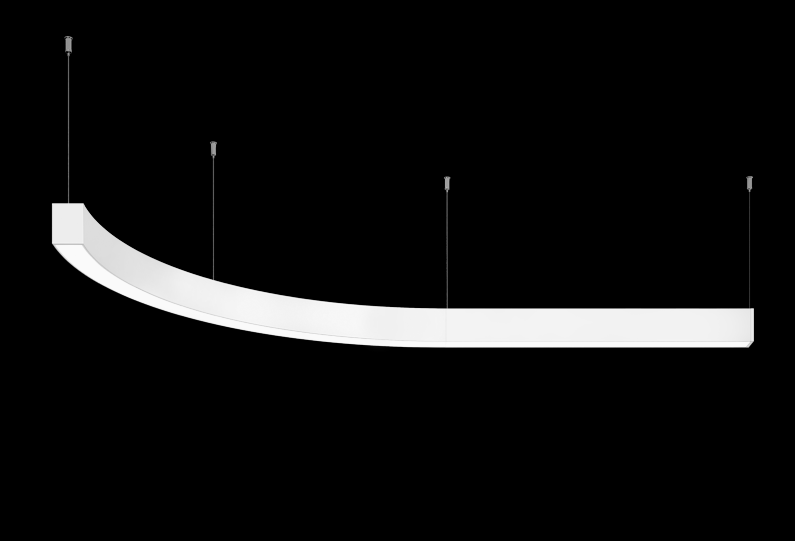

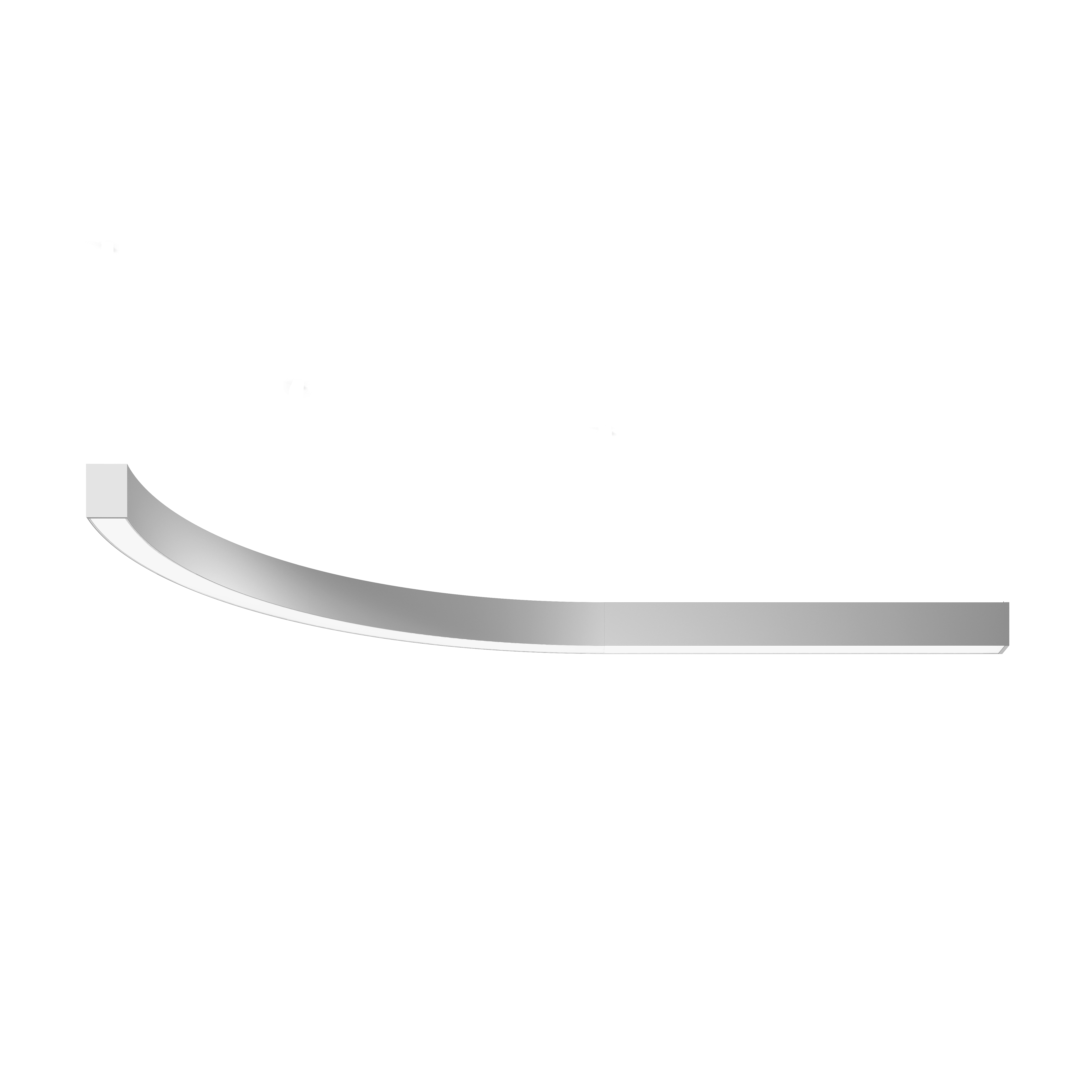

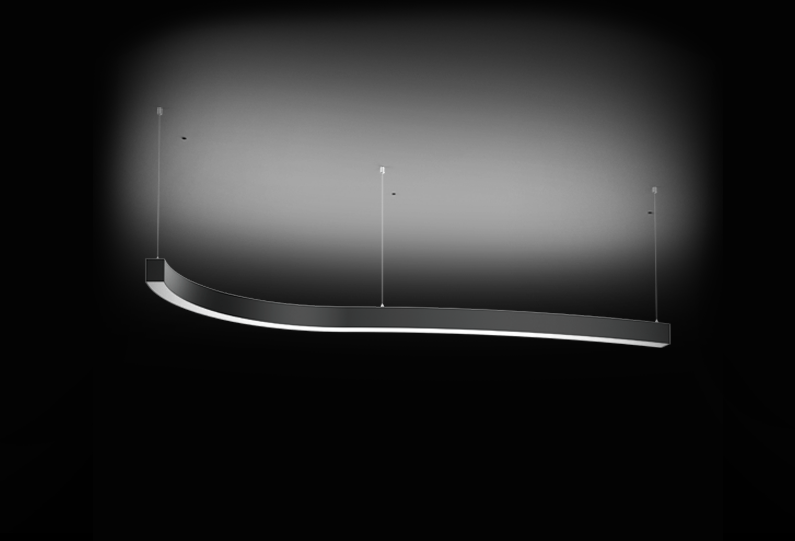

Create a soft bend around a corner with 45 degree turns in a C-FORM or sharp right angles with a J-FORM installation.
All powered on a linear luminaire.
The Configurations of CURVE
Now that CURVE comes in all three sizes, it is the perfect companion to BASO. Line up any linear fixture with CURVE using our three mounting options or an indirect finish with the opal lens. Customize the room with the standard CURVE offerings or bend around a smooth corner with the
new PERIMETER CURVE luminaire.
new PERIMETER CURVE luminaire.
Curve 1.5 Surface

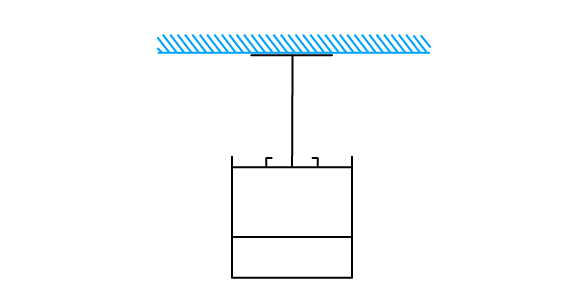

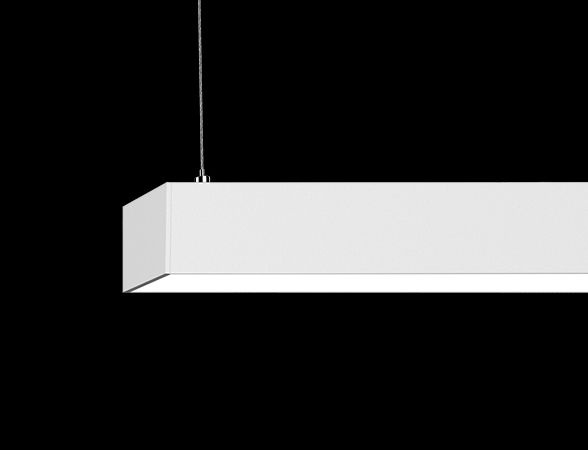

Curve 1.5 Pendant
Curve 1.5 Direct-Indirect

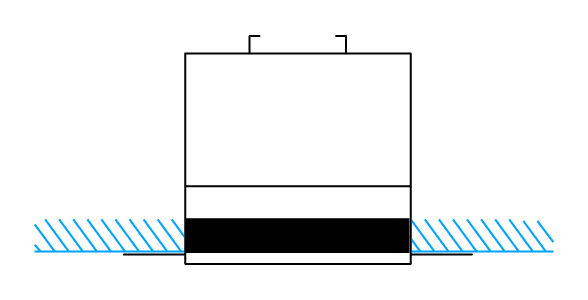

Curve 2.5 Recessed

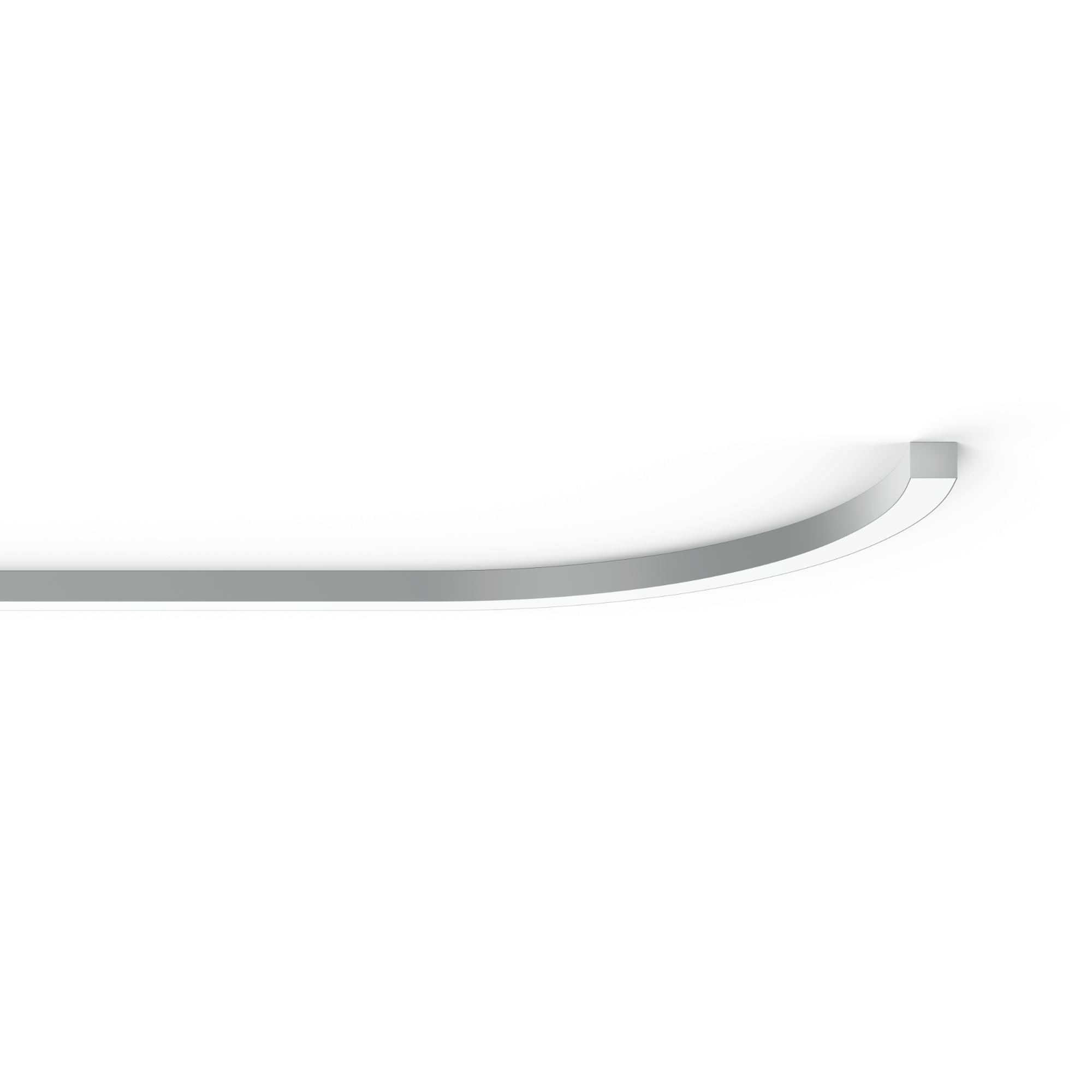

Curve 2.5 Surface

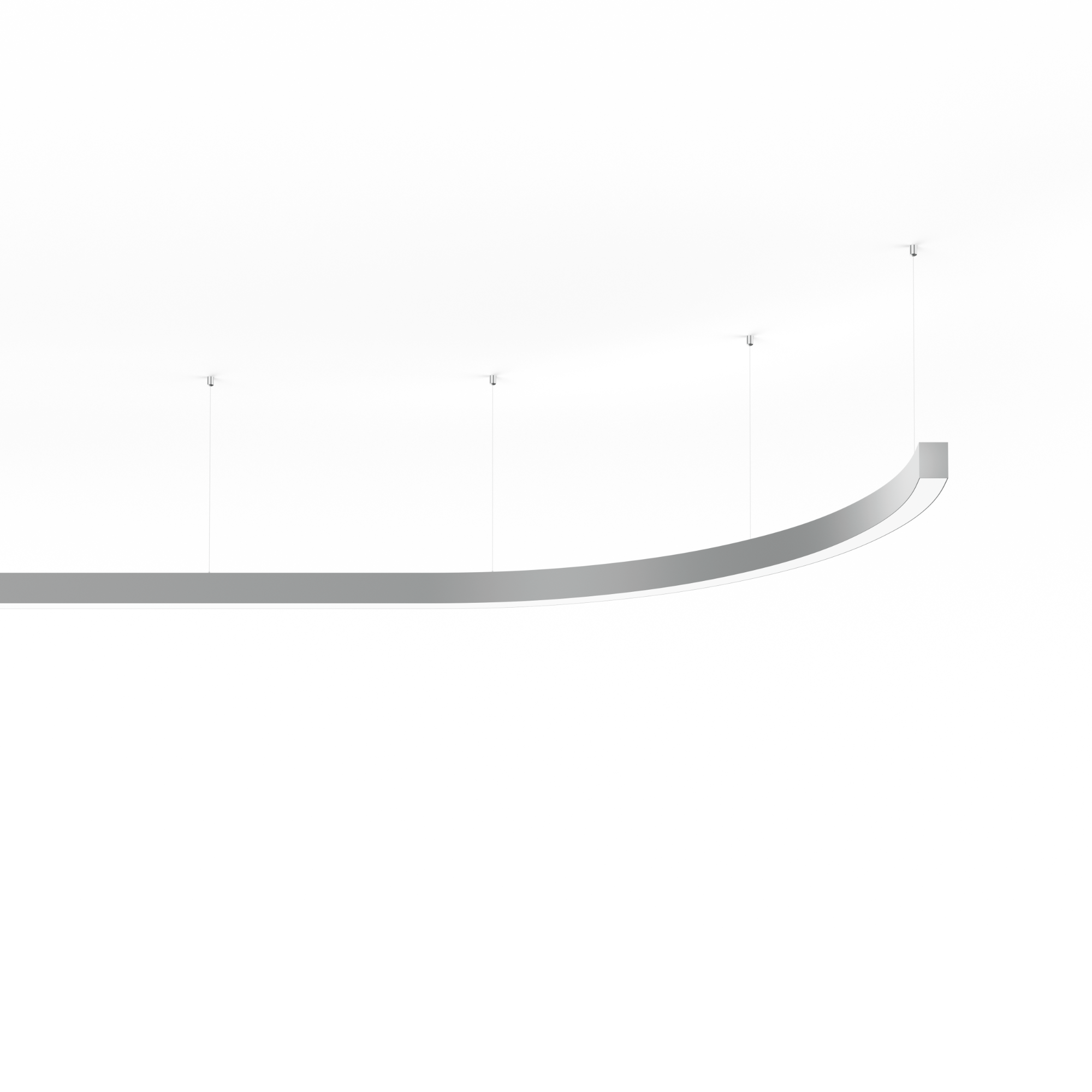

Curve 2.5 Pendant

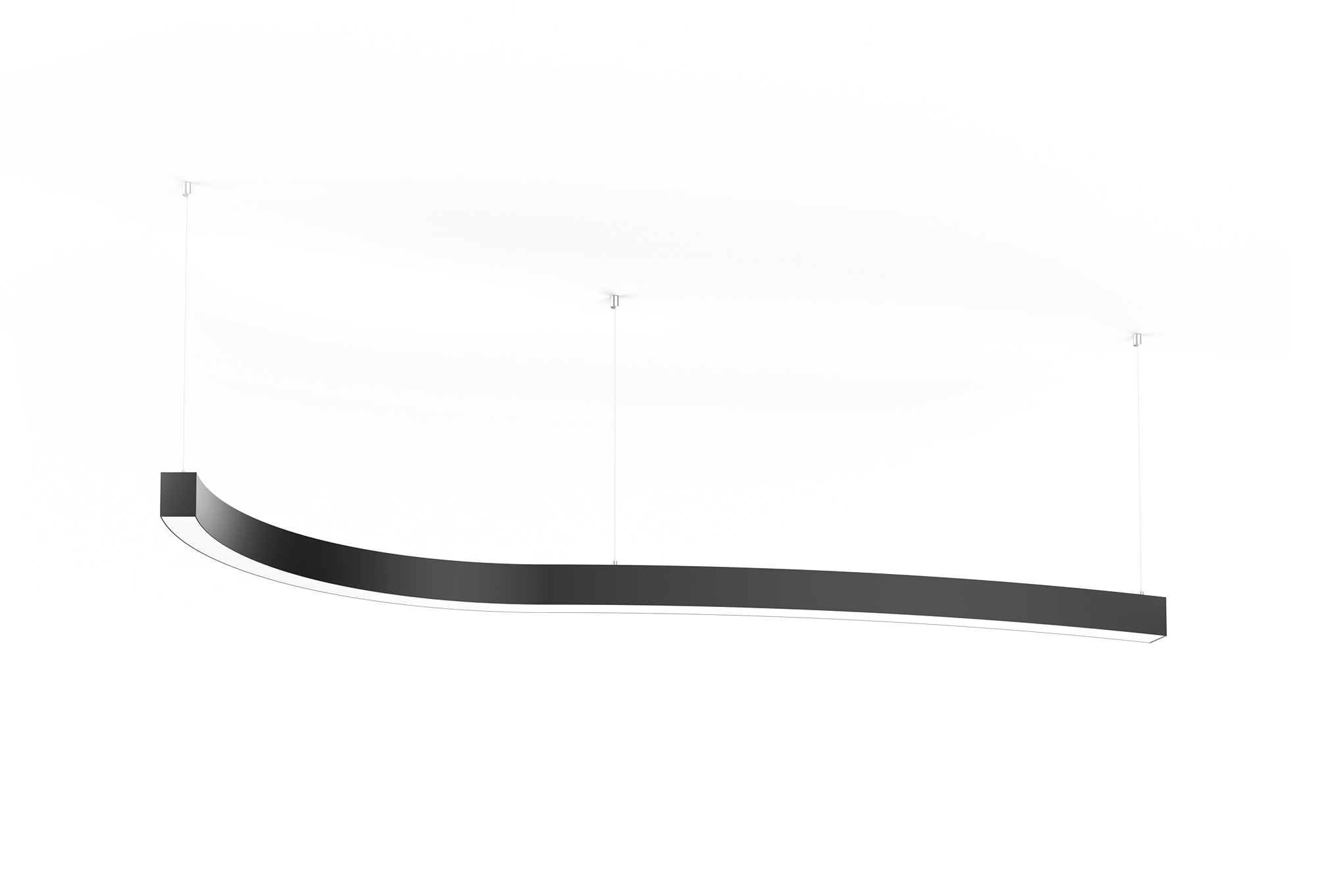

Curve 2.5 Direct-Indirect
Curve 4.0 Recessed

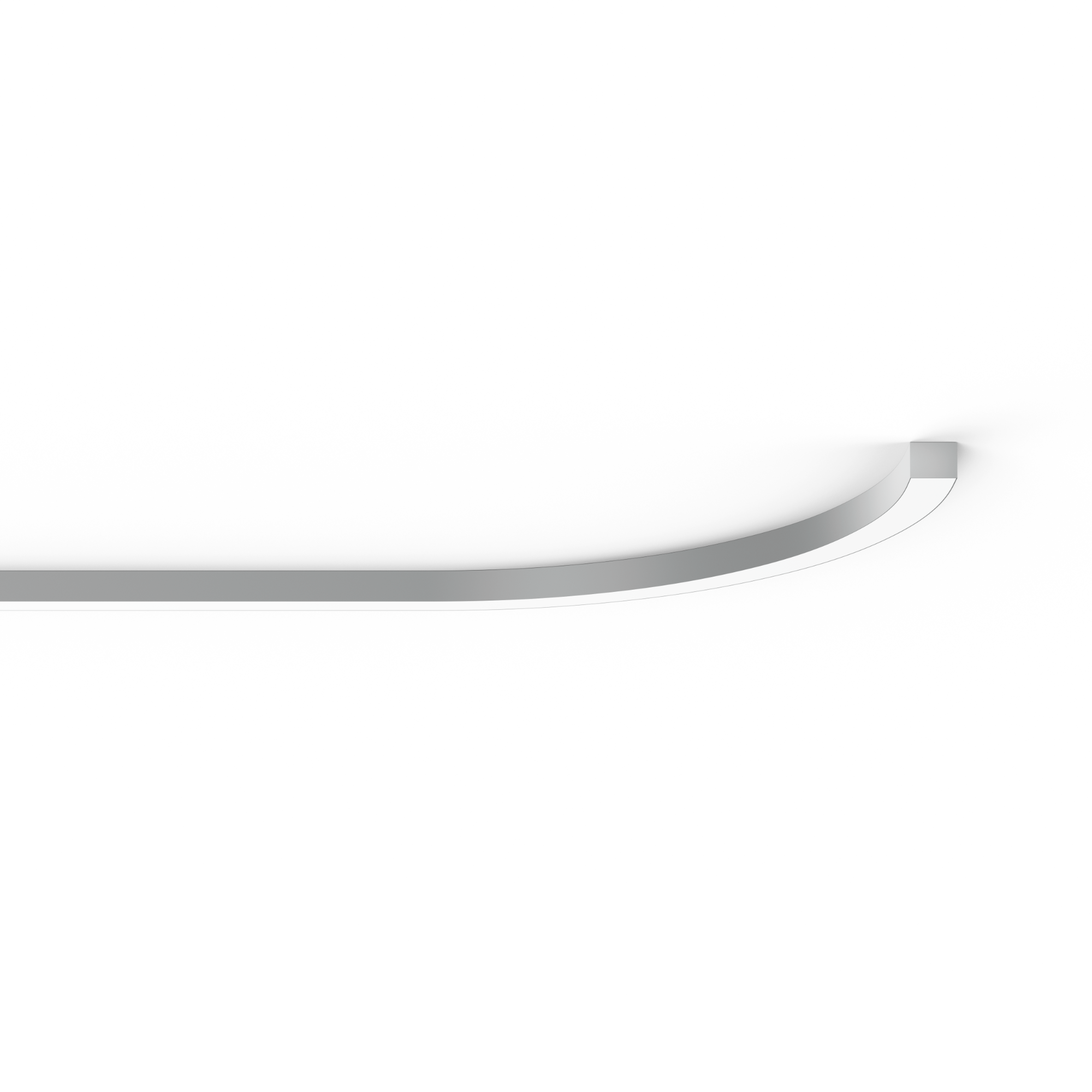

Curve 4.0 Surface
Curve 4.0 Pendant
Curve 4.0 Direct-Indirect
Perimeter Curve 2.5 Trimless
Perimeter Curve 2.5 Trim
Outstanding Performance
Versatility is what makes CURVE and the great SHAPES family stand out within our lighting systems. The same linear lighting components found in BASO can be integrated in CURVE and SHAPES for creating original lighting design.
SHAPES emits outstanding light quality and performance of up to 128 lumens per watt using high efficiency LEDs.
LED
We only use latest generation of high-efficiency LEDs with color reproductive values of CRI > 80 in color temperatures 27 K, 30 K, 35 K or 40 K. LEDs easily last up to 40,000 hours at 80 % lumen maintenance (L 90).

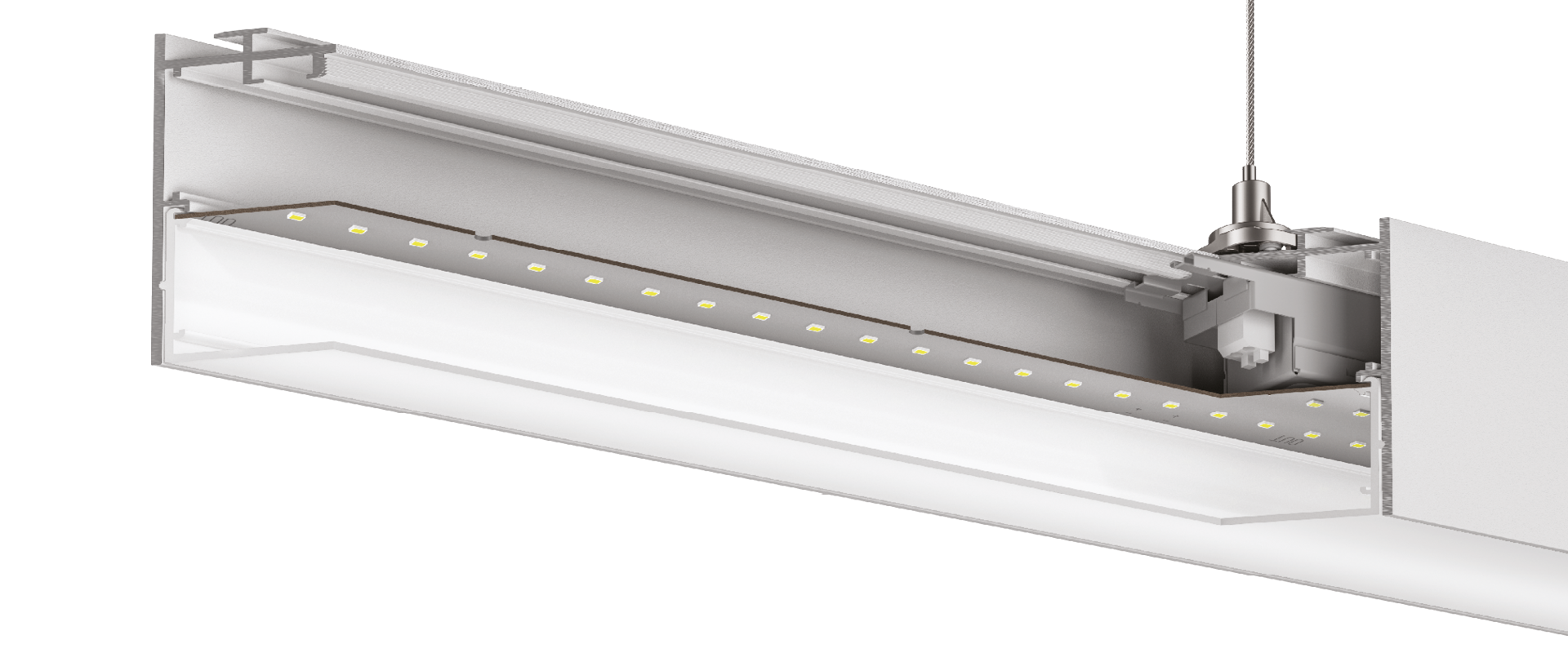

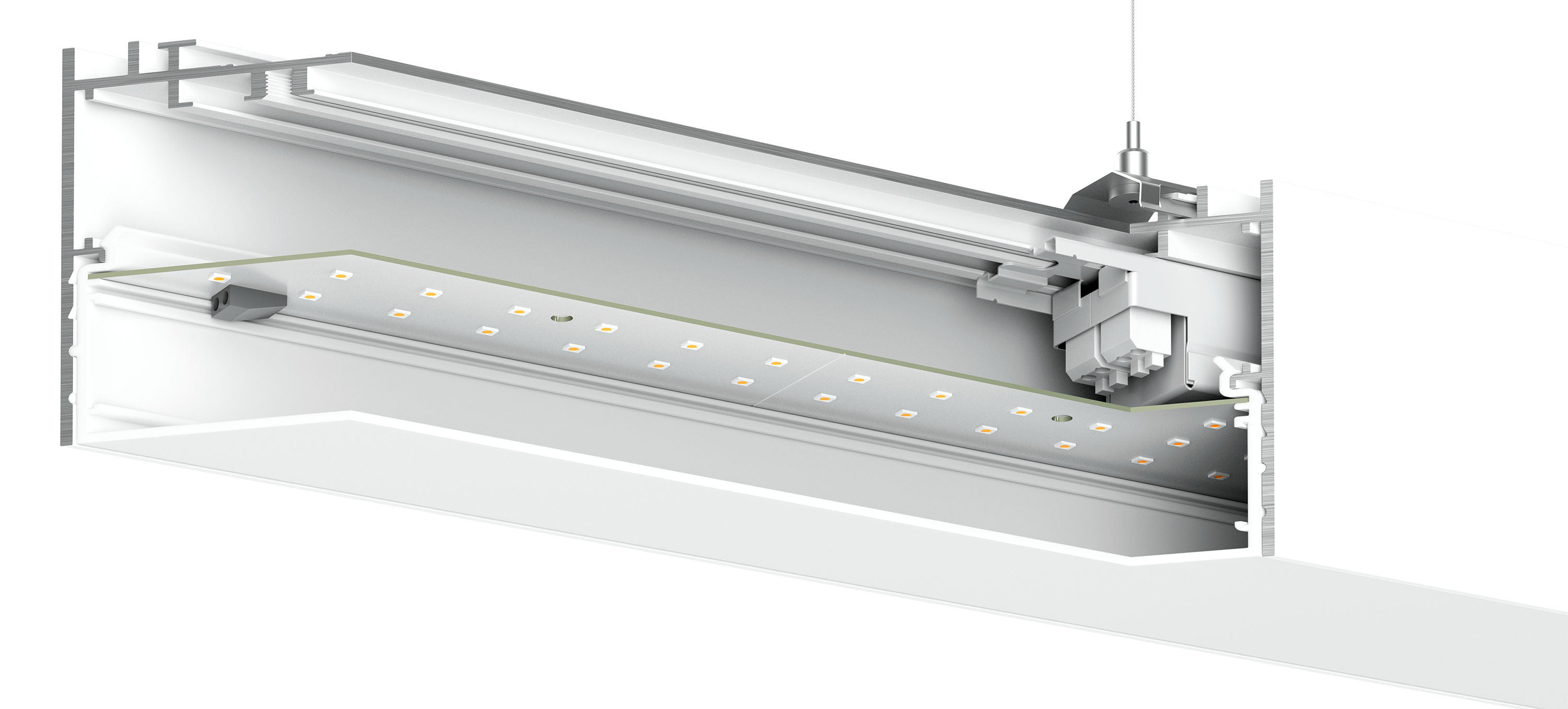

Circuit Board
Aluminum-based Circuit boards are fully integrated and reduce the thermal resistance between LED and the aluminum body. They in turn lengthen the lifespan of the LEDs and enhance the performance of the system as a whole.
CHANNEL
Profile housing made of extruded aluminum in angular design with 2 ⅜" wide light opening, light-tight gasketed aluminum end cap closure without visible screws. Designed for continuous lighting systems. Available standard in powder-coated gray, white or black.
OPAL COVER
The flush-mounted high-performance opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion. By integrating the LED board into the cover, we’ve reduced the weight of the fixture and by being a two-part system, decreased the time it takes for installation.
LED DRIVER
The driver is attached directly to the channel. The integral driver is hidden and does not take away from the luminaire's sleek appearance.
CABLE SUSPENSION
Flexible aircraft cable suspension, 78" long. Luminaire height can be adjusted without tools. The suspension cables attach to the luminaire via spring clips and can be positioned freely.
The flush-mounted high-performance opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion.

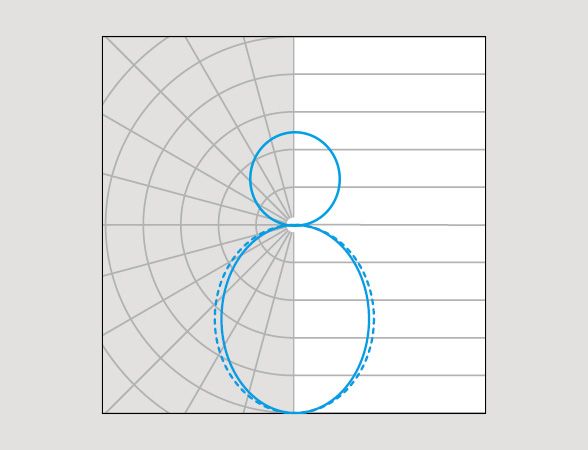

The integrated uplight offers a widespread indirect glow that distributes evenly across the ceiling around the fixture. Use the opal uplight to disperse more light across the space.
CURVE Dimensions

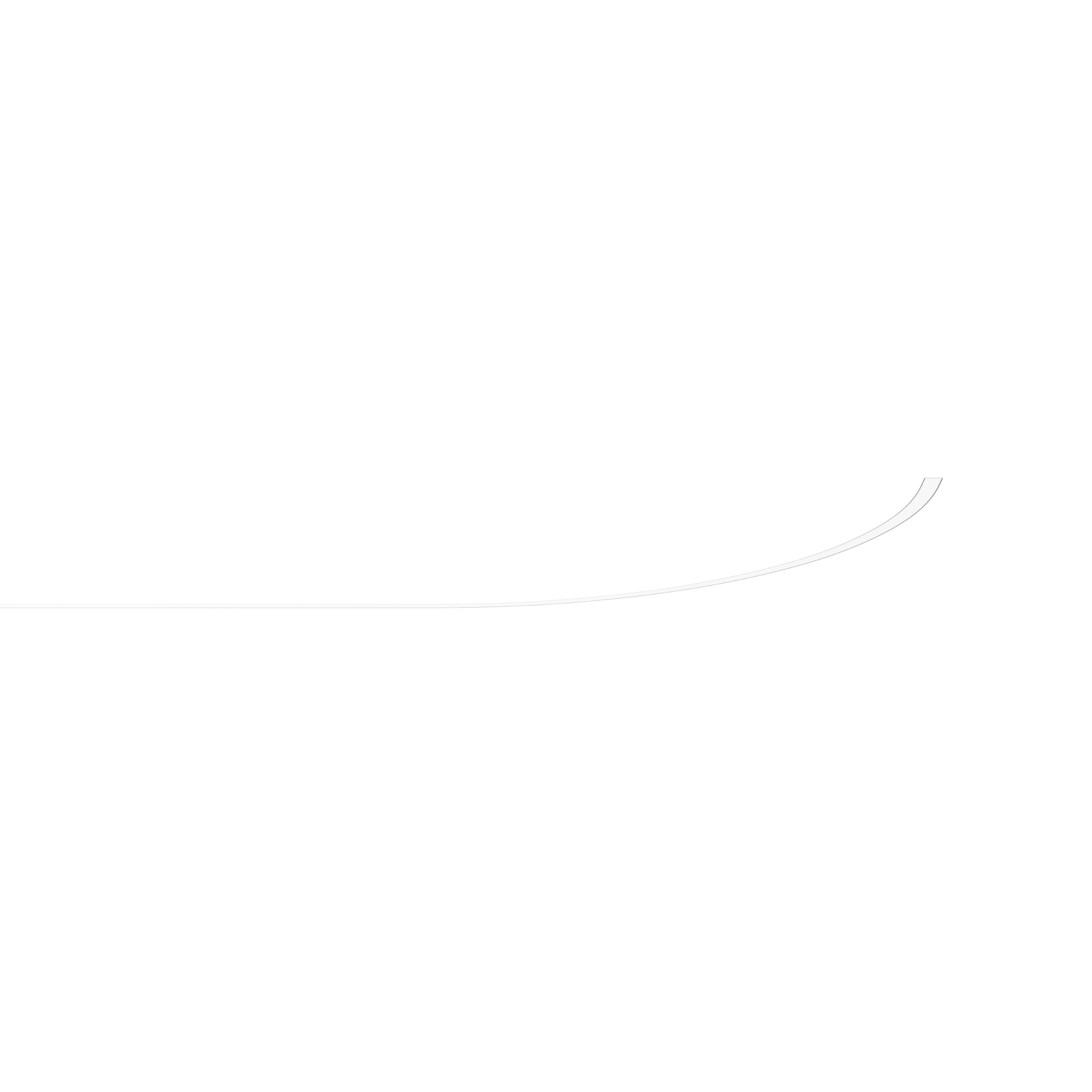

CURVE has a range of radii and arcs, from eighteen inches and 22.5 degrees all the way up to six feet and 90 degrees.
