SQUARE
SQUARE is the natural extension of the variability of the ROUND and HEX families of products. Available in three sizes (1.5, 2.0 and 3.0) and with the addition of surface, pendant and wall mounting, SQUARE offers the excellent features of ROUND and HEX with a new design. For additional highlights, indirect lighting can be added to the luminaire.
Right Angles in three sizes.
SQUARE provides uniform lighting to a room with a cutting edge design that mixes simplicity with efficiency. It has a low profile that blends into every wall or ceiling it's installed into with a click-in installation and removal tool for surface mounts. SQUARE comes in three widths and three mounting options.
Light Body
The lightweight deep-drawn housing makes installation less of
an effort.
LED Driver
The LED is centrally integrated into the structure on top of the luminaire.
Release Tab
The locking keyhole mechanism is simply
released by pressing the release
tab, facilitating easy disassembly.
Opal Cover
SQUARE is available with a
translucent opal lay-in cover for
uniform illumination.

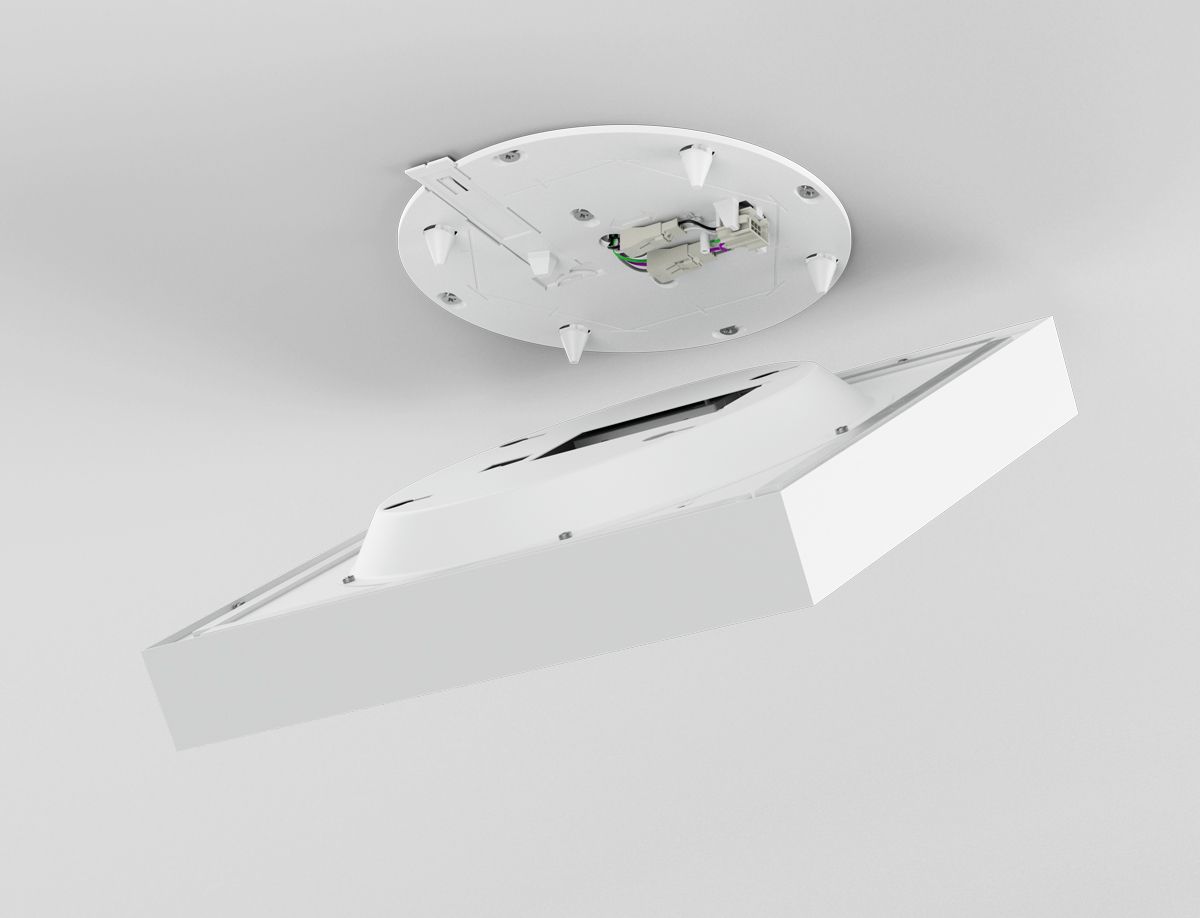

Mounting Plate
The surface mounting plate has an
integrated electrical connection
and attaches to the ceiling.

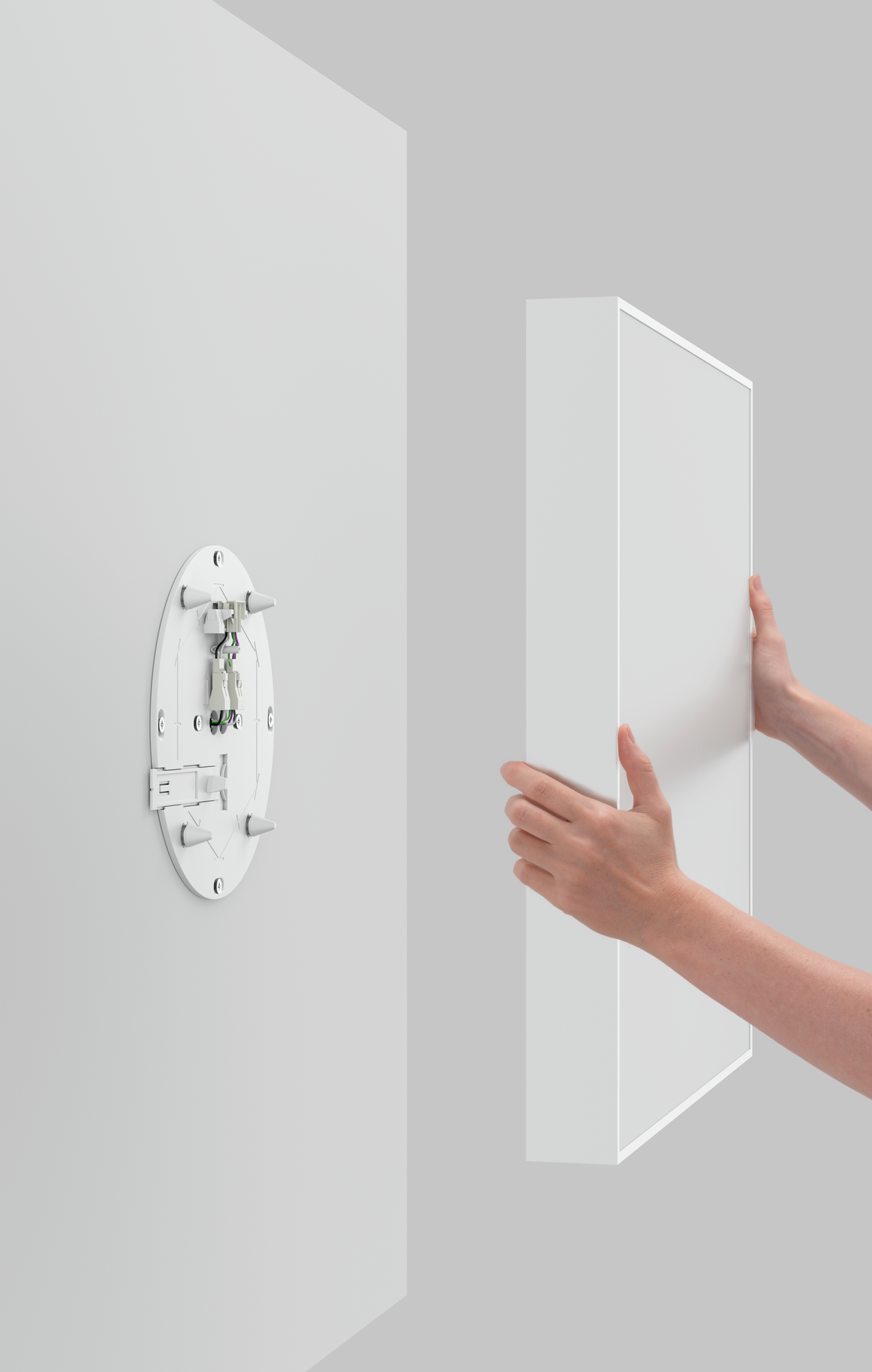

A patented smart keyhole
mechanism makes mounting,
locking and connecting the light
body a matter of just one click.
Profile Frame
The frame of the SQUARE is
made of a high-quality powdercoated aluminum ring, bent and welded in-house. Available in
different colors.

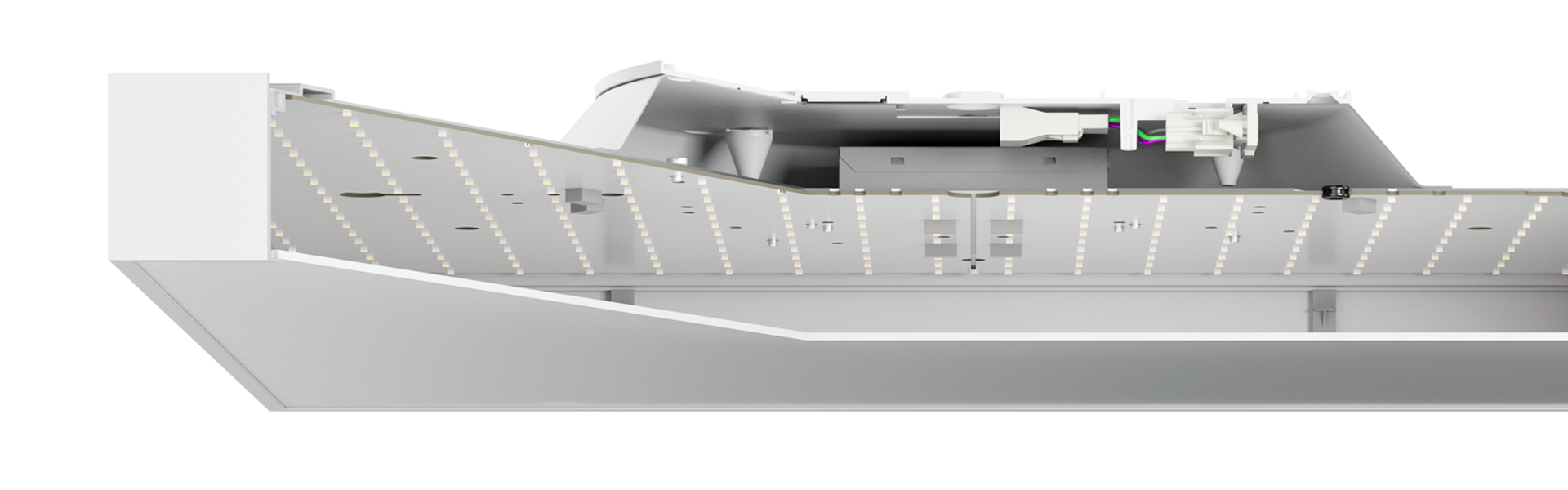

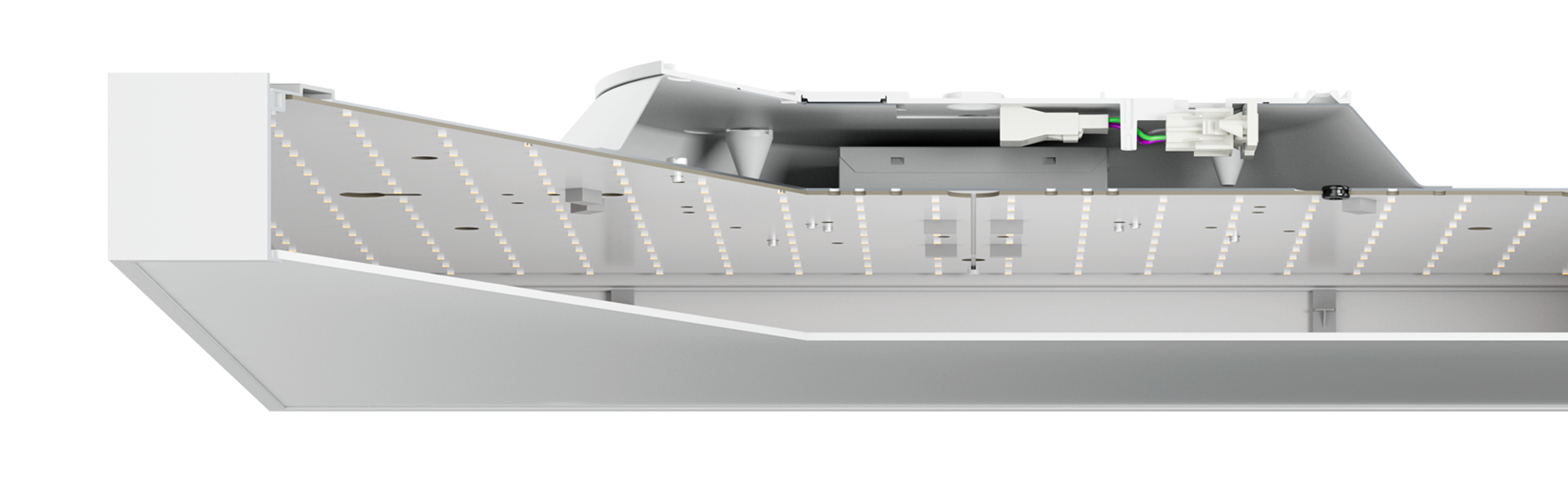

Circuit Board
We DO cut corners with our SQUARE circuit board. Unlike other round fixtures, you'll find a round, highly reflective, circuit board that fills the housing end to end for perfect, consistent illumination with no dark spots.
LEDs
Our standard light sources are high efficiency LEDs with a color rendering index of CRI ≥ 80 and color temperatures of 3000K 3500K and 4000K. They give SQUARE a luminous efficacy of up to 124 lm/W.
Indirect Light
The indirect light component for
illuminating the ceiling consists of
a circular arrangement of LEDs
with a protruding opal cover.
Optics with outstanding performance
SQUARE achieves an exceptional luminous efficacy of up to 124 lumens per watt. This low energization gives the LED a low operating temperature that boosts lighting efficiency. Additionally, SQUARE has highly reflective
PCB coating that provides 90% reflectivity and the high-performance opal cover emits uniform illumination.
Configurations of SQAURE
SQUARE is available in two mounting options with a range of finishes, such as direct-indirect, surface and acoustic. Additionally, the SQUARE pendant can be mounted onto an R-LINE track as a specialized inset.
Explore each of these solutions and specifications below.
Explore each of these solutions and specifications below.

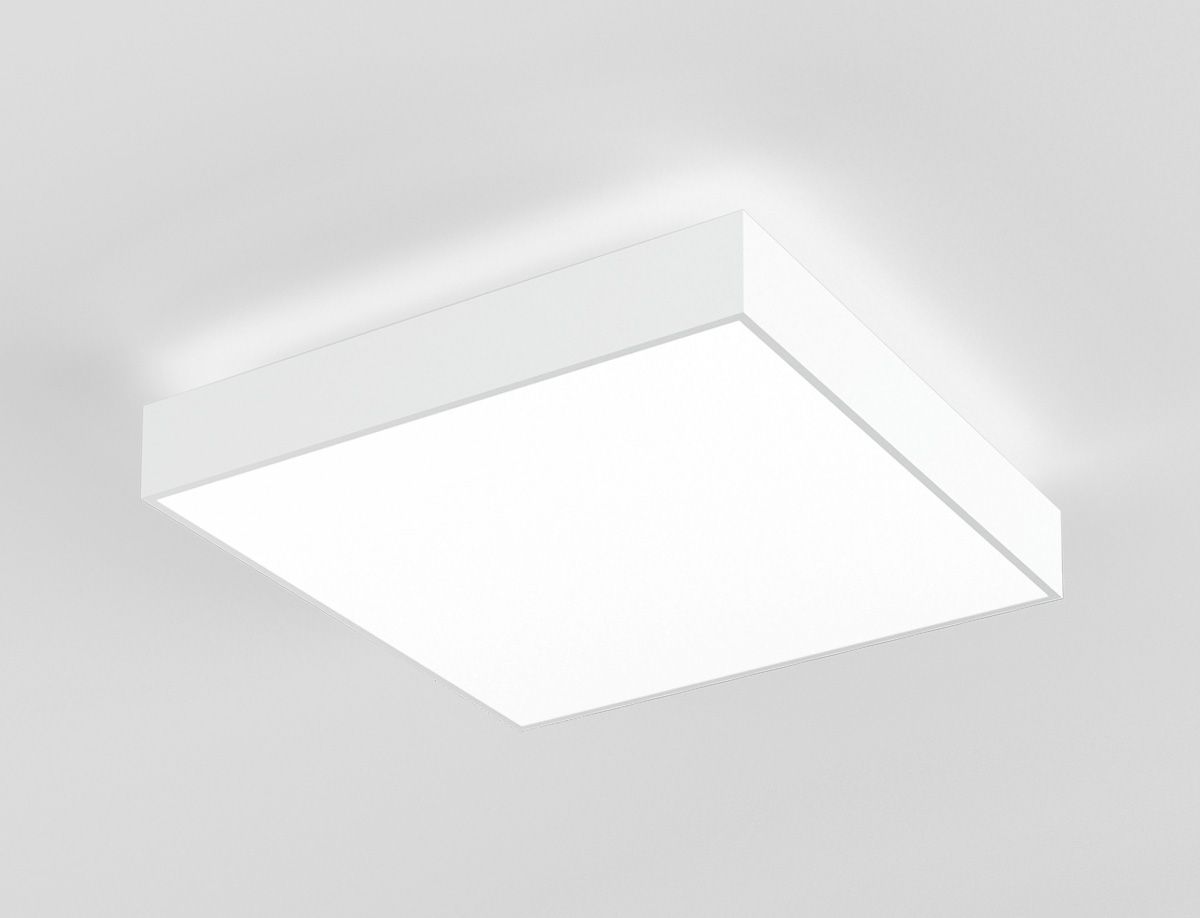

SQUARE Surface
SQUARE Surface Direct-Indirect

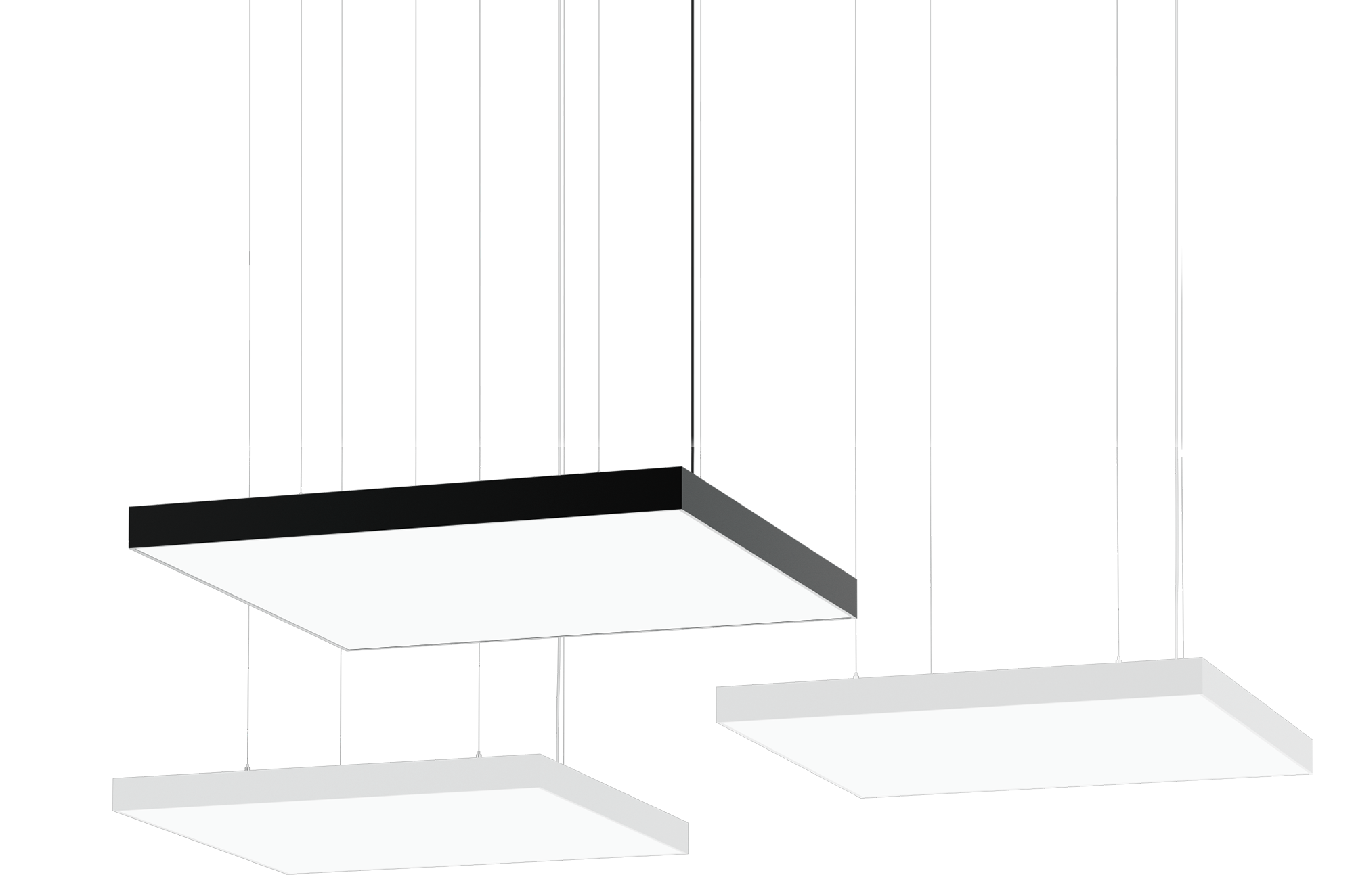

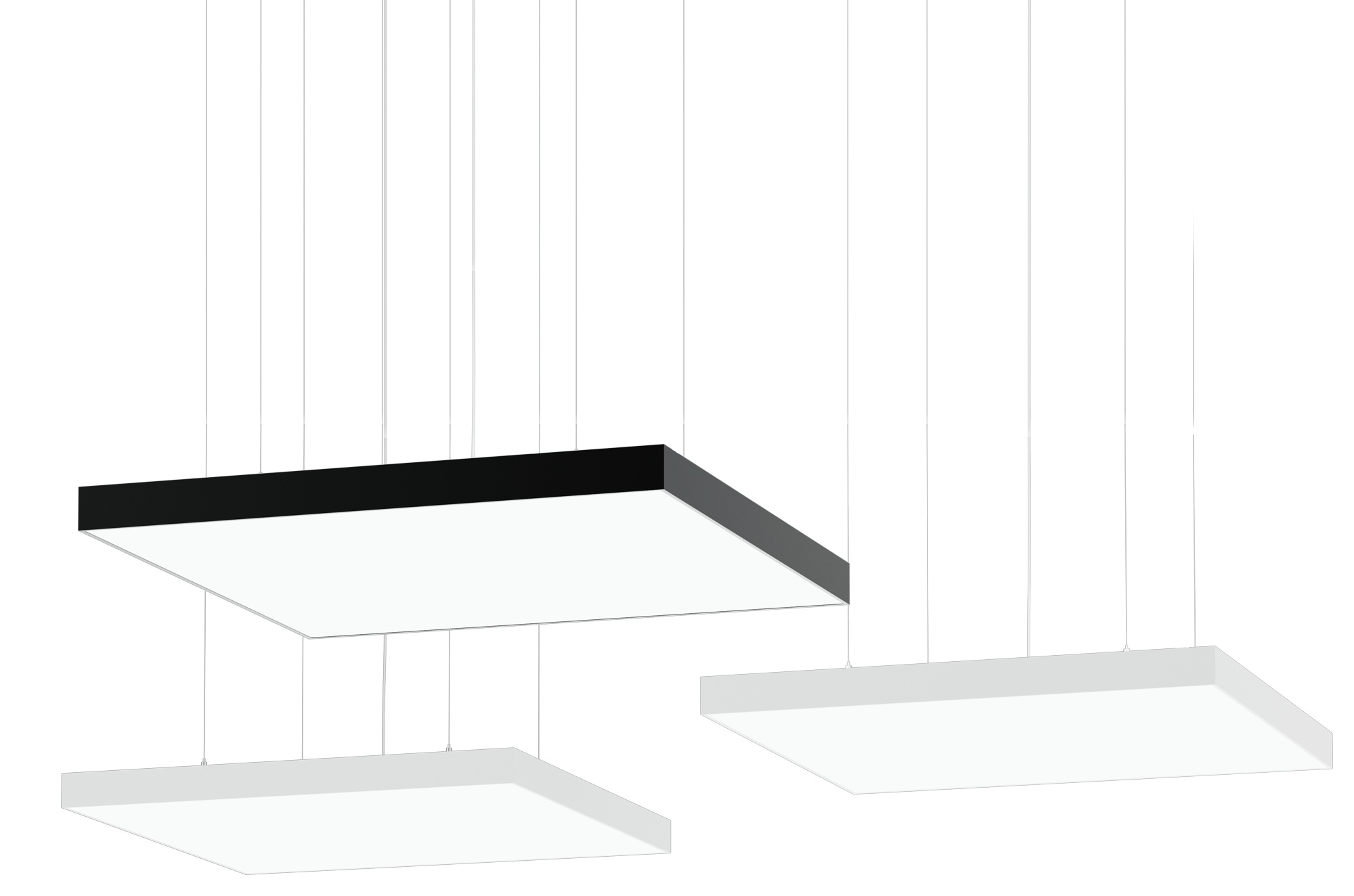

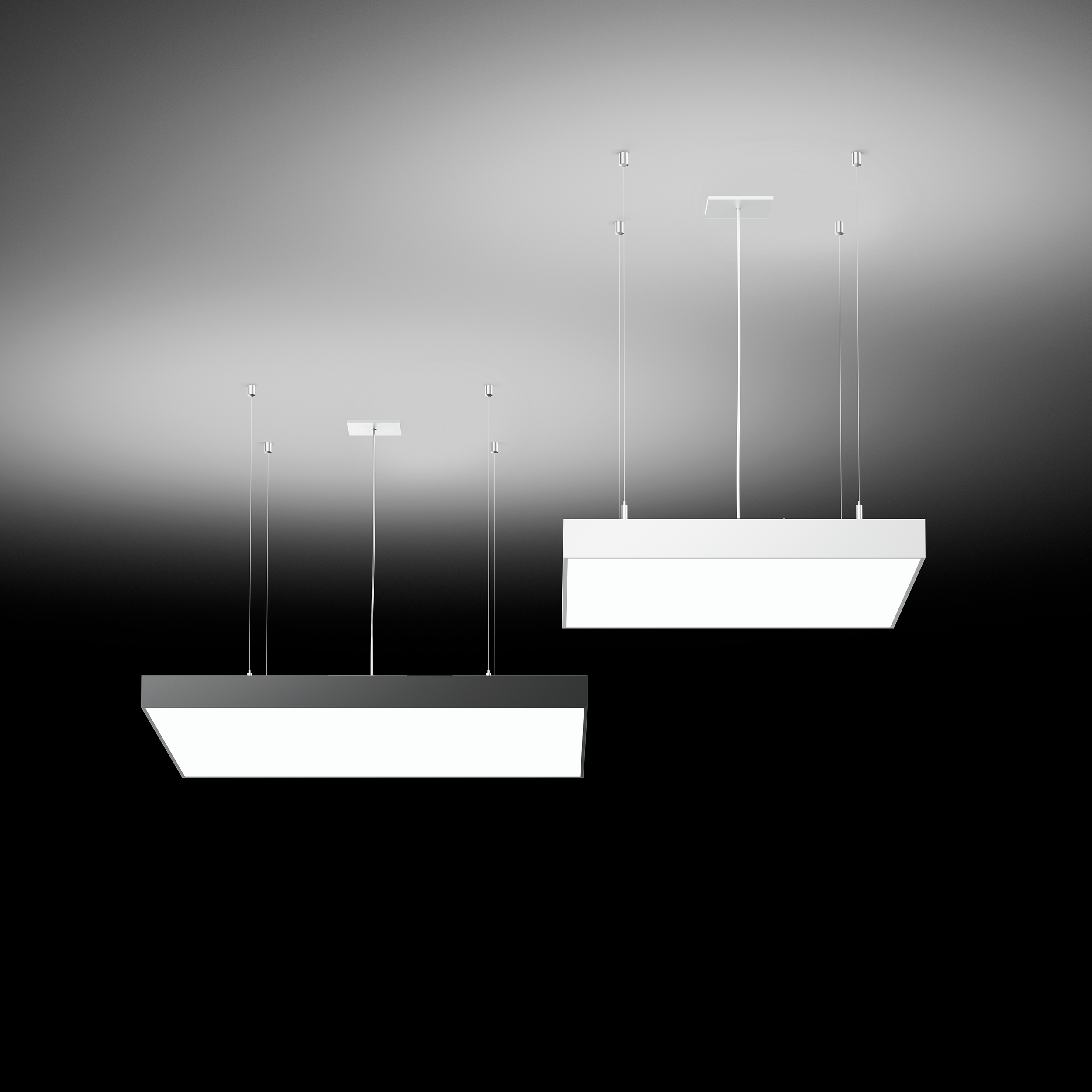

SQUARE Pendant
SQUARE Pendant Direct-Indirect
WALL MOUNT
SURFACE MOUNT
