Creating beautiful ceilings

Using a combination of Armstrong® FastSize™ factory-finished ceiling panels and suspension systems, you can easily specify and achieve perfect lighting layouts. Precise distance between ceiling grids through Armstrong® lighting connector bracket.

Our integrated system design allows the high performance LENO zero plenum LED light fixture to install from below to eliminate ceiling re-work when specified with factory-finished Armstrong® ceiling panels and ceiling systems.

Hide away water pipes, AC ducts or sprinkler pipes to create a pleasant and professional finish.

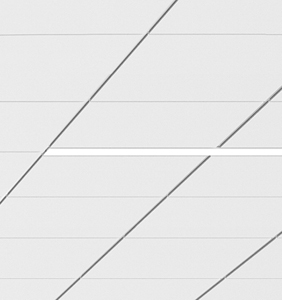

Linear Lighting Integration.

LENO is incredibly compatible with ceiling lighting solutions and comes in two grid sizes. It's easy to mount and the LENO fixture connects from below with a zero plenum, low profile for a combination of seamless integration and stressless installation.

LENO is perfectly symmetrical with grid ceiling solutions for a streamlined and professional interior.

Optics with outstanding performance of up to 128 lm/W.

LENO conceals innovative lighting technology between the flat frame. Highly efficient LEDs achieve a high lumen output. The light guiding prism optimally redirects laterally coupled light downward.

Refined technology

LENO has plenty of features that come from streamlined design and careful integration of LED technology, power supply and engineering.

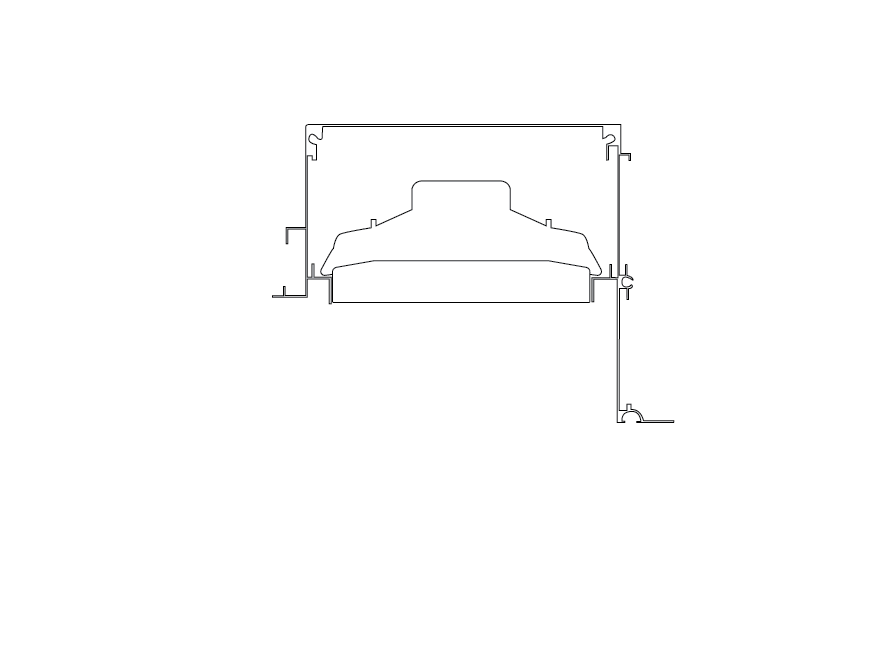

Let's cut away a fixture to explore what makes
LENO products unique in the diagram below.

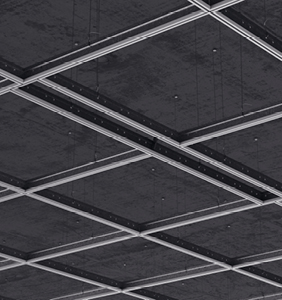

Armstrong® Slot Grid

The LENO fixture works in Armstrong® 9/16" Suprafine®, Silhouette®, 4" Techzone®, Interlude®, Axiom® cove channel and drywall grid systems.

LED

For its light source, the luminaire uses only high-efficiency LEDs with CRI > 80 and selected color temperatures of 3000 K, 3500 K, and 4000 K. We use the latest generation of long life, up to 40,000 hour LEDs at 90 % lumen maintenance (L 90) with high-performance e LEDs with 3.8 W/ft, e² with 5.5 W/ft or e²+ with 7.5 W/ft.

Modular Wiring System

Optional modular wiring system rated for use on 20-ampere branch circuits. Manufactured from Type MC Cable featuring 90°C insulated, #12 AWG, solid copper conductors, and a #12 AWG insulated, solid copper ground. Easy and fast electrical wiring with 5 -  conductor plug and play conduit through-wire system.

LGP Body

At the heart of the fixture is the Light Guiding Prism (LGP) body.
It receives the laterally coupled light and directs it through the integrated prisms downward.

Integral Driver

Available dimming options range from 0 -10 V, Hi-lume to DALI.

Reflector

The reflector on top of the luminaire is made up of special material that provides both reflectivity of 96% and diffuse radiation characteristics at the same time.

HPO Cover

The flush-mounted HPO-High Performance Opal cover provides enhanced glare control for uniform illumination.

Snap-In Mechanism

Plug and play system through easy connector technology. The snap-in locking mechanism allows for tool-less installation. Patented.

LENO VS. Traditional Slot Products

LENO's patented connector bracket is a much easier installation than a typical slot mounting product. LENO has low profile mounting that is mounted from underneath ti cover water pipes, HVAC and plumbing installations. This installation style also makes necessary fixtures like sprinkler systems easy to implement.

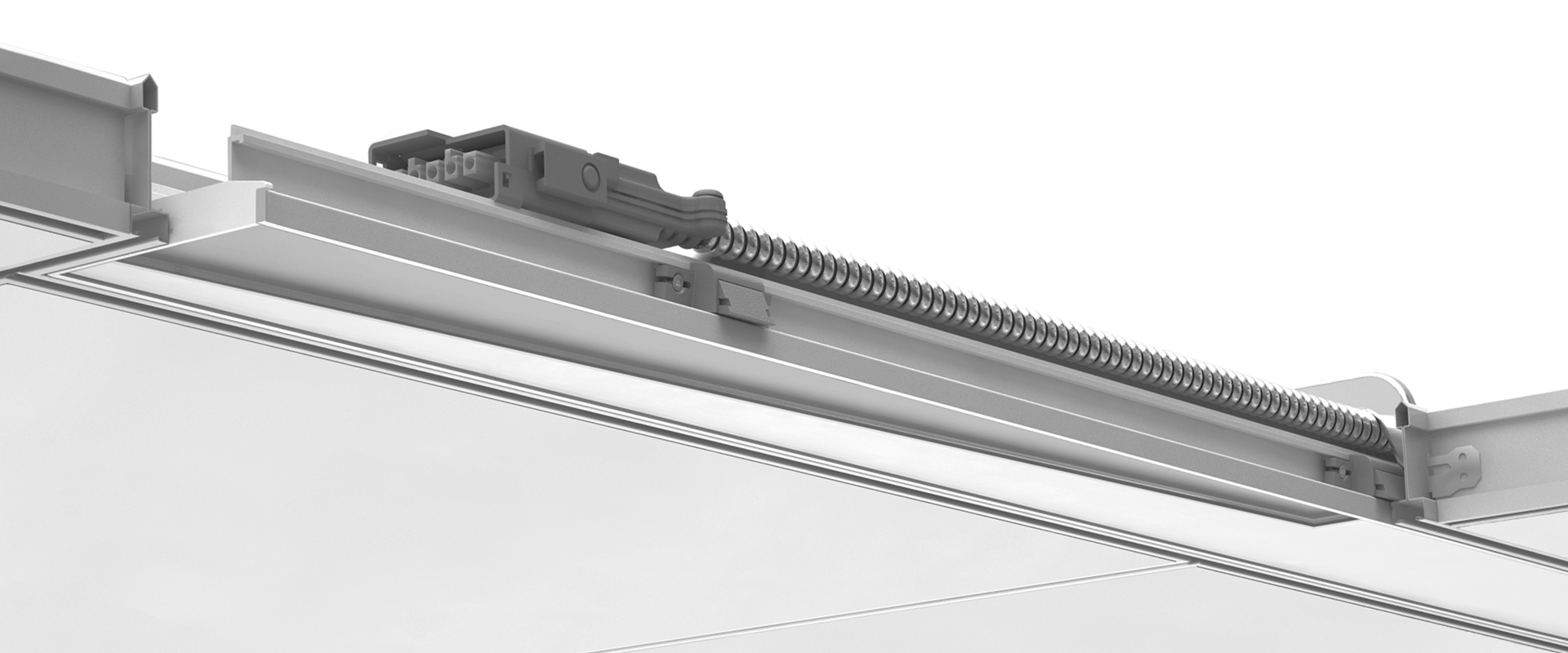

This x-ray of a LENO fixture showcases how safe and simple it is compared to the competition.

Configurations of LENO

LENO comes in two lengths and can easily fit into a grid as a standalone luminaire or as part of continuous run.

Leno 24
Cut sheet Configurator Instructions IES files REVIT files

Leno 24" Grid

Leno 24
Cut sheet Configurator Instructions IES files REVIT files

Leno 24" Grid Run

Leno 30
Cut sheet Configurator Instructions IES files REVIT files

Leno 30" Grid

Leno 30
Cut sheet Configurator Instructions IES files REVIT files

Leno 30" Grid Run

Zero plenum lights

Armstrong® ceiling system

Enjoy a perfectly finished ceiling design with continuous or non-continuous lighting, taller ceiling heights, and zero interference or re-work. You can seamlessly start and stop runs of light, perfectly place the runs over the work plane and design your space with just the right amount of light and never more.

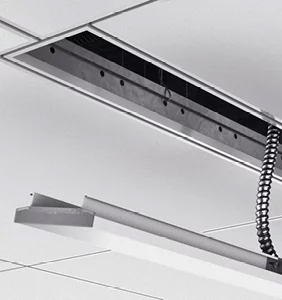

The typical constraints with grid-installed luminaires

Typical grid-installed luminaires require ceiling access for partial installations from below and the required ceiling height varies based on tools needed and on the installers. Additionally, installation from above requires a minimum amount of plenum space.

LENO has no overhead height constraints as it easily installs in true zero plenum applications without ceiling access.

Traditional Slot Products

Leno

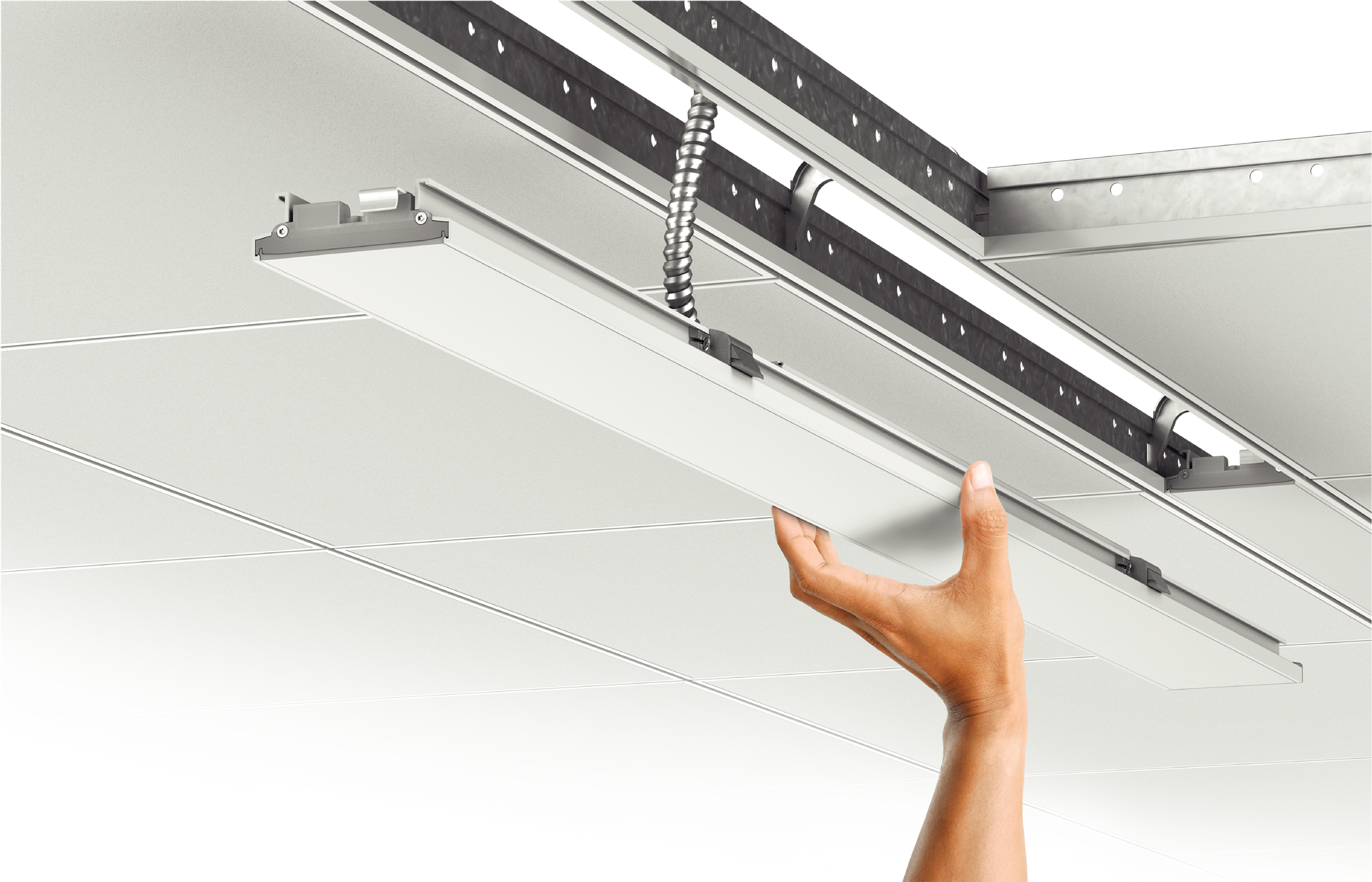

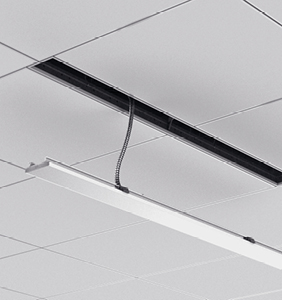

Quick and easy mounting

No tools are required thanks to patented snap-in mounting for easy installation of the fixture. Simple and fast electrical wiring with 5-conductor plug and play conduit through-wire system (please order separately).

Fixtures can be mounted after the Armstrong® ceiling installation is finished, therefore minimizing the coordination of the different trades used in light installation

PLUG-AND-PLAY
CONTINUOUS RUN

WHIP
INDIVIDUAL SECTION

Step 1

Step 2

Step 3

Step 4

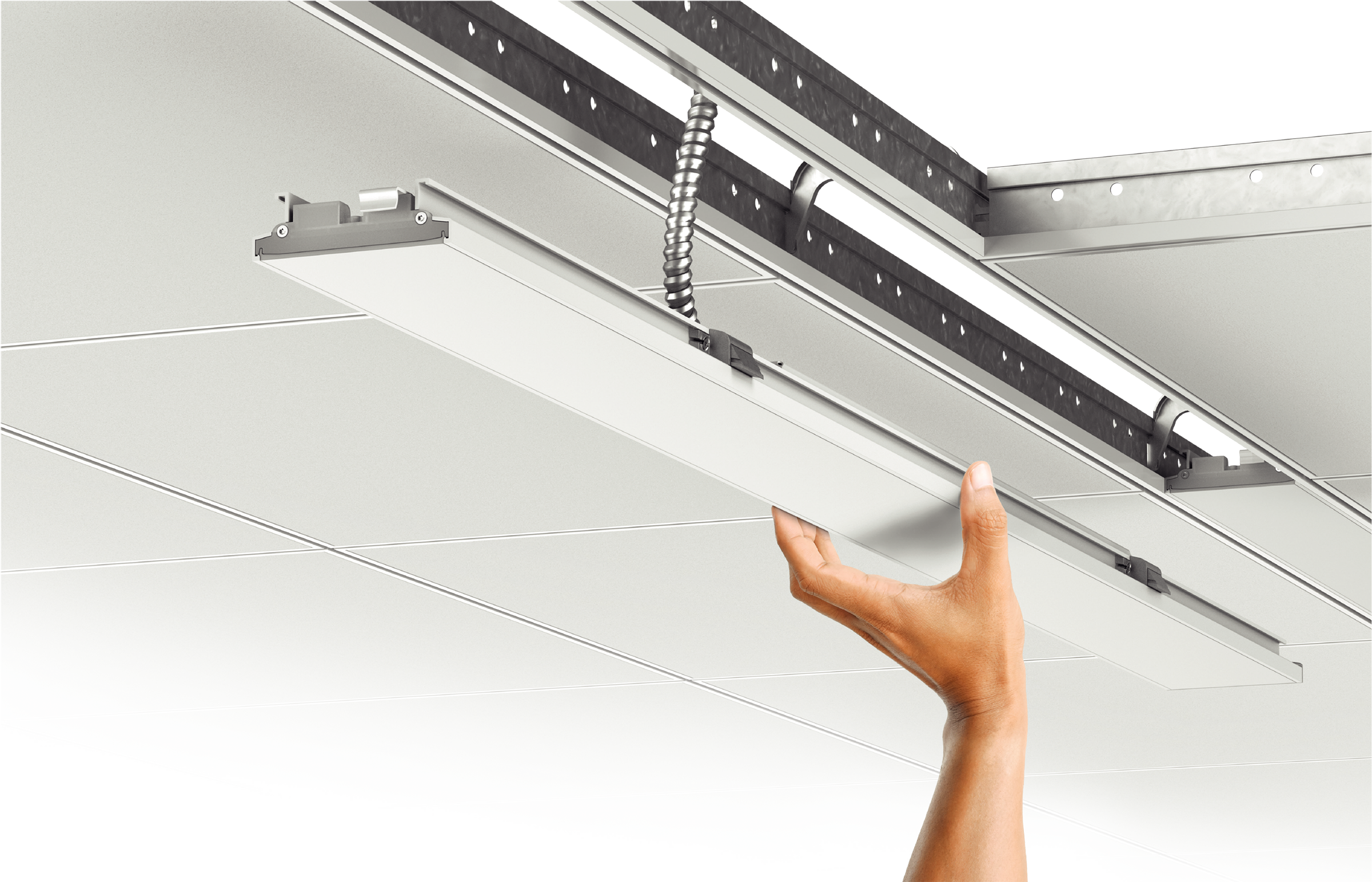

One simple click

Our patented snap-in locking latches offer the fastest install of 4" linear light system on the market. Once Armstrong® 9⁄16" ceiling systems are installed, LENO snaps right in.

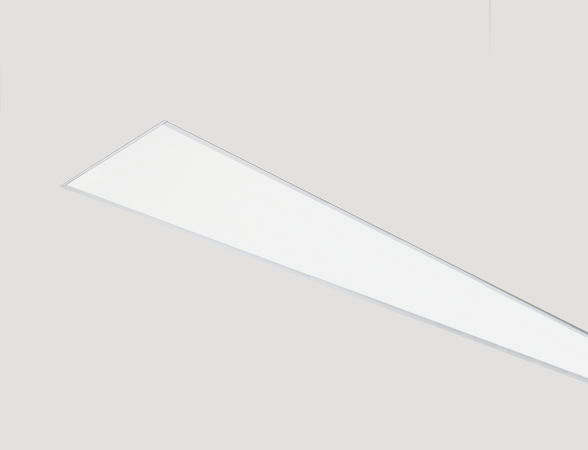

Direct lighting

The integrated direct lighting offers a direct glow that distributes evenly through the room around the fixture.

ARMSTONG® Grid

LENO is only approved for Armstrong® 9/16" Suprafine®, Silhouette®, Interlude®, AXIOM® cove, drywall and TechZone® ceiling systems.

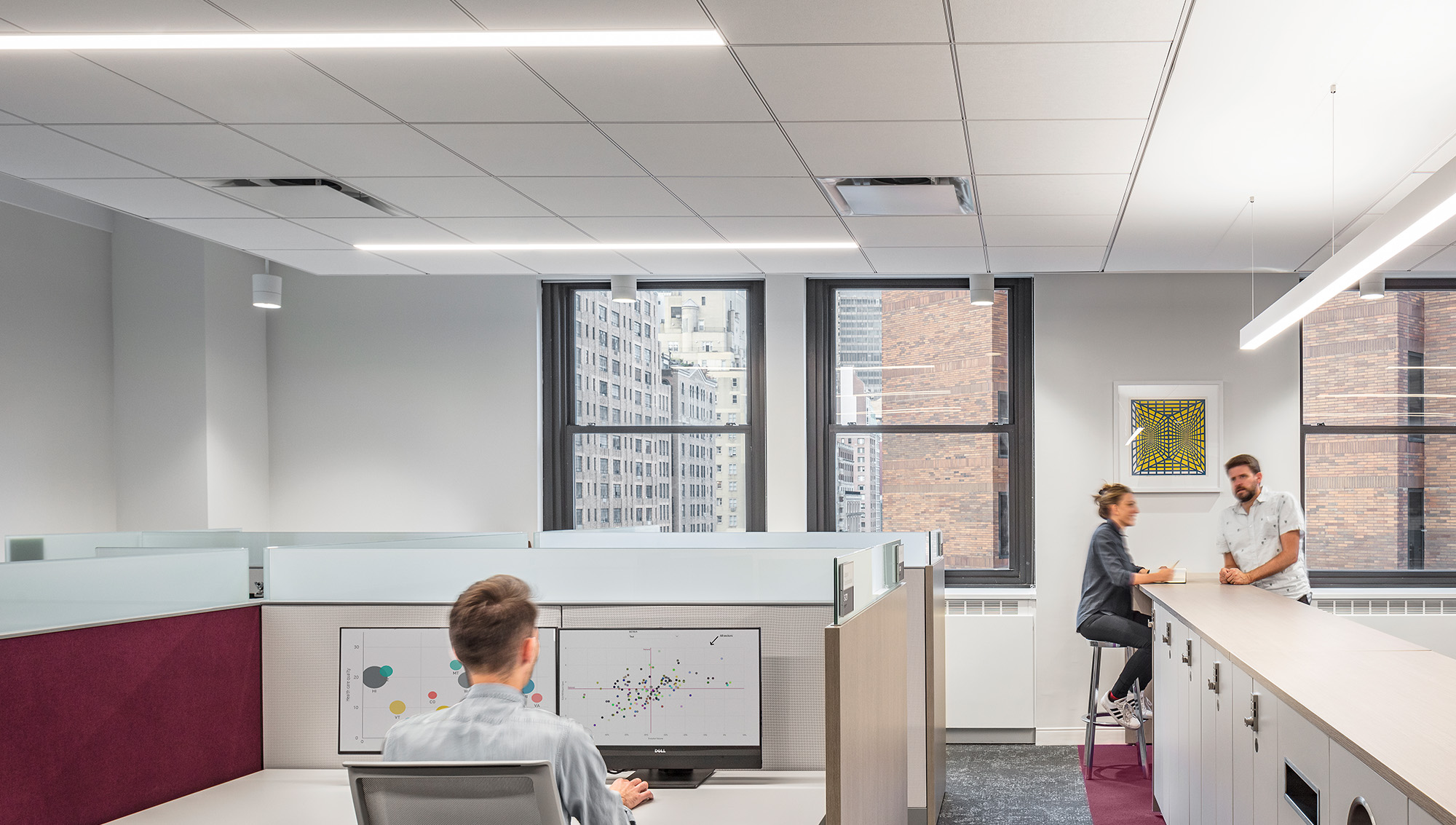

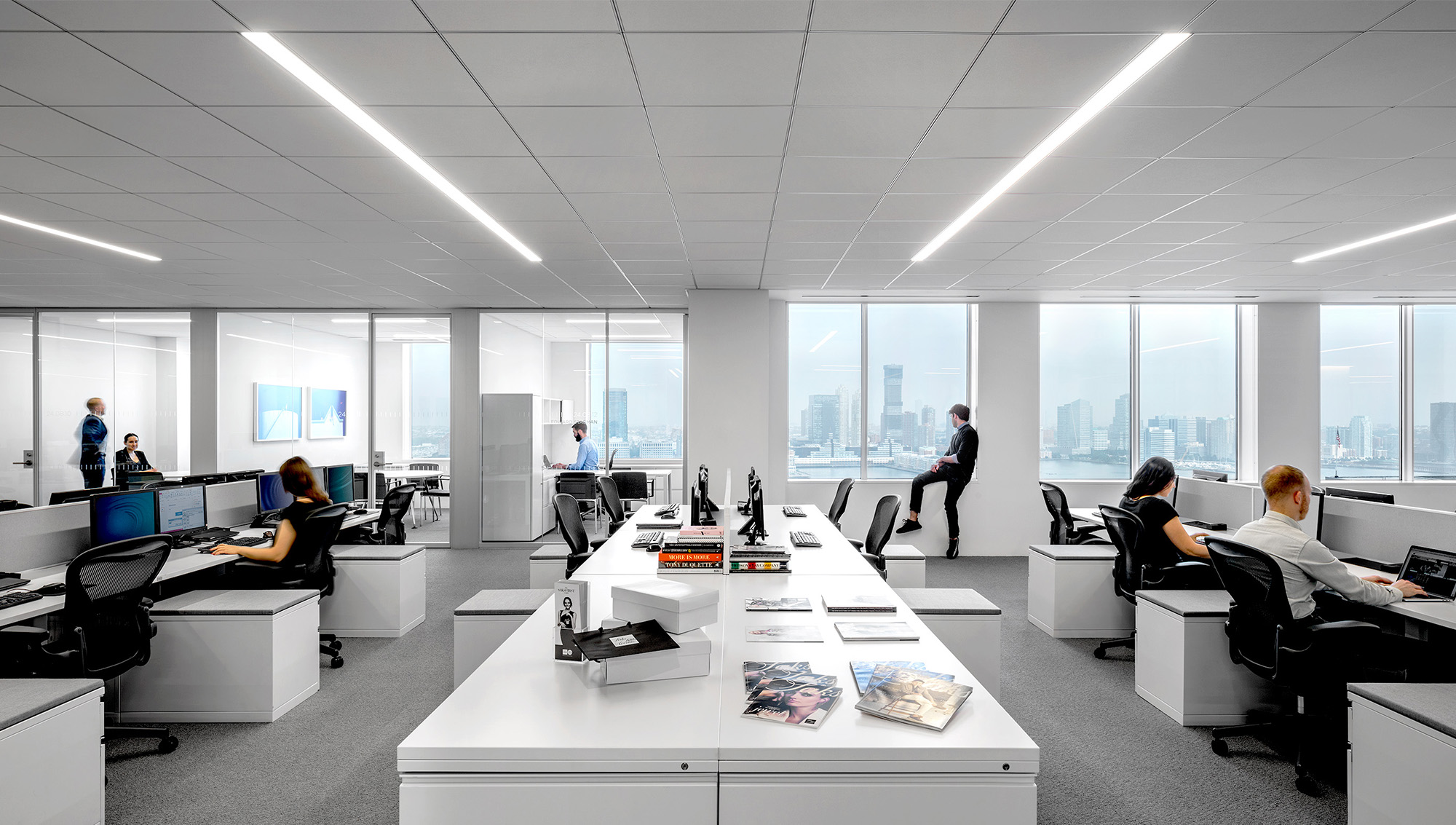

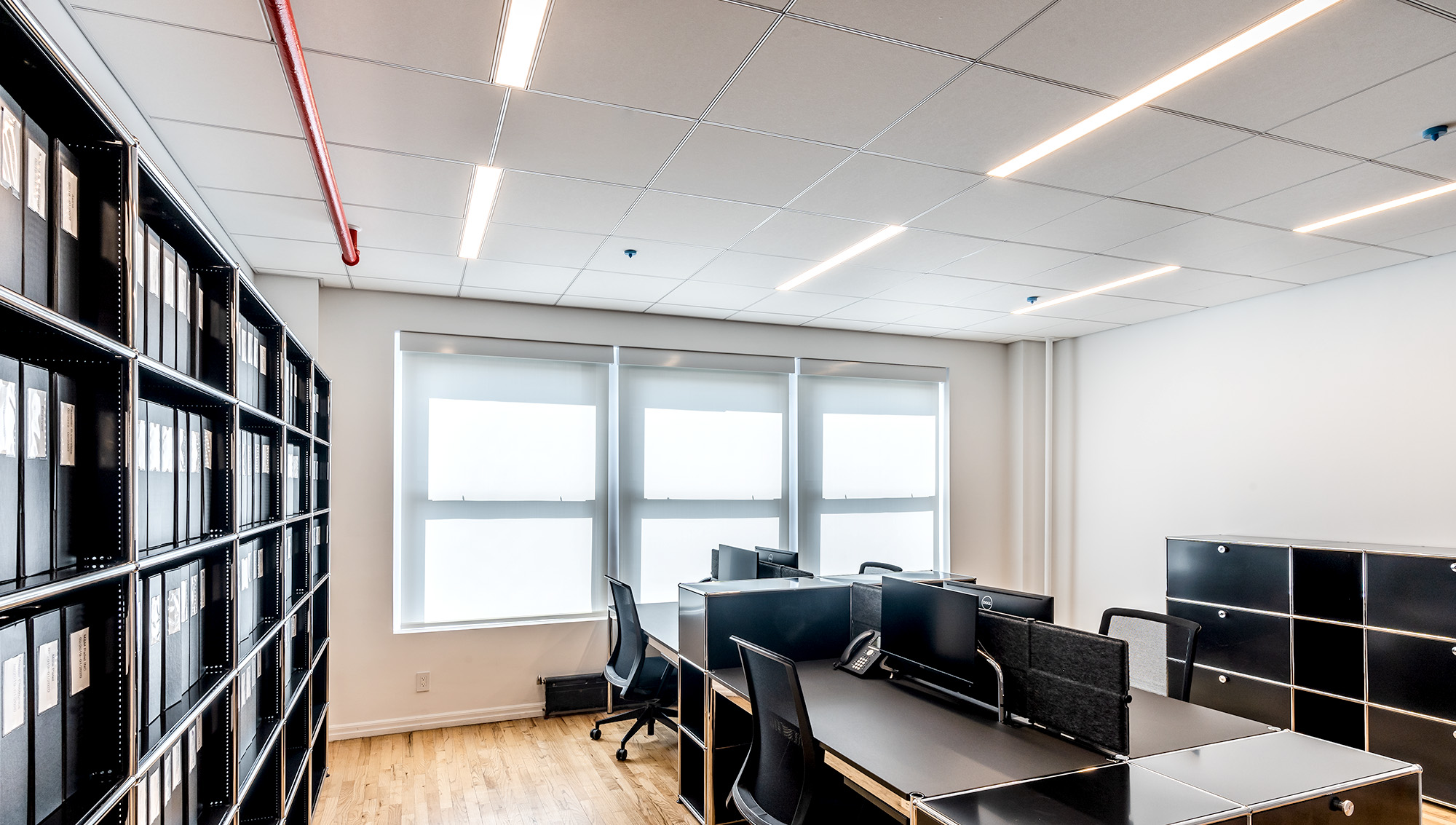

Making your room stand out

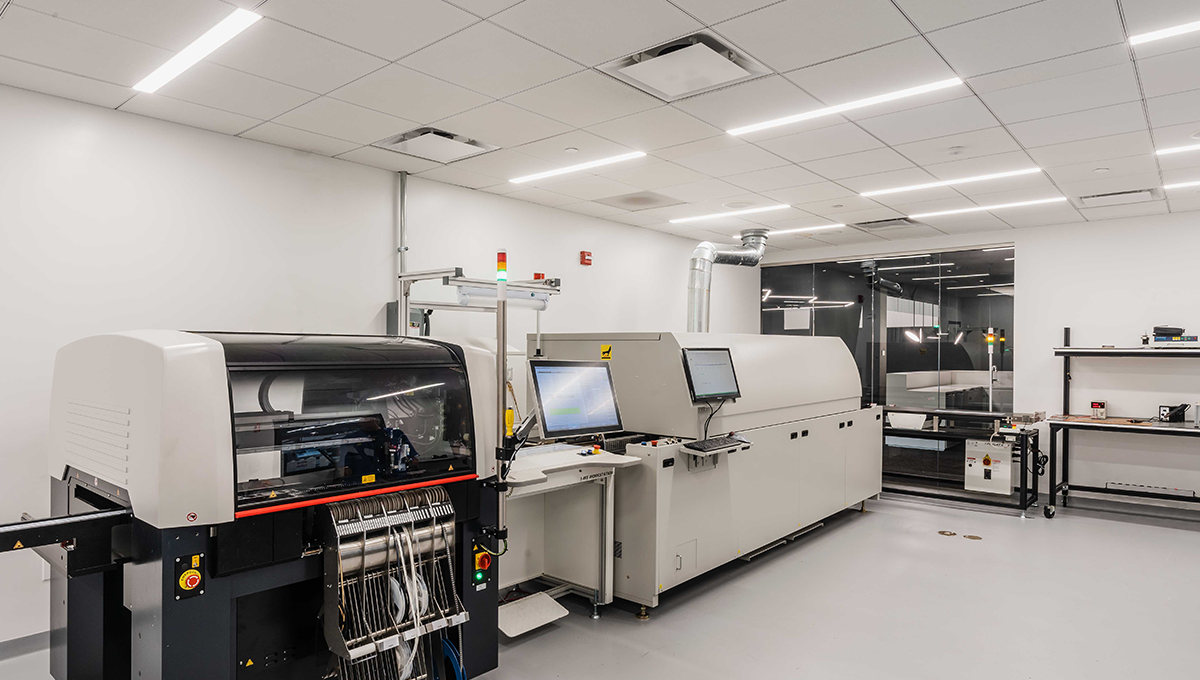

Project inspiration
