Shaping your space

It all starts with a line. Whether its architecture, fine art, design or engineering, it all begins the same way.

As ideas come together, the lines change direction, become curves, circles, rectangles and everything in between.

SHAPES is here, in combination with BASO to highlight and mirror the lines of all projects.

Forms

Fluid Lighting Design.

Custom Radii
Space-Shaping
Over Nine Standard Forms
Limitless soultions

LED technology you can trust

LED

We only use latest generation, high-efficiency LEDs with color reproductive values of CRI > 80 in color temperatures 27 K, 30 K, 35 K or 40 K. LEDs easily last up to 40,000 hours at 80 % lumen maintenance (L 90).

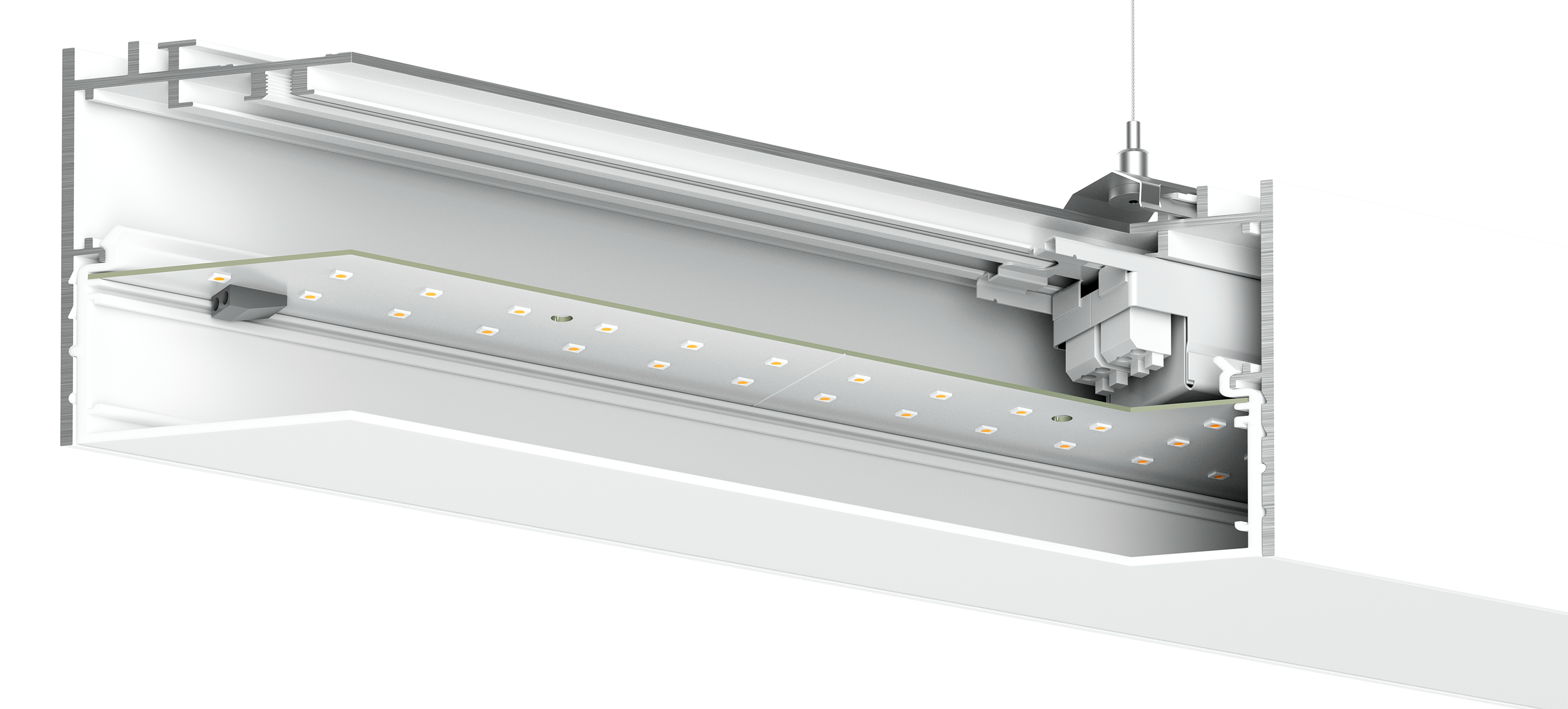

Circuit Board

Aluminum-based Circuit boards are fully integrated and reduce the thermal resistance between LED and the aluminum body. They in turn lengthen the lifespan of the LEDs and enhance the performance of the system as a whole.

CHANNEL

Profile housing made of extruded aluminum in angular design with 2 ⅜" wide light opening, light-tight gasketed aluminum end cap closure without visible screws. Designed for continuous lighting systems. Available standard in powder-coated gray, white or black.

OPAL COVER

The flush-mounted high-performance opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion. By integrating the LED board into the cover, we’ve reduced the weight of the fixture and by being a two-part system, decreased the time it takes for installation.

LED DRIVER

The driver is attached directly to the channel. The integral driver is hidden and does not take away from the luminaire's sleek appearance.

CABLE SUSPENSION

Flexible aircraft cable suspension, 78" long. Luminaire height can be adjusted without tools. The suspension cables attach to the luminaire via spring clips and can be positioned freely.

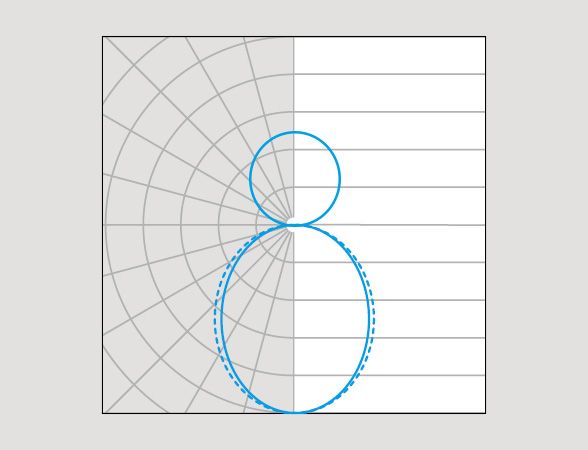

Optics with outstanding performance of up to 128 lm/W

SHAPES stands out for how versatile their lighting systems are. Through using our most popular linear lighting brand BASO and integrating our new CURVE and CIRCLE luminaires you'll find limitless solutions for creating original ceiling designs. Shapes give off outstanding light quality by using high-efficiency LEDs.

Opal lens

The flush-mounted high-performance opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion.

Uplight

The integrated uplight option offers a widespread  indirect glow that distributes evenly across the ceiling around the fixture.

Opal lens

The flush-mounted high-performance opal cover provides uniform illumination thanks to special material composition with increased transmission and diffusion.

Batwing uplight

The integrated batwing uplight offers a widespread  indirect glow that distributes evenly across the ceiling around the fixture.

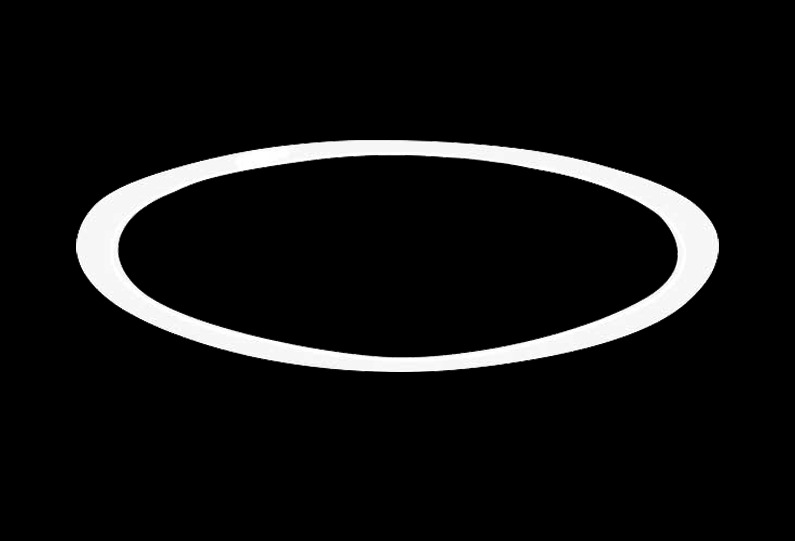

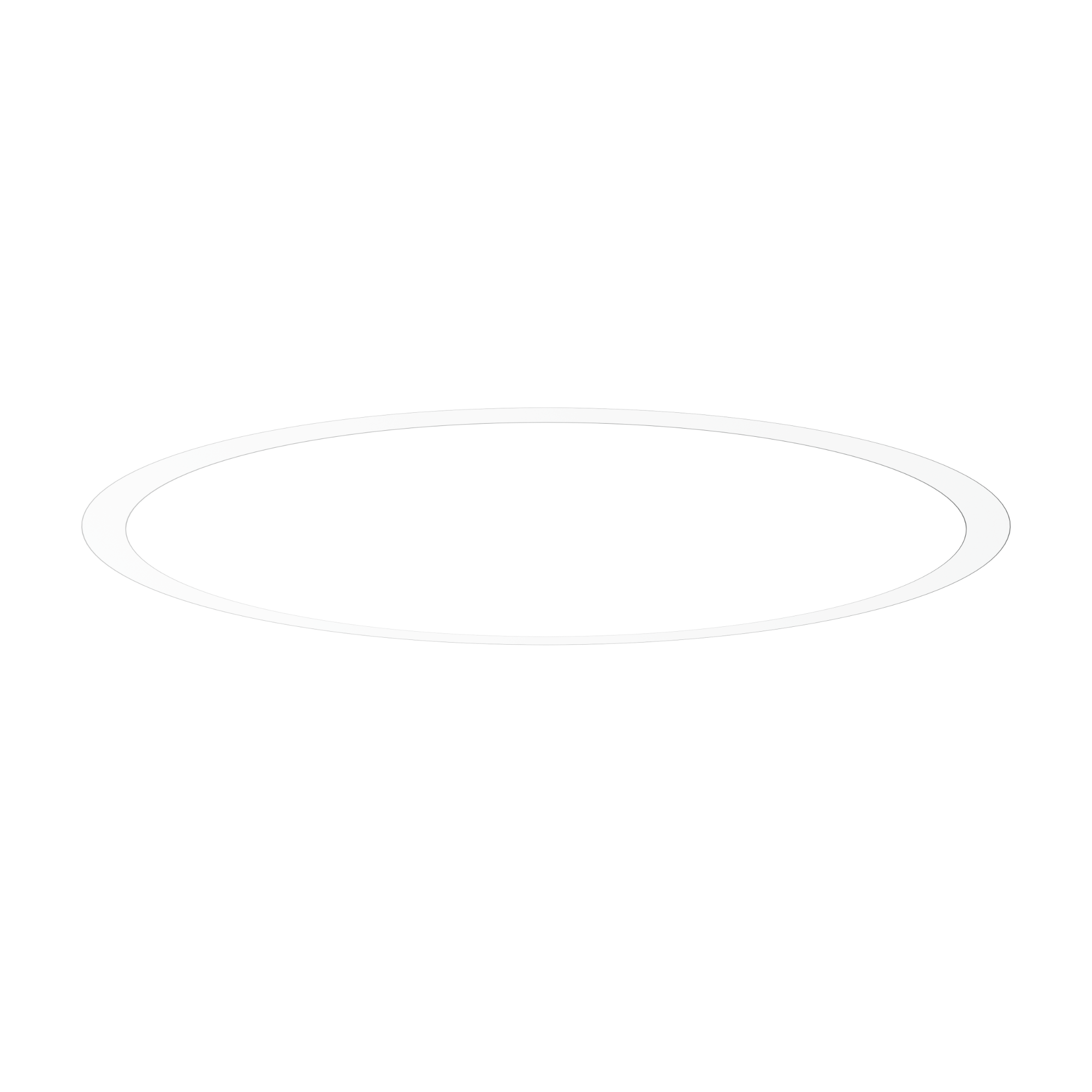

  • CIRCLE Recessed

    CIRCLE recessed offers direct lighting for both CURVE and CIRCLE 2.5. Available in three colors with a matte finish. Snap-in LED boards and covers with light leak free gasket endcaps.

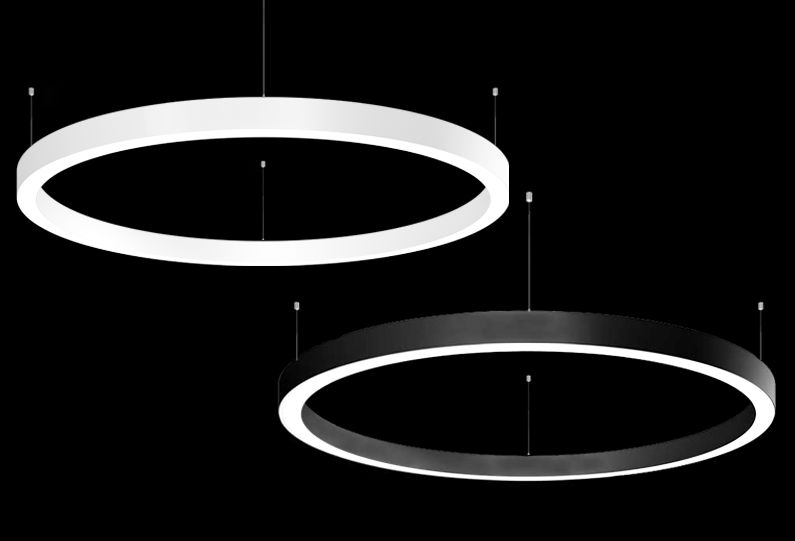

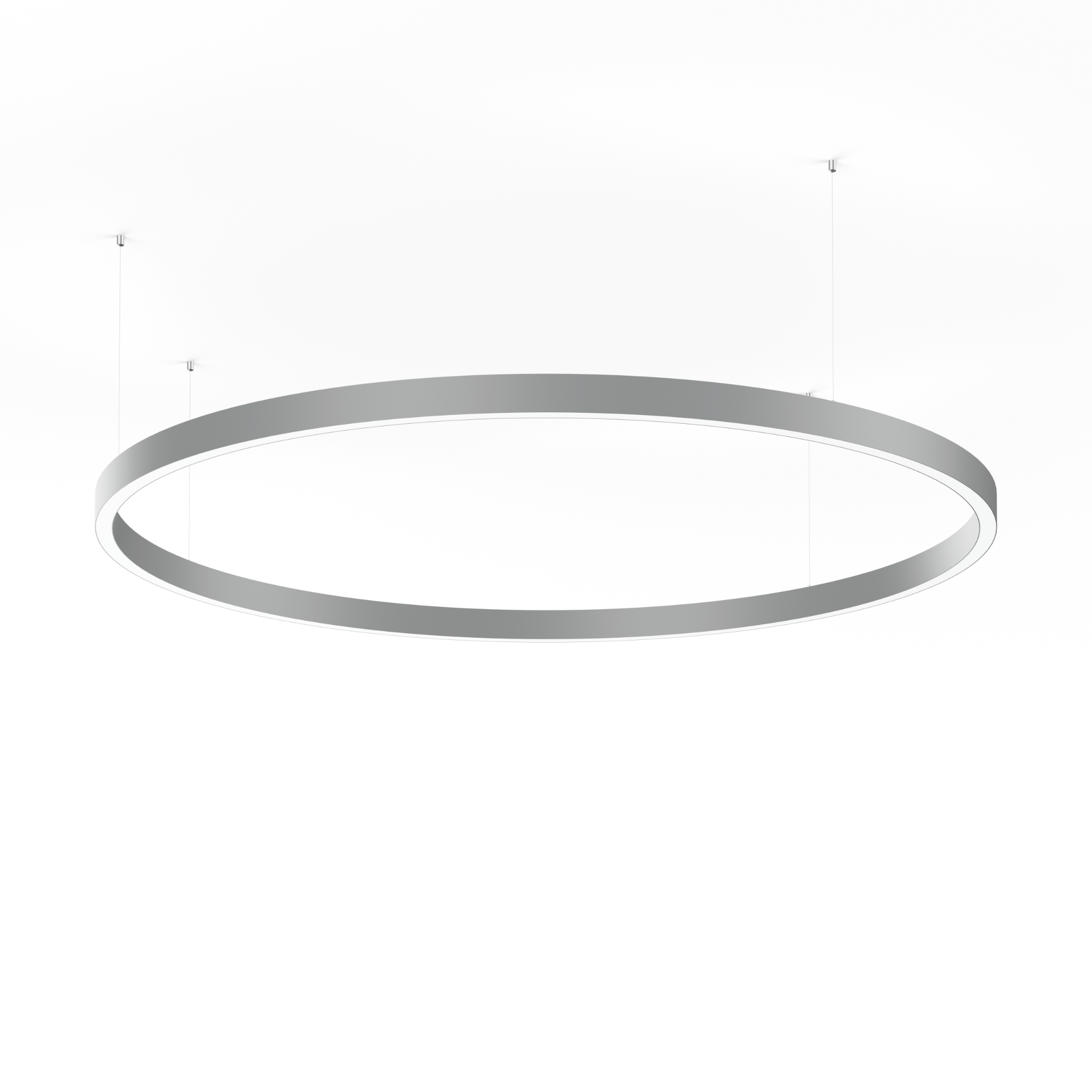

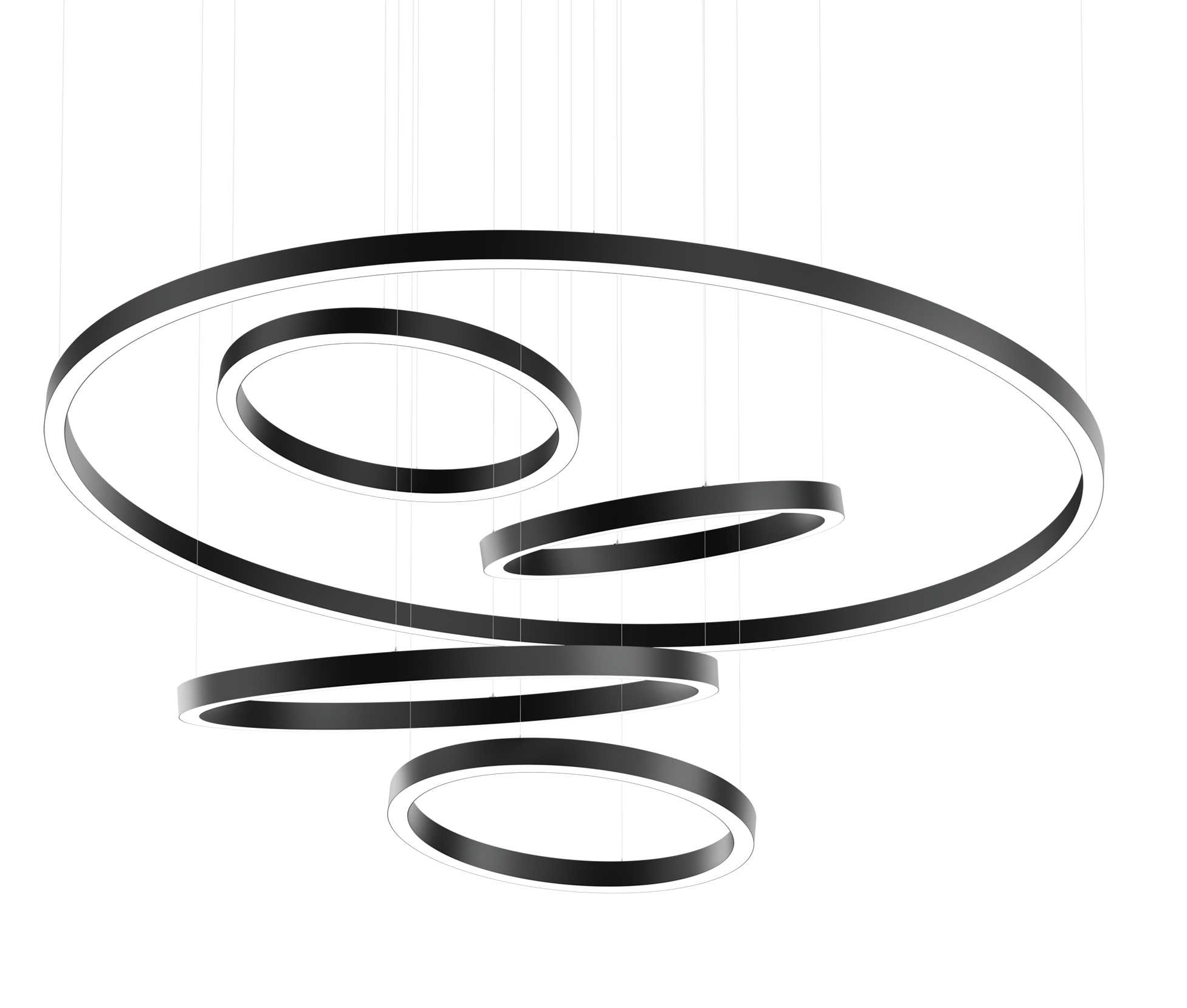

  • CIRCLE Pendant

    CIRCLE Pendant offers direct and direct / indirect lighting for both CURVE and CIRCLE 2.5. Available in three colors with a matte finish. Snap-in LED boards and covers with light leak free gasket endcaps.

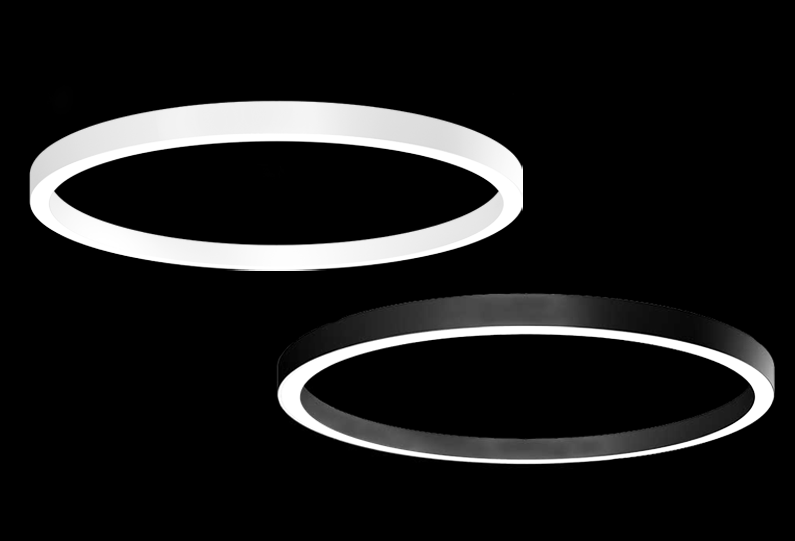

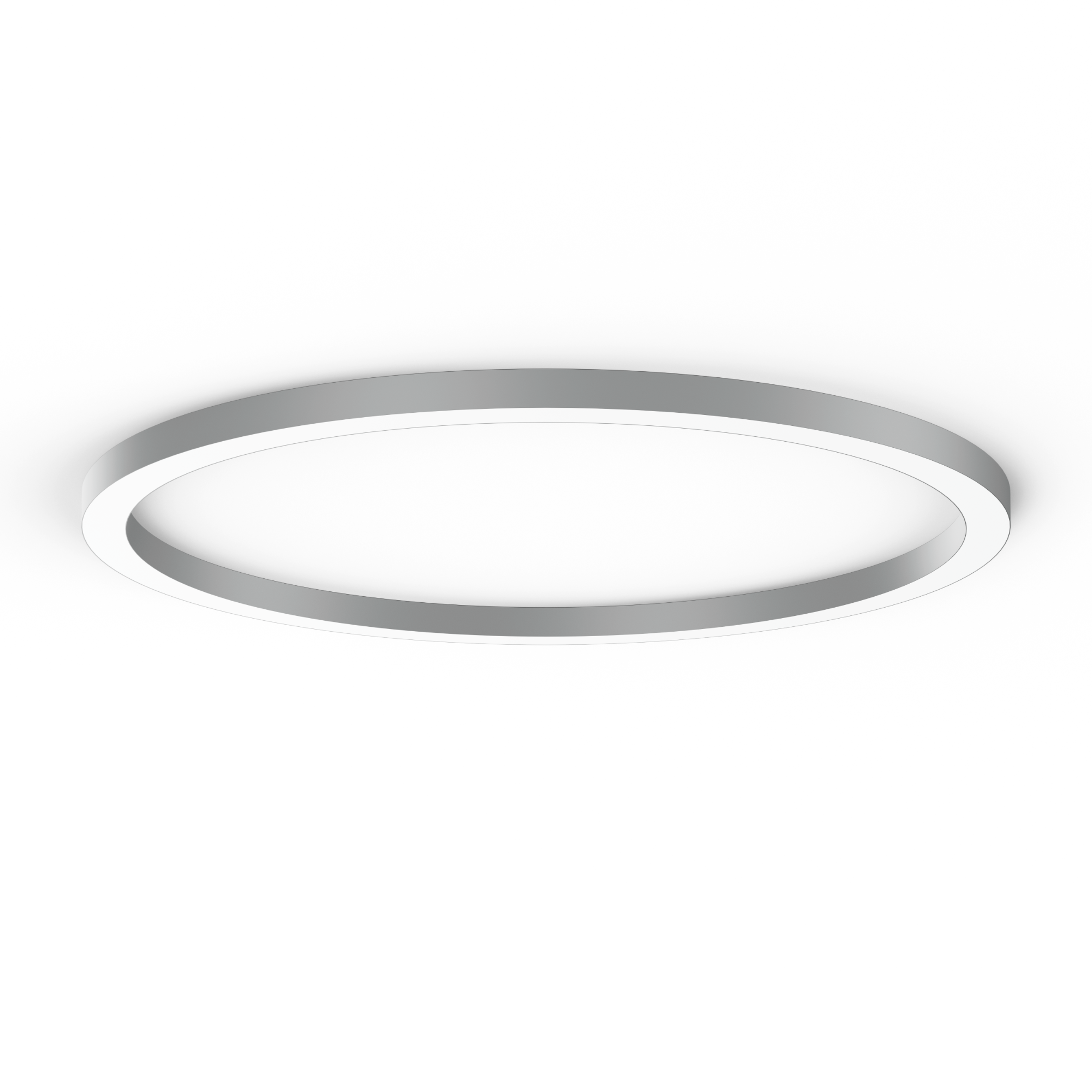

  • CIRCLE Surface

    CIRCLE surface offers direct lighting for both CURVE and CIRCLE 2.5. Available in three colors with a matte finish. Snap-in LED boards and covers with light leak free gasket endcaps.

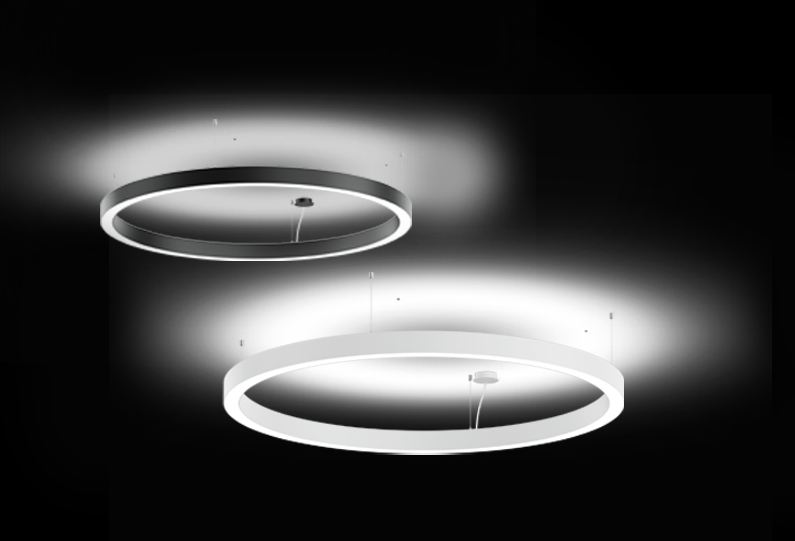

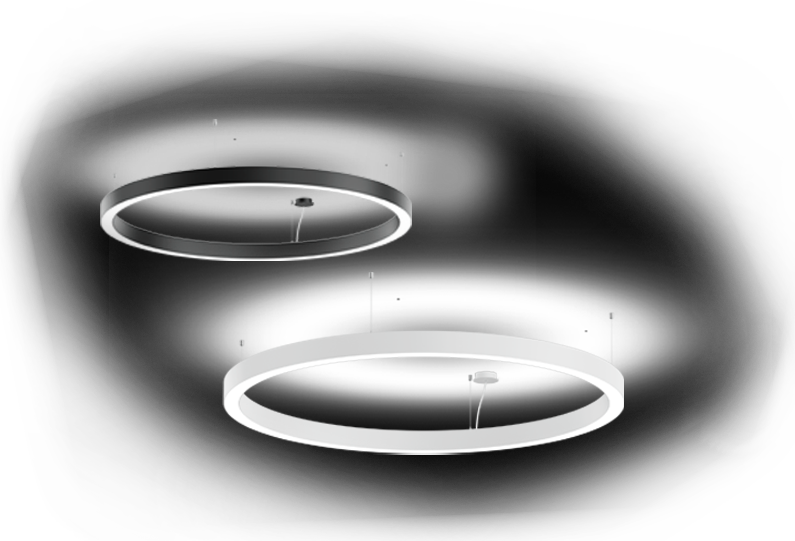

  • CIRCLE Direct/Indirect

    With our pendant option, direct / indirect lighting is offered. These have the same output options as BASO, for a cohesive look across the project.

CIRCLE 2.5 Dimensions

CIRCLE 2.5 have a range of radii and arcs, from 18 inches to 6 feet. The diameter of CIRCLE can reach up to 12 feet.

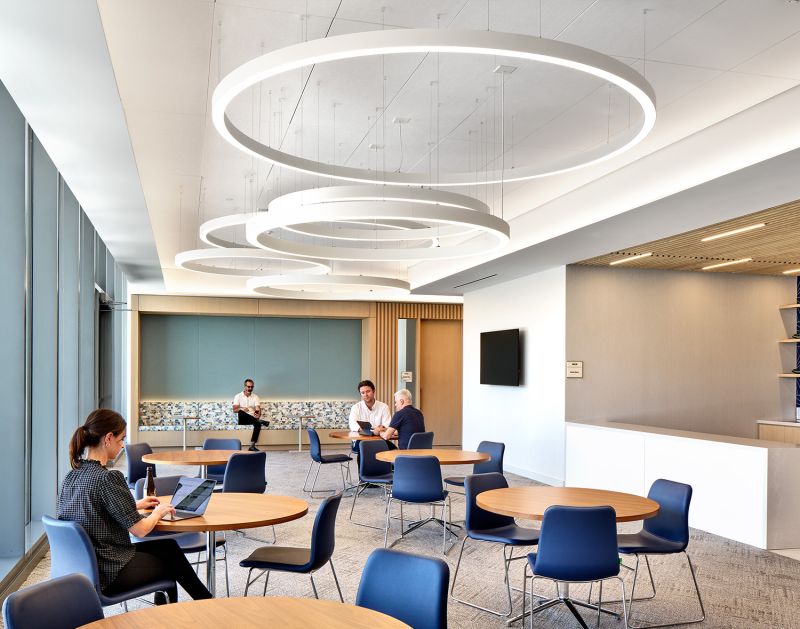

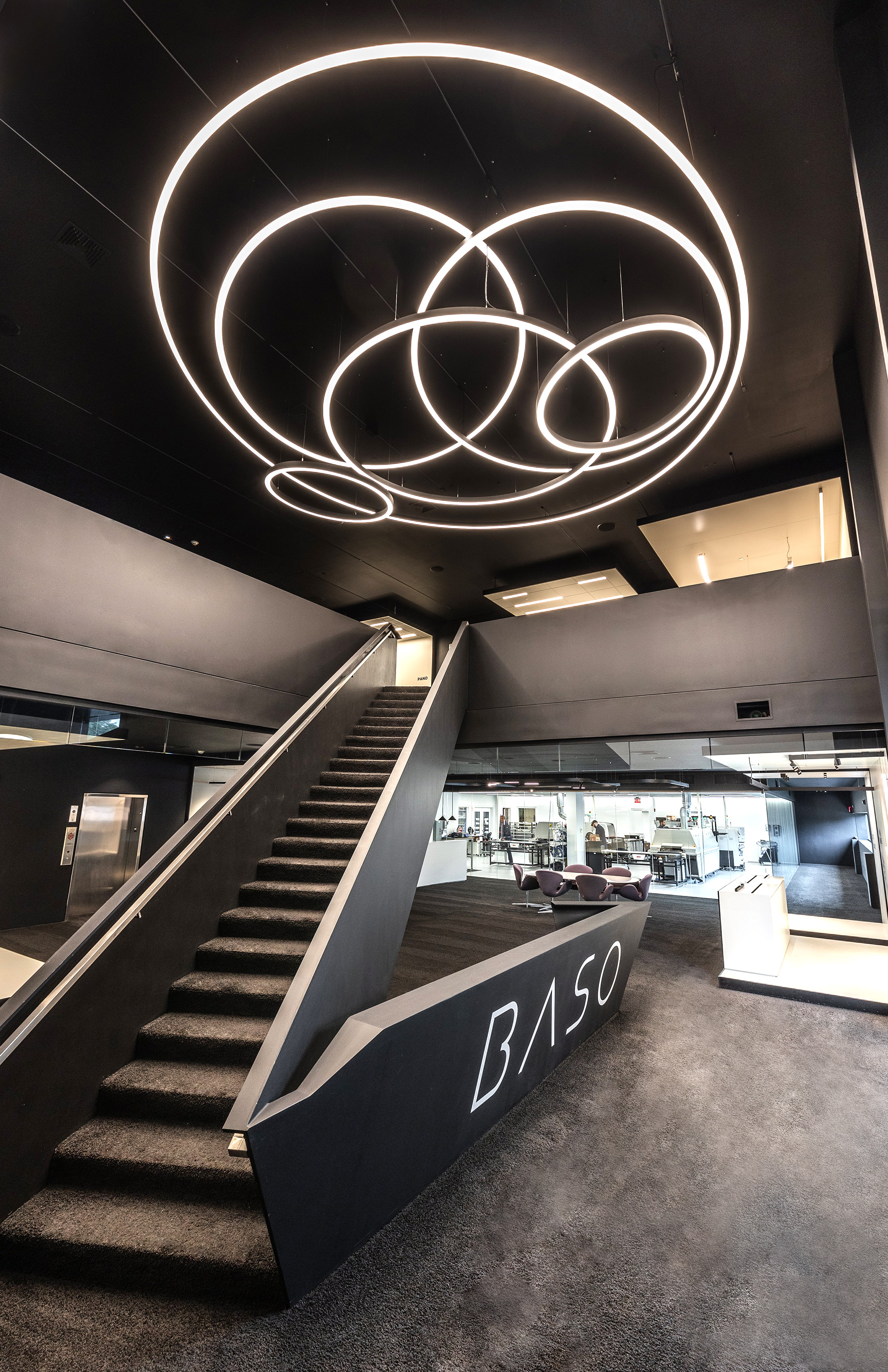

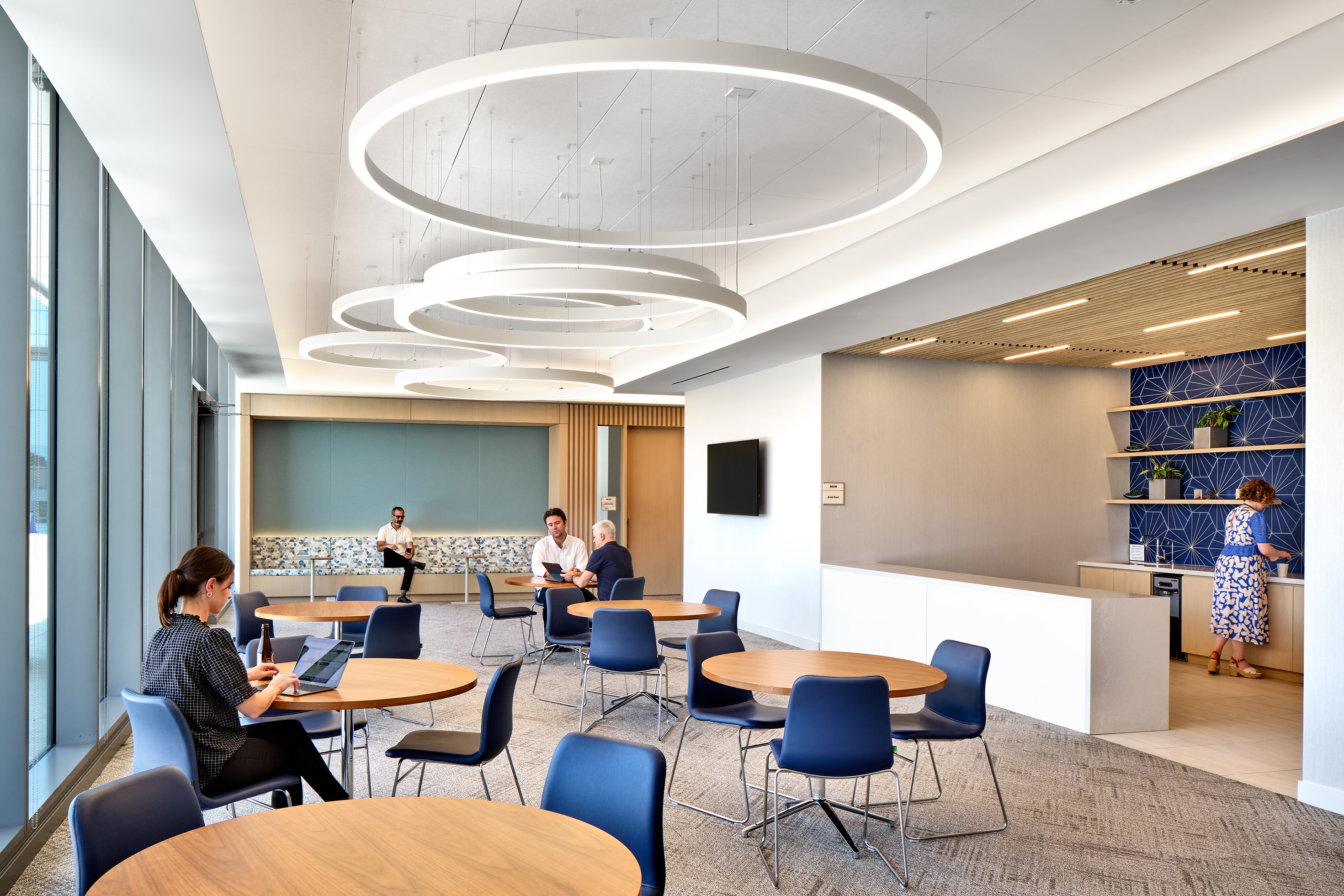

Combine and customize

The various radii and diameters of CIRCLE allow for experimental lighting designs that can create captivating interiors.
