Perimeter

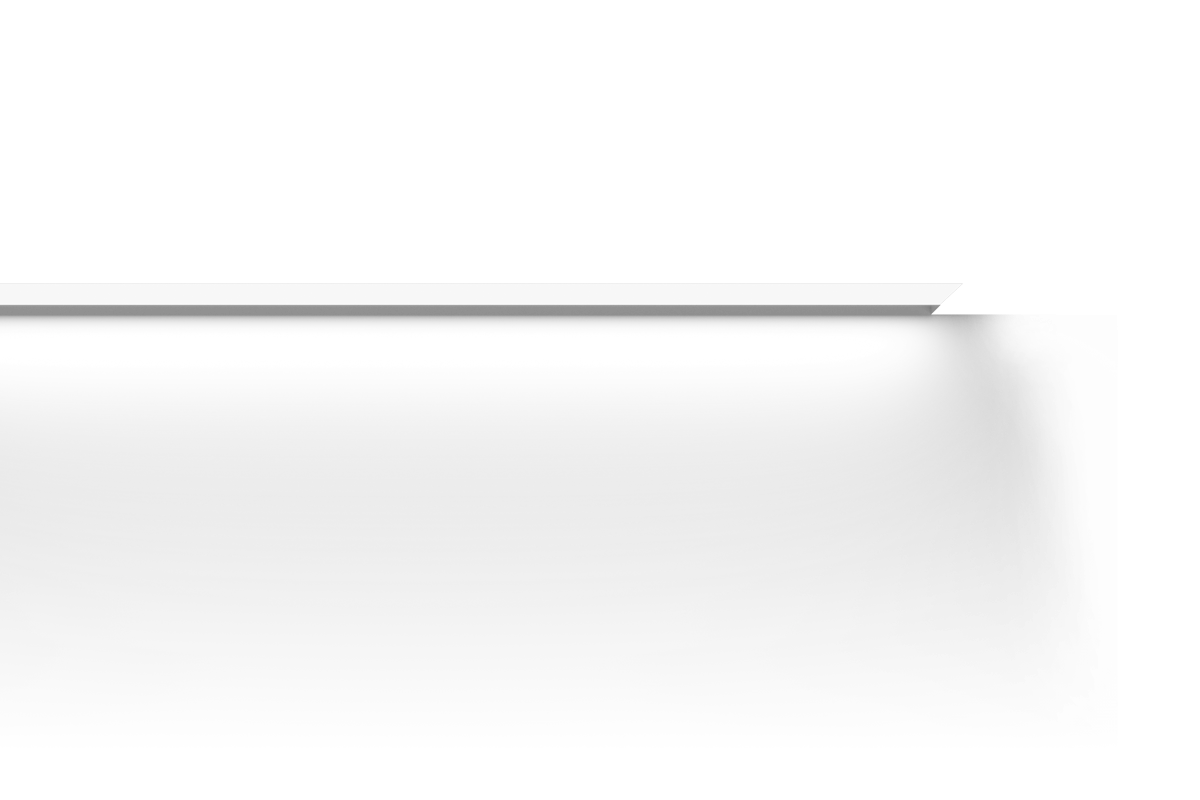

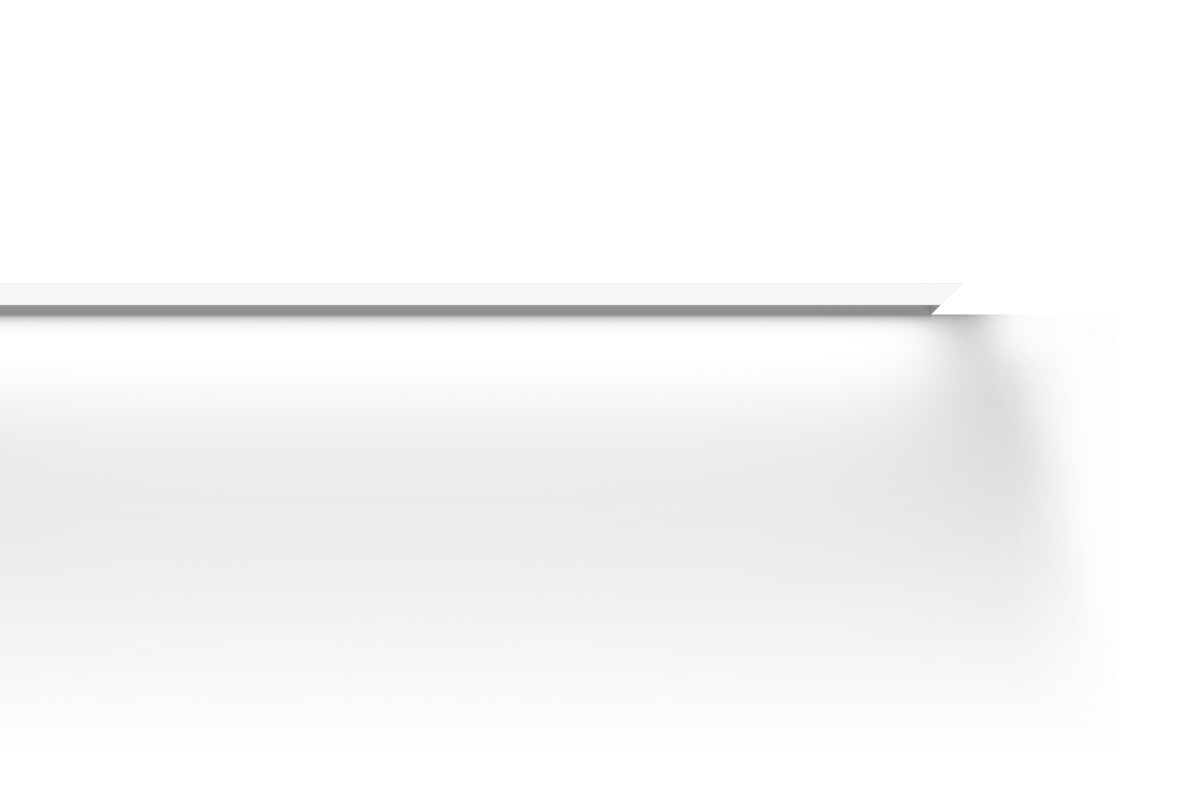

Perimeter is available in 2.5 and 4.0 trimless and with trim, it offers a highly efficient, ultra-quiet, wall wash effect. Perimeter utilizes a flush, light guiding, acrylic asymmetric lens. Available in different perimeter depths (Flush, Regressed 1", and Regressed 2") and available in multiple patterns.

Simple and Sophisticated.

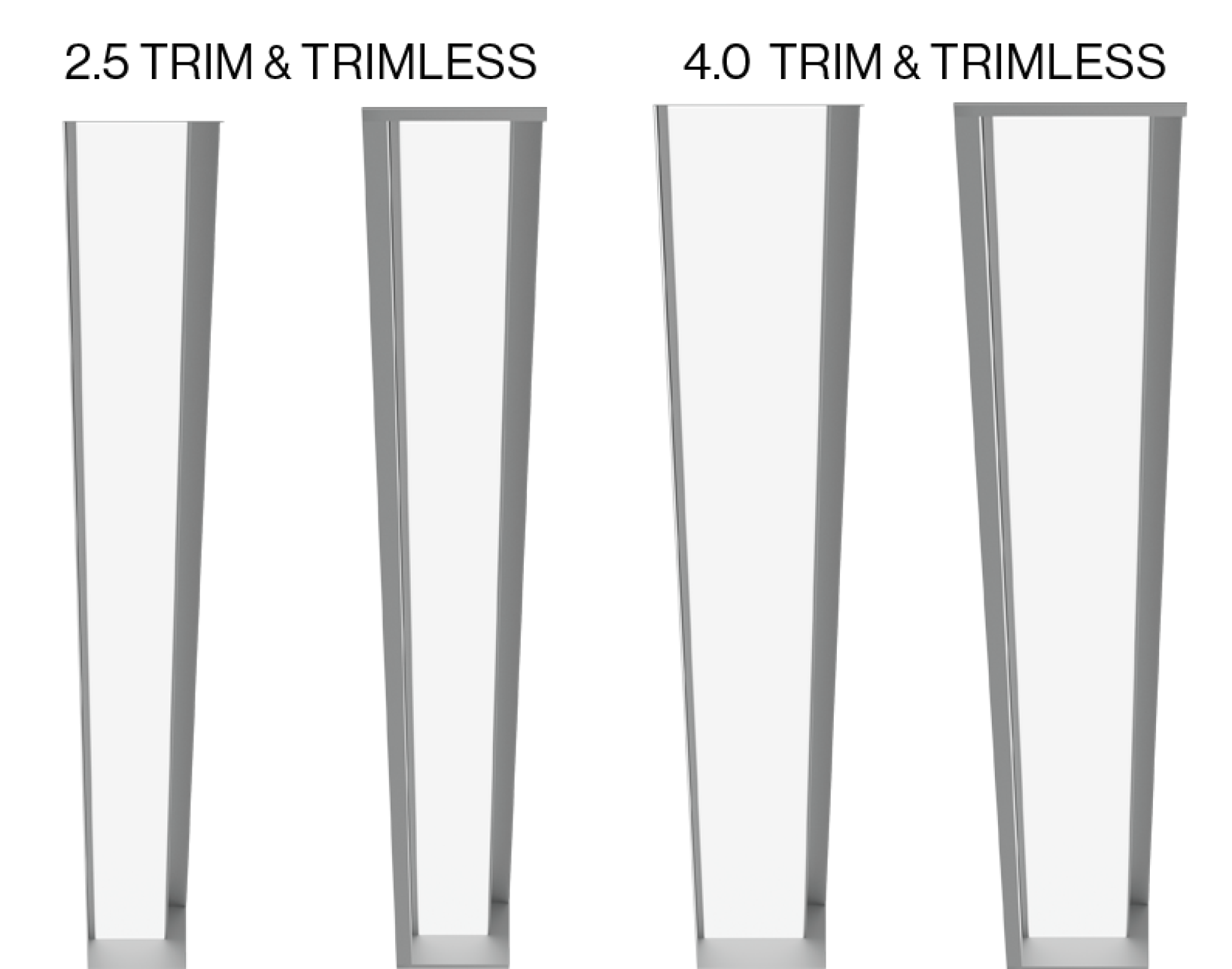

PERIMETER is available in two widths:
2.5 inches and 4 inches.

PERIMTETER provides even and discrete recessed options for a range of interiors. With multiple mounting types and a selection of pattern options, PERIMETER is a great choice for a clean and streamlined lighting solution..

LED technology you can trust

Wall Bracket

Wall bracket (every 4' O.C.) for easy installation. The bracket will be installed to the wall first and the fixture will easily attached to the bracket.

FIELD CUTTABLE

Field cuttable ends available with a telescope LED gear tray (when specified).

LED EFFICIENCY

Use of multiple LED rows and more LEDs for better efficiency and a smooth illuminated surface even when dimmed.

LED DRIVER

Integral and accessible drivers.

REGRESS TRIM

Field adjustable regress trim (available ranges are flush to 4 inch regress). Multiple trim options available.

CABLE SUSPENSION

Flexible aircraft cable suspension, 78" long. Luminaire height can be adjusted without tools. The suspension cables attach to the luminaire via spring clips and can be positioned freely.

Baso Flex

Flexibility when you need it

Factory-Cut linear fixtures can be precisely cut to the exact dimensions you request. Please contact customer service for run lengths in increments less than one inch. In addition, optional FLEX INSET sections make wall-to-wall applications easy thanks to their slideable LED insets and field-cuttable channels and covers. In order to match the exact length you require, you can slide one of two boards behind the desired cut length inside the channel. Then trim the channel and cover to the nearest foot length. To remove dark spots, slide the LED inset back to the end of your channel with a perfect fit. The FLEX capability comes standard in all BASO mounting types when using the direct opal lens.

Thee Widths

The PERIMETER includes three different sizes: 1.5", 2.5", 4.0" allow for insets to be installed in a variety of ways.

Along with these widths, PERIMETER also has the option of an additional 1" or 2" regression.

A new edition.

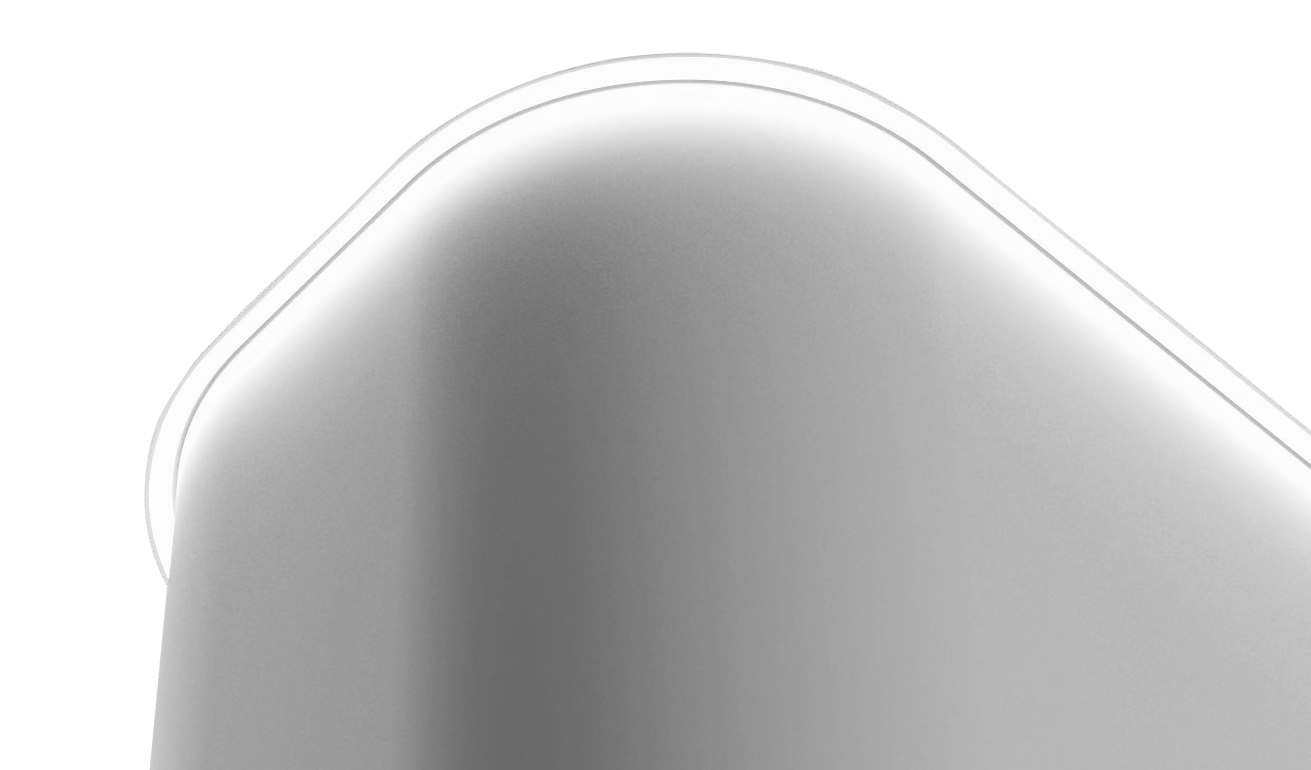

PERIMETER has a brand new option that reshapes the product line: CURVE 2.5 PERIMETER.

The new CURVE 2.5 option and its range of radii starts at 18 inches and is open to customization. This fixture can fit tight corners and trace light evenly through the space.

All with the same reliability and capabilities of PERIMETER 2.5.

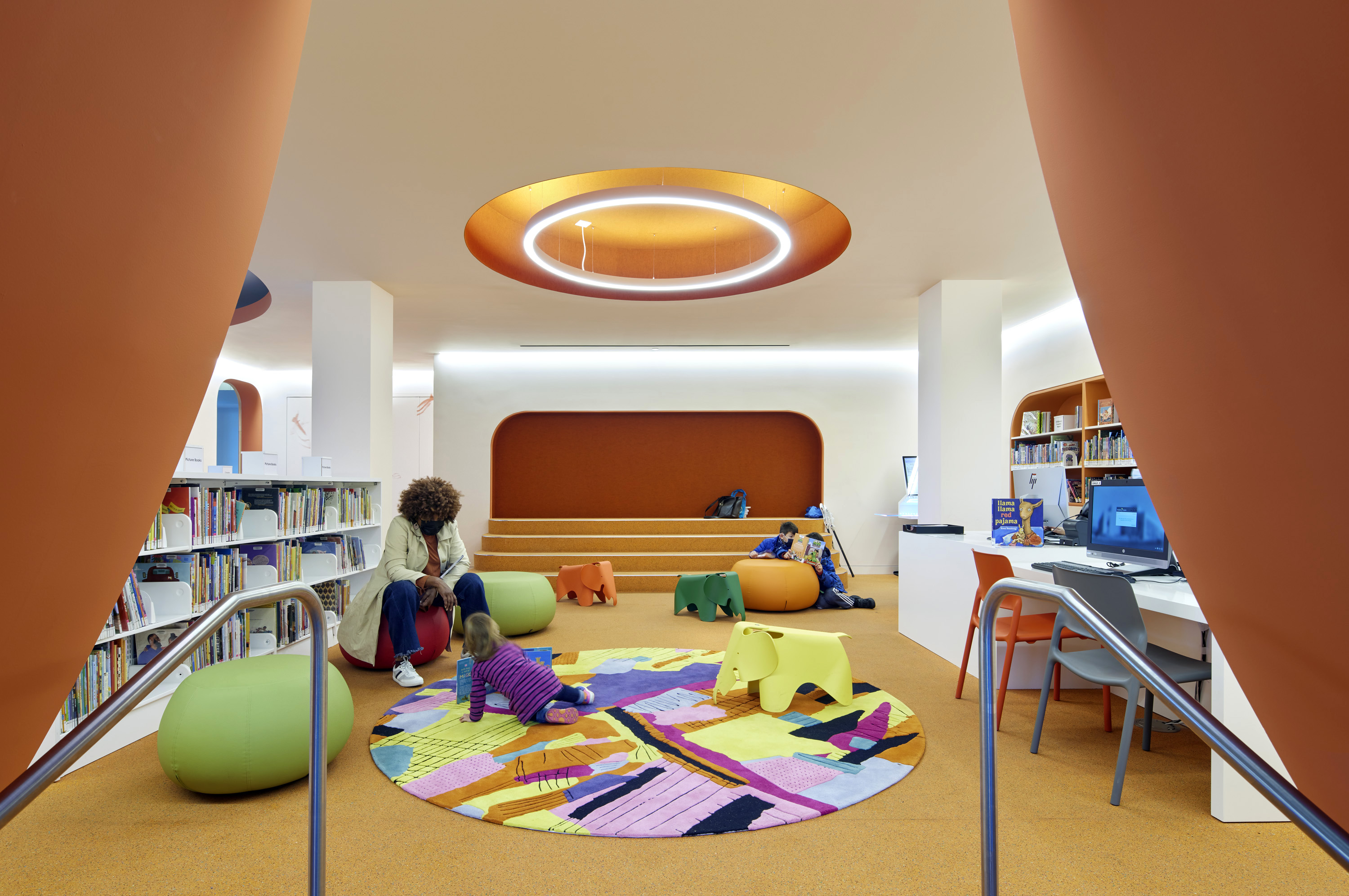

Adam Street Public Library

PERIMETER was employed at the Brooklyn Public Library location on Adams Street in New York City. Here, PERIMETER stretches doown the hallway discreetly yet effectively, adding bright light to the room while blending into the environment.

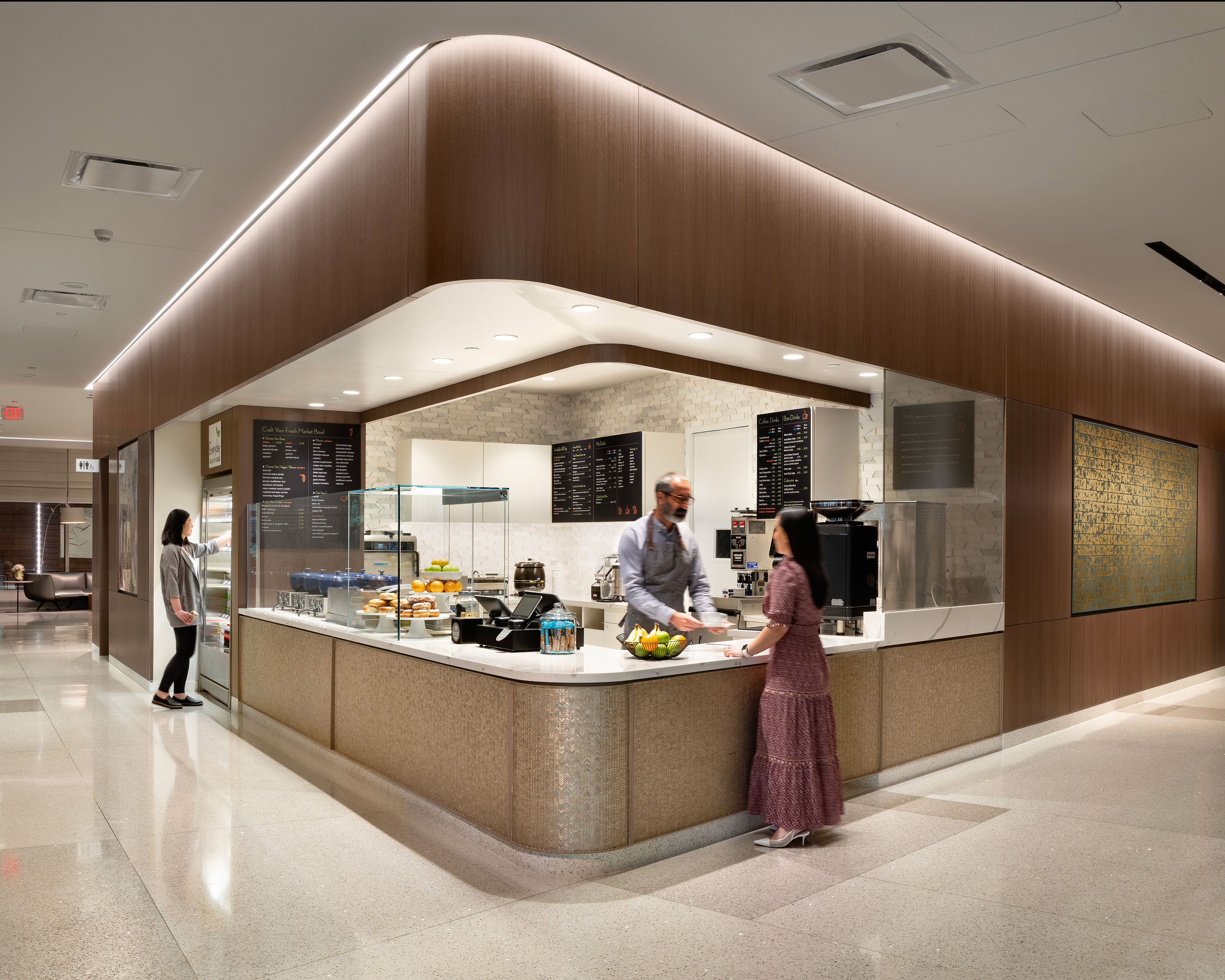

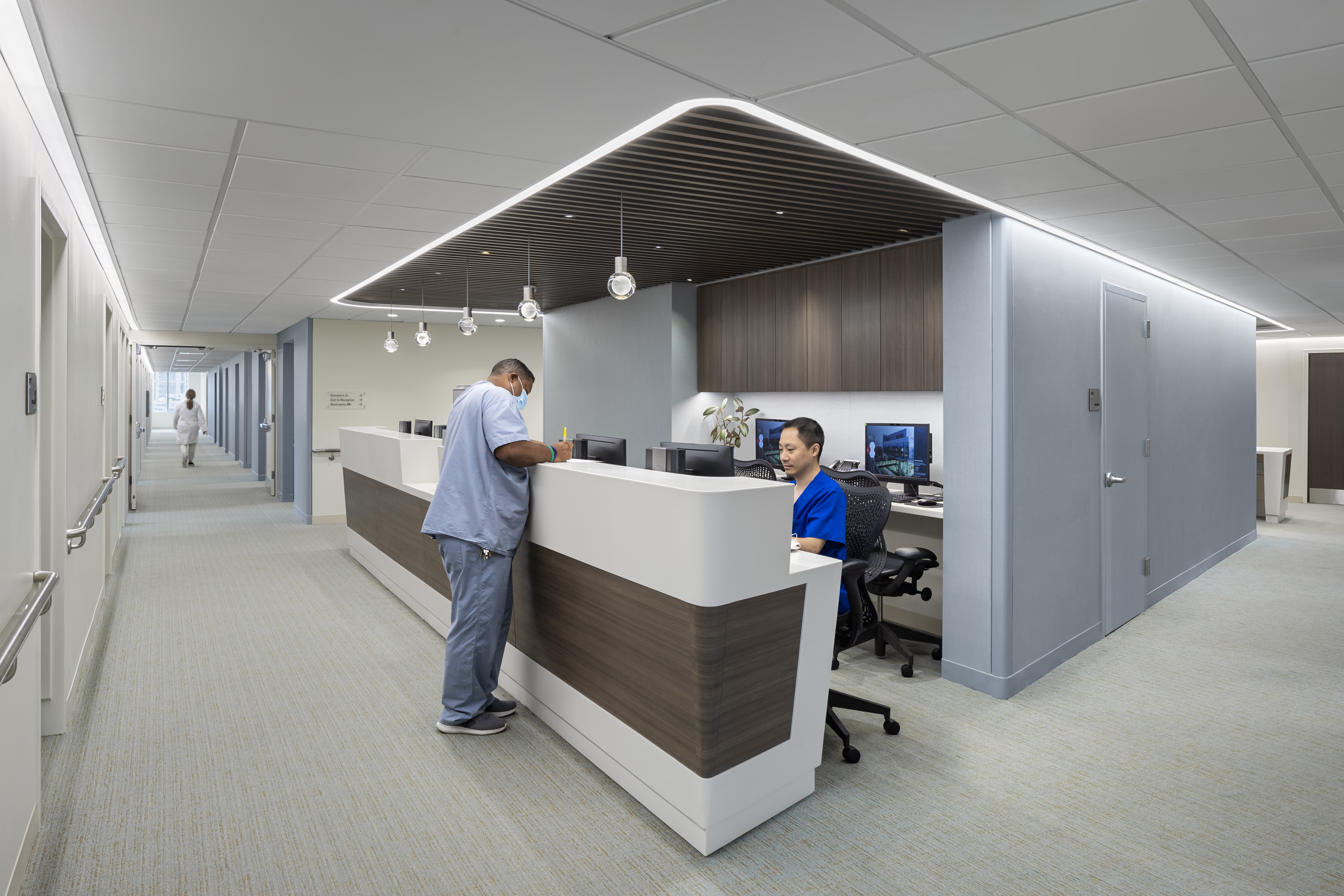

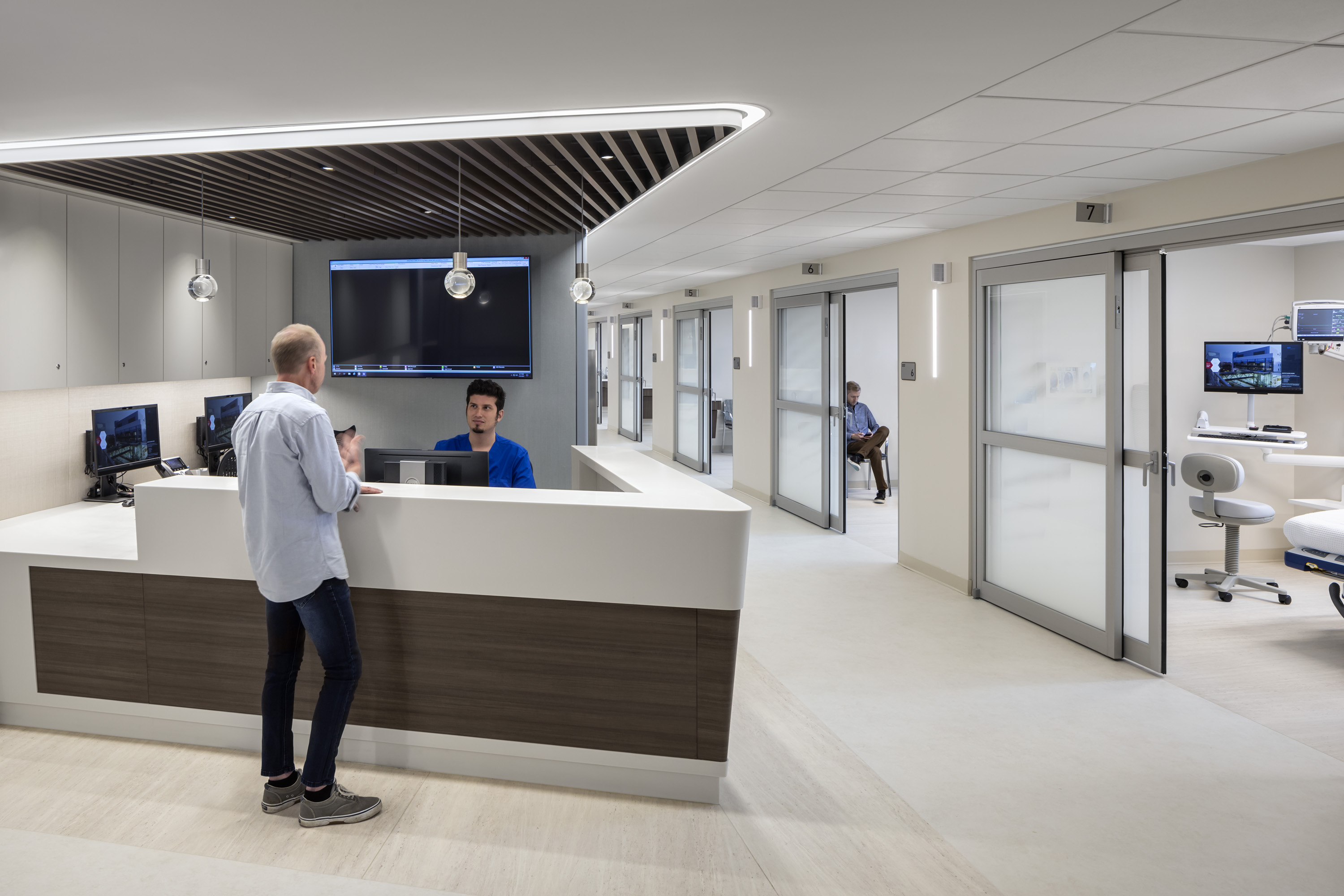

White Plains Hospital

PERIMETER was also utilized in the White Plains Hospital building.

Using PERIMETER's unique recessed finish, combined with curved fixtures, the floors, offices and labs of this impressive interior are finished with a simple, yet sophisticated lighting design.

Learn more about these project case studies below.

Project inspiration

White Plains Hospital

Adam Street Public Library
